Specifications
PVC window and door profile machine1.PVC and WPC profile making
2.suit for PVC,PP,PE wood plastic
3.High output 80-600kg/h

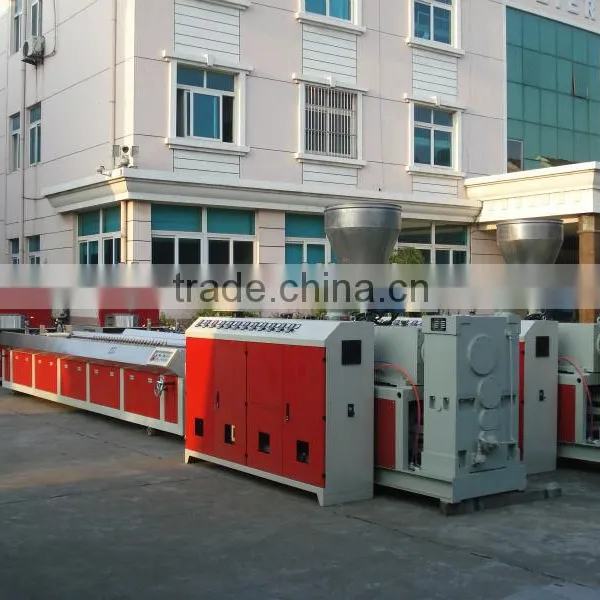

PVC window and door profile machine
The SJZ-series PVC,WPC window and door pfile machine is used for PVC ,Wood+PVC decorative profile ,foam boards extruding . It can produce profile and boards with different sizes of (width)300mm.
The whole production line can be purchased the SIEMENS PLC controly system and can realise the taotally automatic control.
It has the characters of low power consumption and high capacity, easy to operate and maintain.Alaso can runing24hours/day. We also offer one year quality guarantee which ensure the customers factory normal running.
The Whole lines include :
1.Hot and cool mixer machine unit .
2.Twin screw extruder machine .
3.Profile and boards mould .
4.Vacuum caliber moulding machine .
5.Haul-off and cutting machine .
6.Pile machine .
Type |
SJZ-55/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
Screw Diameter(mm) |
55/110 |
65/132 |
80/156 |
92/188 |
Screw Quantity(mm) |
2 |
2 |
2 |
2 |
Direction of Screw Rotation |
Different direction, Outward direction |
|||
Screw Speed(rpm) |
1-30 |
1-34.7 |
1-36.9 |
1-32.9 |
Effective Screw Working Length(mm) |
1200 |
1440 |
1800 |
2500 |
Main Motor Power(kw) |
22 |
37 |
55 |
90 |
Barrel Heating Power(kw) |
18 |
24 |
36 |
86.8 |
Output(kg) |
80-140 |
250-300 |
320-450 |
500-600 |
Center Height(mm) |
|
1000 |
|
1200 |
Weight(kg) |
3500 |
4000 |
5000 |
10000 |
Dimension(mm) |
3620×1050×2157 |
4235×1520×2450 |
4750×1550×2460 |
6725×1550×2841 |
Model |
BXY-90 |
BXY-150 |
BXY-240 |
BXY-300 |
Extruder model |
SJSZ-50/105 |
SJSZ-65/132 |
SJSZ-65/132 |
SJSZ-80/156 |
Moulding table length |
3000mm |
4000mm |
6000mm |
9000mm |
Max boards width |
90mm |
150mm |
240mm |
300mm |
Hauling speed |
0-8m/min |
0-8m/min |
0-6m/min |
0-4m/min |
Total power |
55kw |
90kw |
110kw |
220kw |
