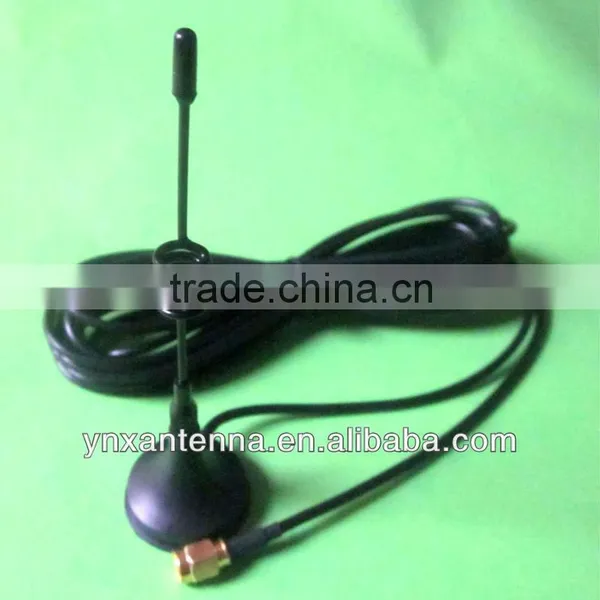

433mhz magnetic mount car antenna spring mount antenna

Name: 433mhz magnetic mount car antenna spring mount antenna
Brand: Yetnorson
Price: USD $0.9 - 1.8 / Piece

FOB Price

USD $0.9 - $1.8 / Piece

300 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Yetnorson

Model Number:

YNX-TQC-433-SMA

Packaging Details

One product with one PE bag packaging of magnetic mount car antenna

Product Description

Specifications

magnetic mount car antenna
1)Long distance transmission
2) Lower VSWR; Signal stability;
3)Competitive price

433mhz magnetic mount car antenna spring mount antenna

Electrical Specifications magnetic mount car antenna
Frequency Range (MHz)	433
Input Impendence (Ω)	50

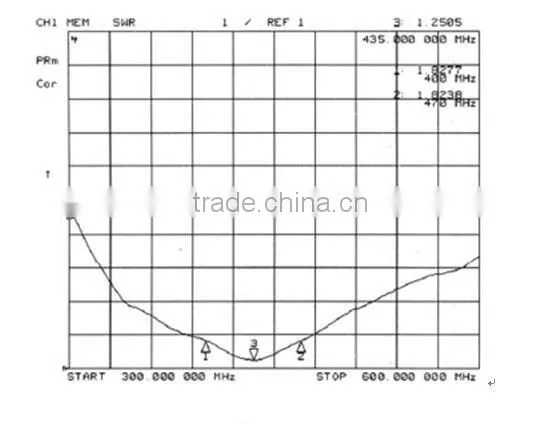

V.S.W.R	≤1.5
Gain (dBi)	3.5
Polarization Type	Vertical
Radiation Direction	Omnidirectional
Max Input Power (w)	50
Mechanical Specifications of magnetic mount car antenna
Antenna Length (mm)	140±3
Base Diameter(mm)	30
Cable (mm)	3M
Connect Type	SMA-Male
Mounting	Magnetic Base
Radome Color	Black
Cable (mm)	RG174
Suction(KG)	N35
Attachment	Welding

Refund & Replacement

1. We can guarantee the product quality within one years .

2. If parts cannot work, we will return payment or replacement to you.

3. Any items must be returned in their original condition to qualify for a refund or replacement.

4. The buyer is responsible for all the shipping cost incurred.

Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
