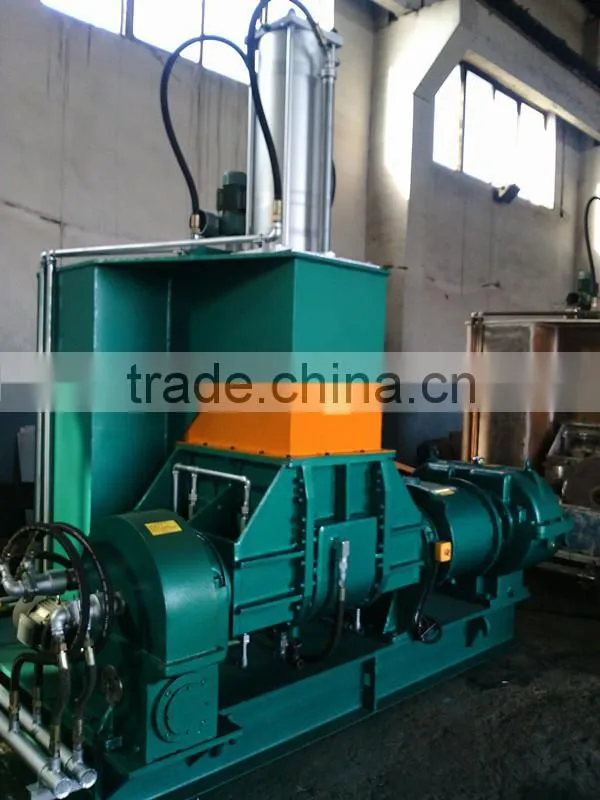

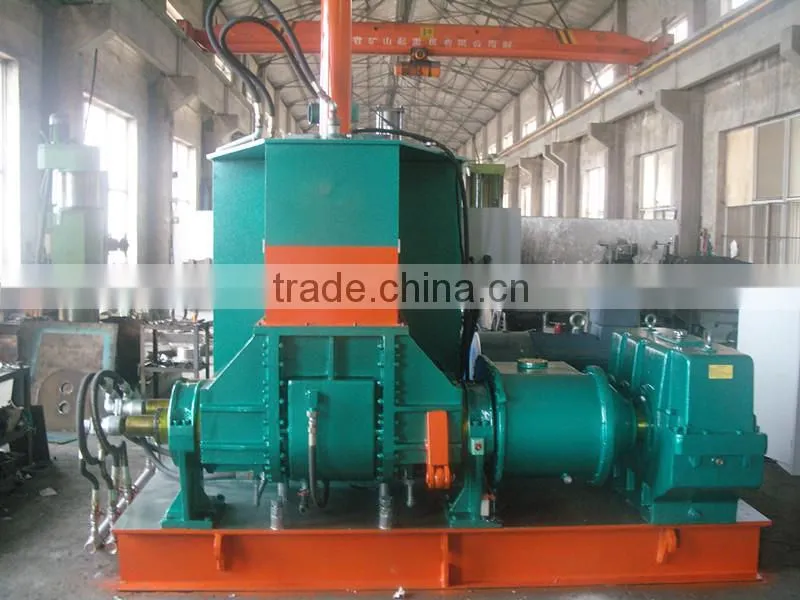

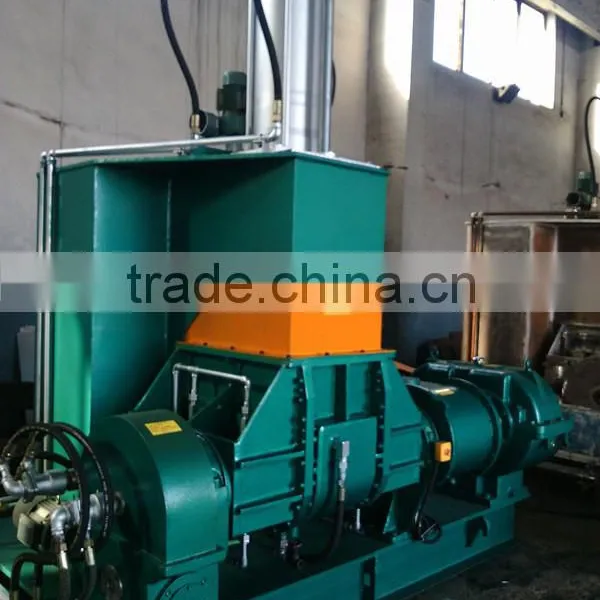

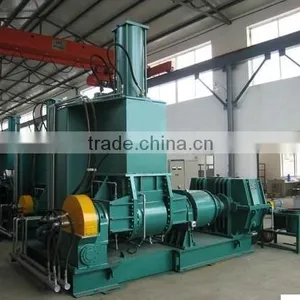

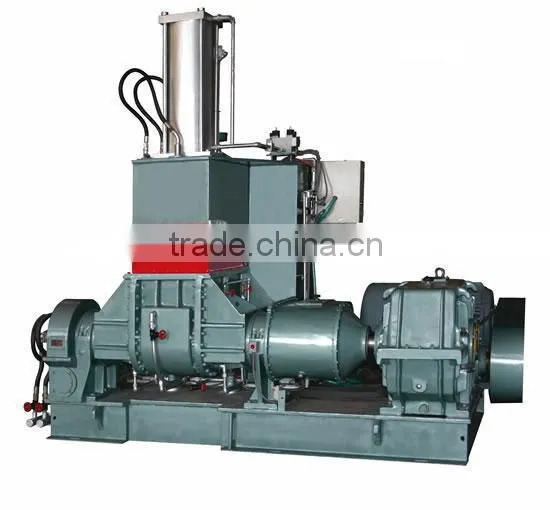

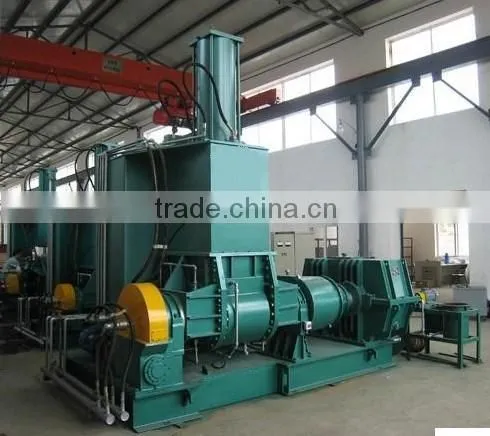

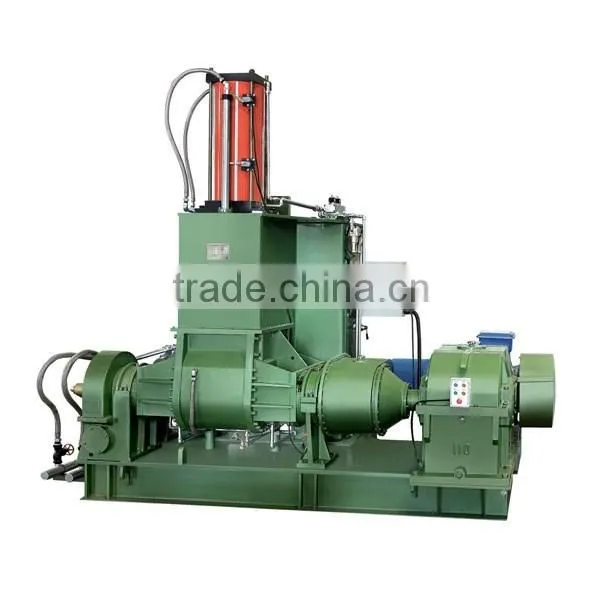

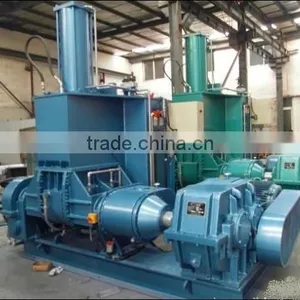

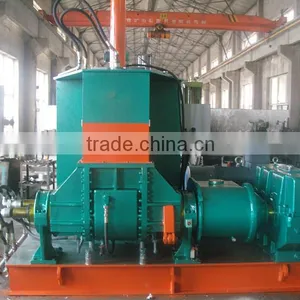

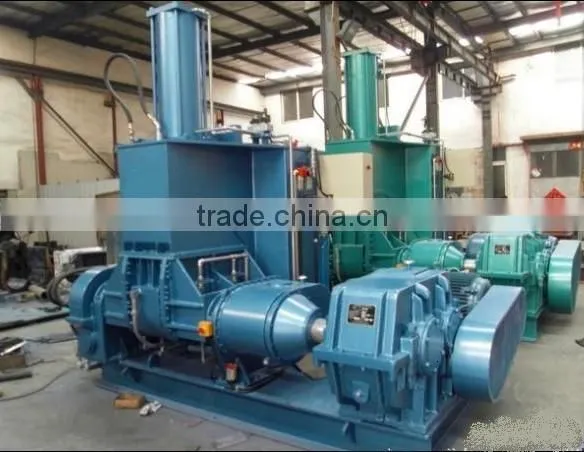

Rubber Kneader 110L
US$ 20,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Zhihong
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality China Supplier Dispersion Kneader X(S)N-75x30US$ 20,000 - 50,000MOQ: 1 Set -
Best Price Gold Supplier Rubber Kneader Rubber Internal Mixer Rubber Dispersion Mixer Banbury Rubber Mixer MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
Made in China New Technology Banbury Rubber Mixer Machine Rubber Kneader Rubber Internal Mixer Rubber Dispersion MixerUS$ 20,000 - 80,000MOQ: 1 Set
-
Made In China Dispersion Rubber Mixer Machine 10L 20L 35L 55L 75LUS$ 20,000 - 80,000MOQ: 1 Set
-
20L 35L 55L China Manufacturer Banbury Rubber Mixer MachineUS$ 20,000 - 80,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Zhihong
Model Number
X(S)N-110x30
Voltage
220V-460V
Power(W)
185kw
Dimension(L*W*H)
4075x2712x3580mm
Weight
14970kg
Certification
ISO9001 CE SGS
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
rubber kneader/ mixing mill/ Banbury Intensive mixer / dispersion mixer
Usage:
The rubber kneader is mainly used for plasticating and mixing rubber and plastics, and also applicable for mixing or kneading sticky materials.
Features:
- With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
- Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
- Surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
- Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber precessing technology.
- Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in a production line. The mixing chamber is able to turn forward by 140°around the front rotors to discharge and is easy for changing pigments and cleaning the chamber.
- Programmable logic controller(PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is procuded with serial interface of net.
Technical parameters:
model: X(S)N-110
Total kneading volume of mixing chamber 250L
Total mixing volume of mixing chamber 110L
Main motor power 185KW
Tilting Motor Power 7.5 KW
Tilting angle 140
Rotation speed of front/rear rotor: 30/24.5r/min
Compressed air pressure: 0.6-0.8MPa
Cooling water pressure: 0.2-0.4 MPa
Steam pressure for heating: 0.5-0.8 MPa
Overall size: 4075x2712x3580mm
Weight around 14970kg
