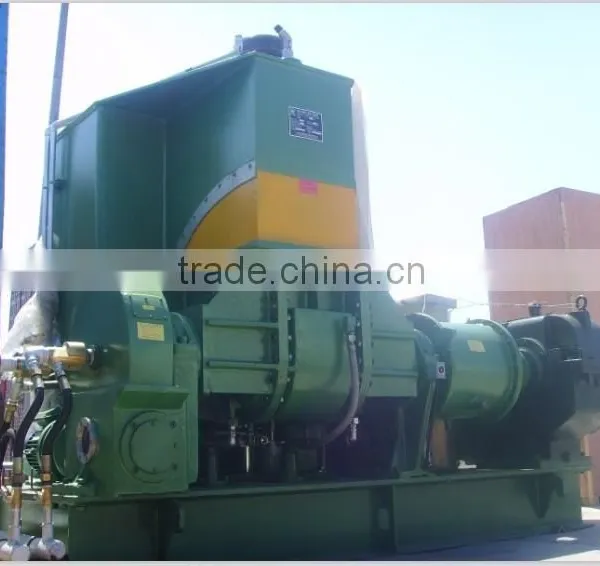

Made In China Dispersion rubber mixer machine 10L 20L 35L 55L 75L
Usage:
The rubber kneader is mainly used for plasticating and mixing rubber and plastics, and also applicable for mixing or kneading sticky materials.
Features:
- With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
- Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
- Surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
- Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber precessing technology.
- Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in a production line. The mixing chamber is able to turn forward by 140°around the front rotors to discharge and is easy for changing pigments and cleaning the chamber.
- Programmable logic controller(PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is procuded with serial interface of net.
1. Main Parameter .
1.1 the volume of mixing chamber : 45L
1.2 the mixing volume of chamber : 20L
1.3 the speed of rotor : 30/ 24.5r/min
1.4 The pressure of ram to rubber stock : 0.14~0.19 Mpa
1.5 The pressure of compression air : 0.5~0.8Mpa
1.6 The pressure of cooling water : 0.2~0.4Mpa
1.7 The pressure of heating steam : 0.5~0.8Mpa
1.8 The tilting angle of chamber : 140 degree.
1.9 The power part :
main motor :
the power: 30KW
the voltage : 380 V
the motor of tilting :
the power : 1.5KW
the voltage : 380 V
2.10 the total weight : ~4.5t
Technical specifications:
Model |
X(S)N- 1X12-58 |
X(S)N-3X32 |
X(S)N- 10X32 |
X(S)N-20X32 |
X(S)N- 35X30 |
X(S)N-55X30 |
X(S)N-75X30 |
X(S)N-110x30 |
X(S)N- 150x30 |
X(S)N- 200x30 |
X(S)N- 300x30 |
|
Total volume of mixing chamber (L) |
3 |
8 |
25 |
45 |
75 |
125 |
180 |
250 |
325 |
440 |
700 |
|
Working volume of mixing chamber (L) |
1 |
3 |
10 |
20 |
35 |
55 |
75 |
110 |
150 |
200 |
300 |
|
Driving motor power (KW) |
4 |
5.5 |
15 |
30 |
55 |
75 |
110 |
185 |
220 |
280 |
280/400 |
|
Tilting motor power (KW) |
MANUAL |
0.55 |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
7.5 |
7.5 |
Tilting angle (°) |
≤140 |
135 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
|
Rotational speed of the rotor (front/rear) r/min |
12-58 |
6-60 |
32/23.5 |
32/25 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
|
Pressure of compressed air (MPa) |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.6-0.8 |
0.6--08 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Capacity of compressed air(m3/min) |
≥0.3 |
≥0.3 |
≥0.5 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
≥2.0 |
≥2.0 |
≥2.0 |
Weight Kg |
800 |
2000 |
3300 |
4500 |
6500 |
7800 |
105000 |
14500 |
19500 |
22500 |
27500 |
What is your aftersale service?
1. Professional and quick response to your questions within 24 hours.
2. We will communicate with our production dept. and keep you updated about production progress in time.
3. Customized manufacture available for you.
4. Fast delievery to save your time.
5. Good after sale service will eliminate your worry.
6. Long guarantee period of the quality will reduce your cost and trouble.
7. Professional packing and ocean shipping control to make your order safe and sound.
What is your terms of payment?
Wire transfer: 30% advance by T/T, 70% balance by T/T before shipment.
Letter of credit: by irrevocable letter of credit at sight.
Western union: it is a fast and safe way.
What is trade terms acceptable?
We can do FOB, C&F and CIF for your choice.
