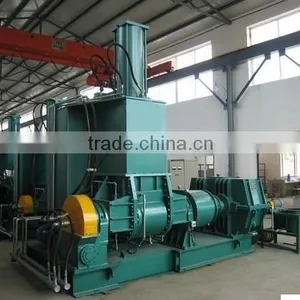

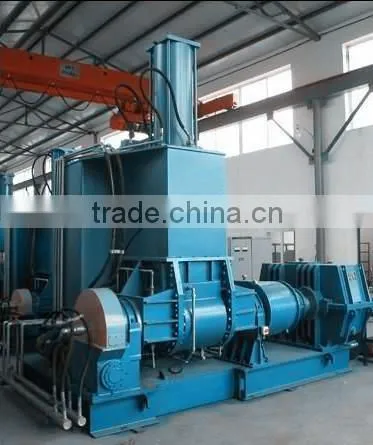

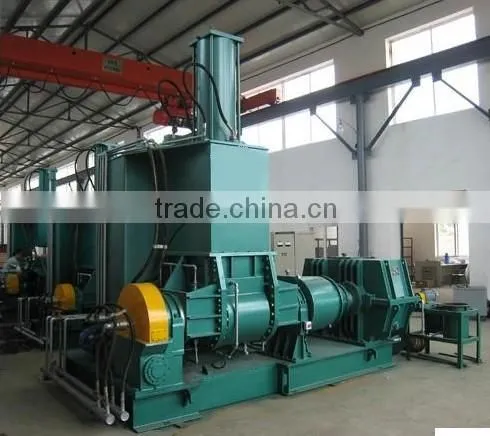

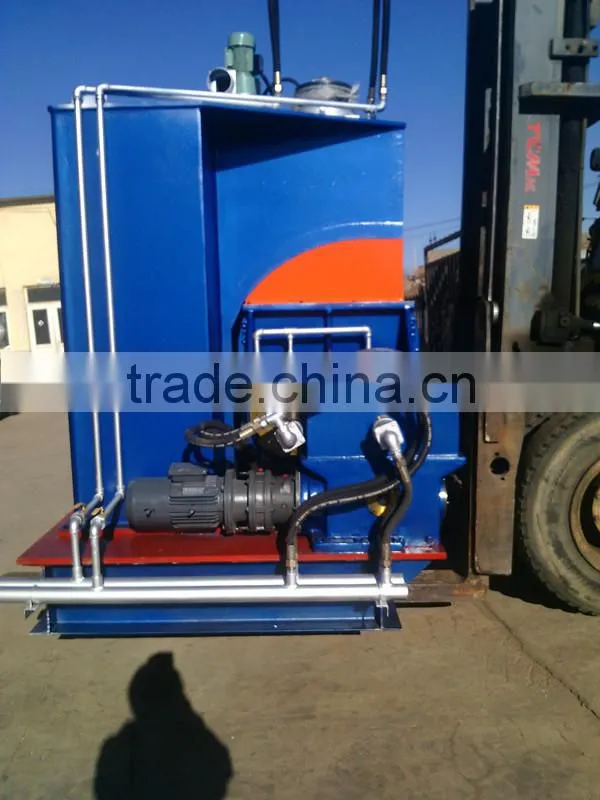

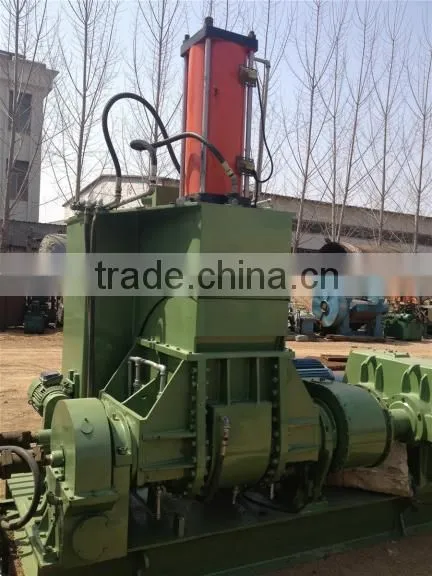

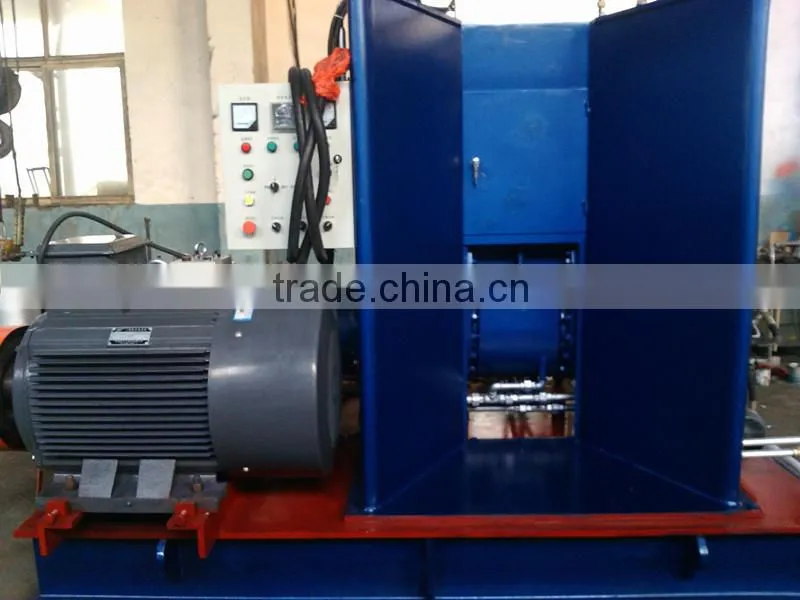

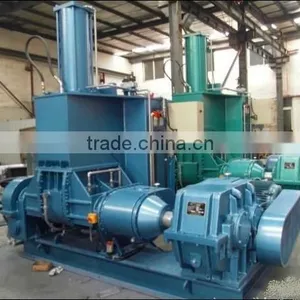

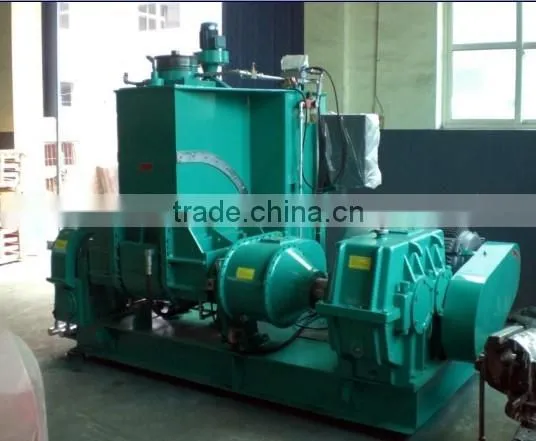

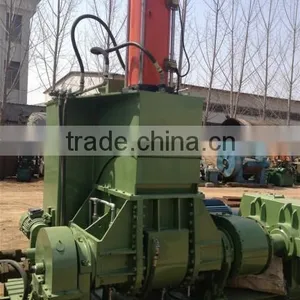

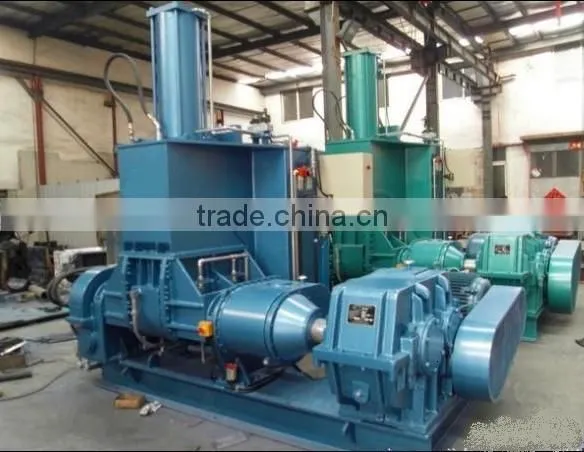

Made in China New Technology Banbury rubber Mixer machine Rubber Kneader rubber internal mixer Rubber Dispersion Mixer
Usage:
The rubber kneader is mainly used for plasticating and mixing rubber and plastics, and also applicable for mixing or kneading sticky materials.
Features:
- With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
- Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
- Surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
- Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber precessing technology.
- Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in a production line. The mixing chamber is able to turn forward by 140°around the front rotors to discharge and is easy for changing pigments and cleaning the chamber.
- Programmable logic controller(PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is procuded with serial interface of net.
Technical parameters:
model: X(S)N-55x30
pinching total cubage:125L
dence smelting tatal cubage:55L
main moter power:75kw
tilting moter power:2.2kw
tilting angle:140°
rotate speed of rotor axis(front/back):30/24.5 r/min
pressure of compressing air:0.6-0.8Mpa
pressure of cooling water:0.2-0.4Mpa
pressure of heating vapour:0.5-0.8Mpa
overall size:3300x1900x2900mm(lxwxh)
weight:7800kg
Parameter list:
|
X(S)N- 10×32 |
X(S)N- 20×32 |
X(S)N- 35×30 |
X(S)N- 55×30 |
X(S)N- 75×30 |
X(S)N- 110×30 |
||||||||
Total Volume of Mixing Chamber (L) |
25 |
45 |
75 |
125 |
180 |
250 |
||||||||
Working Volume of Mixing Chamber (L) |
10 |
20 |
35 |
55 |
75 |
110 |
||||||||
Driving Motor Power (KW) |
15 |
30 |
55 |
75 |
110 |
185 |
||||||||
Tilting Motor Power (KW) |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
||||||||
Tilting Angle |
140 |
140 |
140 |
140 |
140 |
140 |
||||||||
Rotational Speed Of Rotor (Front/Rear) (r/min) |
32/23.5 |
32/25 |
32/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
||||||||
Pressure of Compressed Air (MPa) |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
||||||||
Capacity of Compressed Air (m3/min) |
≥0.5 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
||||||||
Pressure of Cooling Water (Rubber Mixing) (MPa) |
0.2~0.4 |
0.2~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
||||||||
Pressure of Heating Steam( Plastics Mixing) (MPa) |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
||||||||
Overall Dimension(mm) |
L |
2,850 |
2,630 |
3,200 |
3,280 |
3,330 |
3,930 |
|||||||
W |
1,300 |
1,520 |
1,900 |
1,930 |
2,620 |
3,000 |
||||||||
H |
2,2280 |
2,550 |
2,950 |
3,070 |
3,340 |
3,660 |
||||||||
|
||||||||||||||
