Specifications
Perfect environmental protection solutions.New structural mechanical arm.
Export to many countries.
we have own factory
KT900DR Specifications
Model |
KT900DR |
Model |
KT900DR |
Working pressure |
0.7~2.4Mpa |
Sliding frame journey |
4300mm |
Drilling hole |
76~165mm |
Compensation length |
1200mm |
Drilling depth |
60mm |
Sliding frame swing |
Lleft50°Right35° |
Maximum pushing forward |
3600mm |
Drilling boom swing |
Left45°Right45° |
Pushing forward speed |
0.59m/s |
Sliding frame pitching |
135° |
Rock hardness |
f=6-20 |
Drilling boom pitching |
Up60°Down19° |
DTH |
ZD82A/ZD98AZD126B |
Whole machine weight |
7000kg |
Grade ability |
30° |
Dimension |
7200mm*2200mm*2100mm |
Walking speed |
2km/h 3km/h |
Engine manufacturer |
Cummins60kw/Yuchai70kw |
Turning torque |
4500Nm |
Fuel capacity |
175L |
Turning speed |
0-70rpm |
Dust removing system |
Hydraulic dry dust remoning system |
Lifting force |
2000kg.f |
|
|

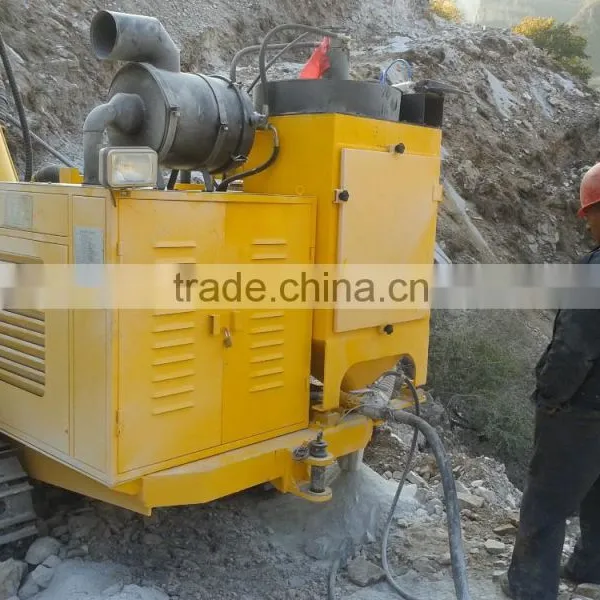

Perfect environmental protection solutions
l Equipped with impulse-type-stage dry dust collection system which owns national patent and blower motor imported from Finland,the machine can achieve the removal effect of up to 95%,which contributes to slagging, drilling speed, environmental protection and workers safety.

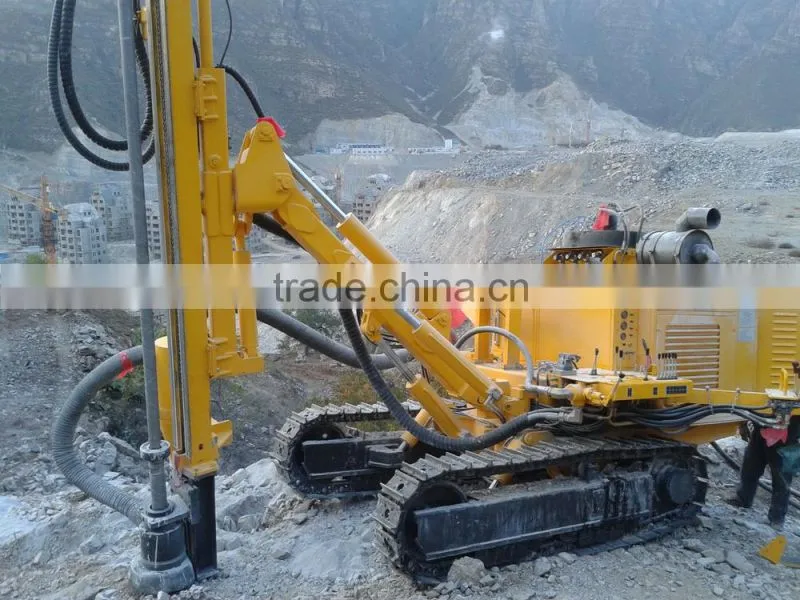

New structural mechanical arm
l The multi-angle functional drilling arm structure expands the scope of drilling angles and thus the wok scope through the five joining frames. It is able to drill horizontal hole forward and backward dip angle hole as well as lateral dip angle hole.
l The type of sliding frame made of special steel with high tensile strength can bear large torque and have excellent anti distortion ability.
l With the coordination of Mn steel slide and imported polyurethane slide block, the slide rail an avoid wearing and the drilling will be more accurate.
1. According to the technical drawings using standard material specification production
2. Color: Customized according to customer requirement
3. Provide samples and can produce products according to customer's sample.
