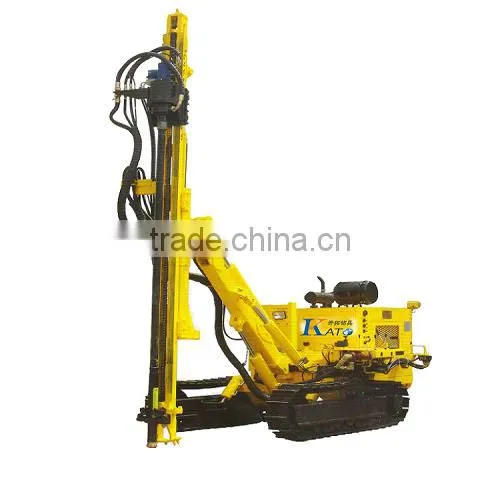

880 Hydraulic down-the-hole drill is a high performance Standard drill designed and developed by our company.it is used in complement with single-stage screw-type high pressure air compressor and the compressed air is only used in drilling. The diesel engine- hydraulic pump are taken as the power device: the Walking, rotary, propulsion, lifting of the drill, the positioning of hydraulic cylinder by swinging ,and other auxiliary action aewachieved through the hydraulic motor. Compared with that of the full pneumatic drill, the exhaust amount of auxiliary air compressor reduces by30%-50% ,The diesel oil consumption during drilling can be saved by 40%-50%.Used in complement with ZD series high-efficient energy saving type impactor, it will have high speed, low oil consumption and better economic performance ,so that you will see great reduction in your cost. The international procurement ensures excellent performance of the drill. The product is widely used in hydropower engineering, open bit mine, road building, ground source heat pump, defense engineering drilling and other drilling .blasting and excavating operations of the earthwork.
880 Specifications
Model |
ZY900DR |
Model |
ZY900DR |
Working pressure |
0.7~2.4Mpa |
Sliding frame journey |
4300mm |
Drilling hole |
76~165mm |
Compensation length |
1200mm |
Drilling depth |
60mm |
Sliding frame swing |
Lleft50°Right35° |
Maximum pushing forward |
3600mm |
Drilling boom swing |
Left45°Right45° |
Pushing forward speed |
0.59m/s |
Sliding frame pitching |
135° |
Rock hardness |
f=6-20 |
Drilling boom pitching |
Up60°Down19° |
DTH |
ZD82A/ZD98AZD126B |
Whole machine weight |
7000kg |
Grade ability |
30° |
Dimension |
7200mm*2200mm*2100mm |
Walking speed |
2km/h 3km/h |
Engine manufacturer |
Cummins60kw/Yuchai70kw |
Turning torque |
4500Nm |
Fuel capacity |
175L |
Turning speed |
0-70rpm |
Dust removing system |
Hydraulic dry dust remoning system |
Lifting force |
2000kg.f |
|
|
Perfect environmental protection solutions
l Equipped with impulse-type-stage dry dust collection system which owns national patent and blower motor imported from Finland,the machine can achieve the removal effect of up to 95%,which contributes to slagging, drilling speed, environmental protection and workers safety.
New structural mechanical arm
l The multi-angle functional drilling arm structure expands the scope of drilling angles and thus the wok scope through the five joining frames. It is able to drill horizontal hole forward and backward dip angle hole as well as lateral dip angle hole.
l The type of sliding frame made of special steel with high tensile strength can bear large torque and have excellent anti distortion ability.
l With the coordination of Mn steel slide and imported polyurethane slide block, the slide rail an avoid wearing and the drilling will be more accurate.
Place of Origin: Shandong China
Color: Customized according to customer requirementOur principle
1. According to the technical drawings using standard material specification production
2. Color: Customized according to customer requirement
3. Provide samples and can produce products according to customer's sample.
