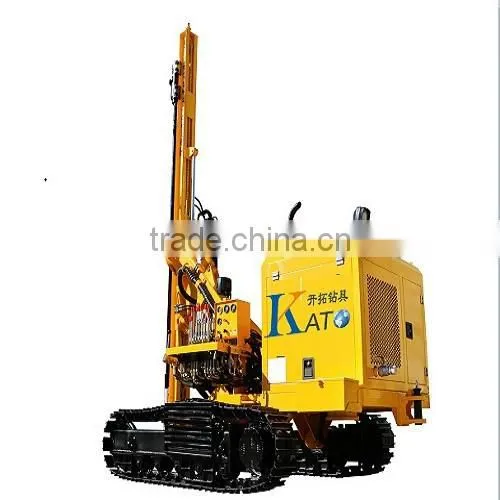

ZY 850MF belongs to multi-functional light type caterpillar hydraulic down-hole drill designed for the minimization of drilling cost. This drilling machine adopts powerful turbo changed engine and combines with new type and effective hydraulic system to reduce fuel consumption and improve fuel economy. The body is a compact design, can be operated flexibly has complete functions, is robust and durable as well as has stable performance under harsh conditions. It provides sustainable productivity for open-pit mining, base installation, building projects, tunnel drilling pre-splitting of dam foundation of hydropower station and etc.New ZY850MF gives customers more choice and maximizes customer value.
850MF Specifications
Model |
ZY900DR |
Model |
ZY900DR |
Working pressure |
0.7~2.4Mpa |
Sliding frame journey |
4300mm |
Drilling hole |
76~165mm |
Compensation length |
1200mm |
Drilling depth |
60mm |
Sliding frame swing |
Lleft50°Right35° |
Maximum pushing forward |
3600mm |
Drilling boom swing |
Left45°Right45° |
Pushing forward speed |
0.59m/s |
Sliding frame pitching |
135° |
Rock hardness |
f=6-20 |
Drilling boom pitching |
Up60°Down19° |
DTH |
ZD82A/ZD98AZD126B |
Whole machine weight |
7000kg |
Grade ability |
30° |
Dimension |
7200mm*2200mm*2100mm |
Walking speed |
2km/h 3km/h |
Engine manufacturer |
Cummins60kw/Yuchai70kw |
Turning torque |
4500Nm |
Fuel capacity |
175L |
Turning speed |
0-70rpm |
Dust removing system |
Hydraulic dry dust remoning system |
Lifting force |
2000kg.f |
|
|
Perfect environmental protection solutions

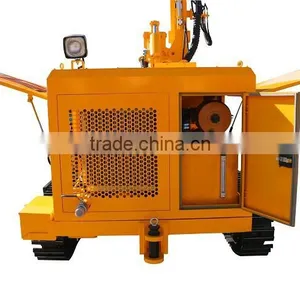

l Equipped with impulse-type-stage dry dust collection system which owns national patent and blower motor imported from Finland,the machine can achieve the removal effect of up to 95%,which contributes to slagging, drilling speed, environmental protection and workers safety.
New structural mechanical arm
l The multi-angle functional drilling arm structure expands the scope of drilling angles and thus the wok scope through the five joining frames. It is able to drill horizontal hole forward and backward dip angle hole as well as lateral dip angle hole.
l The type of sliding frame made of special steel with high tensile strength can bear large torque and have excellent anti distortion ability.
l With the coordination of Mn steel slide and imported polyurethane slide block, the slide rail an avoid wearing and the drilling will be more accurate.
