Back to Scoop Type Sewage Treatment Machine Aluminum Grille
US$ 2,000 - 20,000
/ Set
1 Set(Min. Order)
- qingdao
- T/T
You May Like
-
Nice Quality Membrane Bioreactor MBR Membrane Activated Clays for Recycling Waste Oil
-
Best Selling Products Membrane Bioreactor MBR Membrane Activated Clays for Recycling Waste Oil
-
China Supplier Membrane Bioreactor MBR Membrane Activated Clays for Recycling Waste Oil
-
China Supplier Mobile Domestic Sewage Treatment Plant
-
High Quality Mobile Domestic Sewage Treatment Plant
-
Membrane Bioreactor MBR Membrane Activated Clays for Recycling Waste Oil
Product Details
| Place of Origin | Shandong, China | Brand Name | telian | |
| Model Number | TLAF1001 |
Product Description
Back to Scoop Type Sewage Treatment Machine Aluminum grille
Product Description
Model | Install Angle | Power (Kw) | Screen Speed | Width (MM) | Ditch Width(mm) | Total Width(mm) |
TLAG-0300 | 60°~80° | 0.37~0.75 | 2M/min | 300 | 400 | 650 |
TLAG-0400 | 60°~80° | 0.37~0.75 | 2M/min | 400 | 500 | 750 |
TLAG-0500 | 60°~80° | 0.55~1.1 | 2M/min | 500 | 600 | 850 |
TLAG-0600 | 60°~80° | 0.55~1.1 | 2M/min | 600 | 700 | 950 |
TLAG-0700 | 60°~80° | 0.55~1.1 | 2M/min | 700 | 800 | 1050 |
TLAG-0800 | 60°~80° | 0.75~1.5 | 2M/min | 800 | 900 | 1150 |
TLAG-0900 | 60°~80° | 0.75~1.5 | 2M/min | 900 | 1000 | 1250 |
TLAG-1000 | 60°~80° | 0.75~1.5 | 2M/min | 1000 | 1100 | 1350 |
TLAG-1100 | 60°~80° | 1.1~2.2 | 2M/min | 1100 | 1200 | 1450 |
TLAG-1200 | 60°~80° | 1.1~2.2 | 2M/min | 1200 | 1300 | 1550 |
TLAG-1300 | 60°~80° | 1.5~3 | 2M/min | 1300 | 1400 | 1650 |
TLAG-1500 | 60°~80° | 1.5~3 | 2M/min | 1500 | 1600 | 1850 |
We supply carbon steel material and stainless steel material products .Different products different prices.

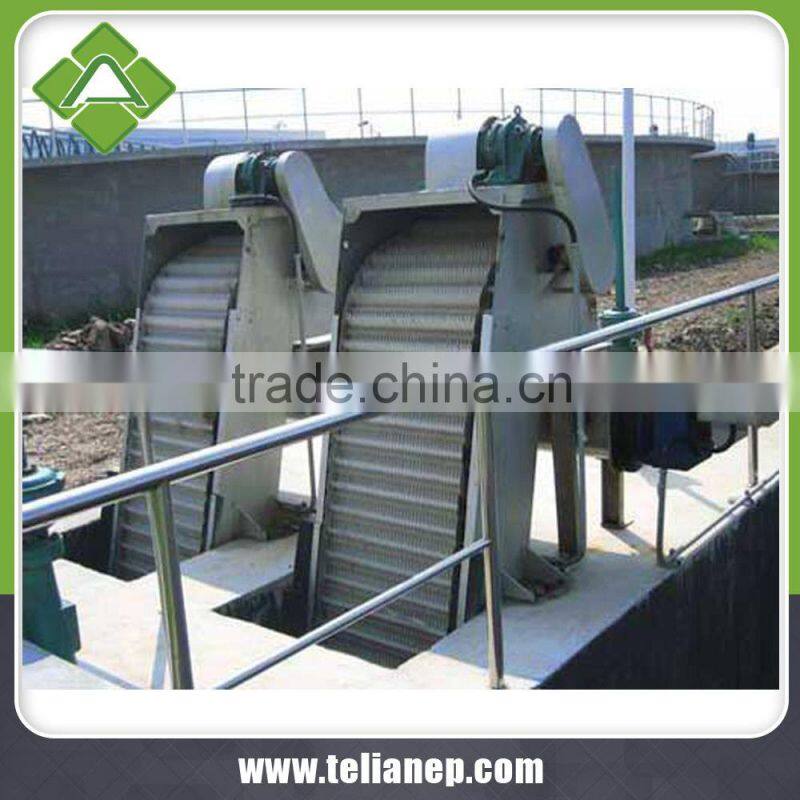

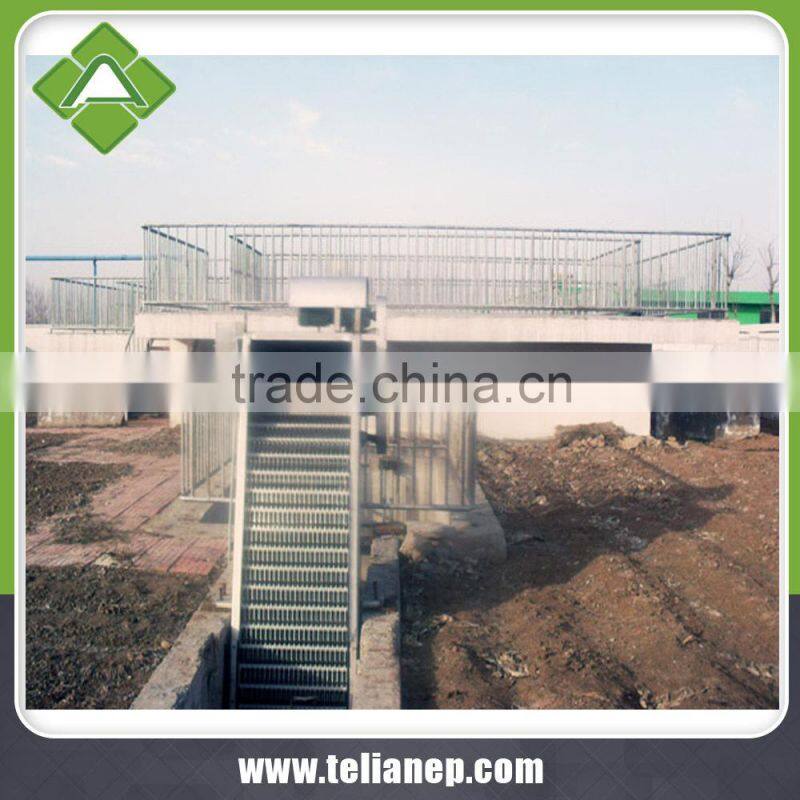

Product Pictures

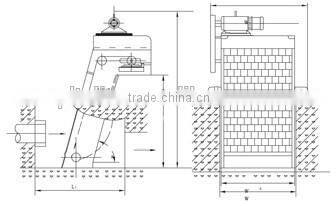

Design Drawing
Return sludge type grille decontamination machine fform by the frame body, sprocket, drag chain, transmission system, combination of harrow, harrow combination, underwater combination idler pulley, underwater vice gate, bars and other parts.
The main structure
Rotary machinery fine screen is a kind of special equipment used for water outlet keep the solid waste out at water outlet, it can automatically remove consecutive sewage in various shapes of floater.When grate chain in reducer drive mechanism driven by Ann work direction to do circular motion, the sink in the water flow through the harrow grid gap, tine grille to intercept the solid impurities in the water, and the movement of the tine it up, run up to the top with rake tooth chain, through the chain wheel and rail bending direction, make each group of relative motion between the tine, achieve since the qing dynasty, the most solid debris fall by its own gravity, other adhesion in the gate of clutter in reverse cleaning brush under the action of the tine of debris washed clean, and evenly into the screw conveyor.Because the tine grille chain is a closed loop mechanism, so it can work automatically and continuously, to remove the water floating debris constantly.
How it works
Harrow is fixed on the chain, the chain run along a guide rail, harrow bars from the posterior descending, running from the bottom to the front of the bars, bars will be stopped from bottom to top of floater along the baffle for mouth to discharge slag, slag discharge into the grid in the car.
Automatic control system for automatic control, can according to the time up, stop, happened torque can timely alarm and automatically stop immediately.So under unattended.
