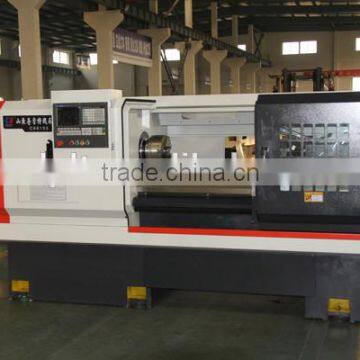

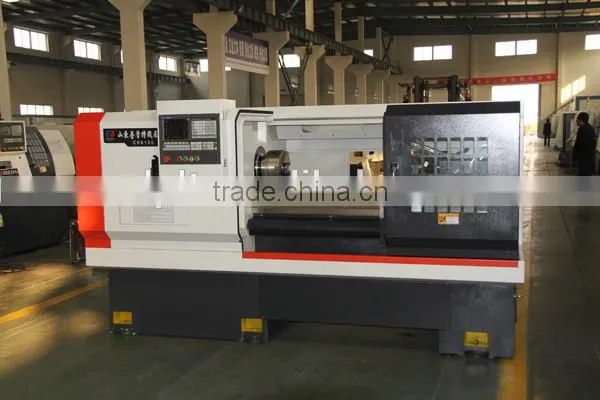

Help CenterCK6160 Cnc Machinery Lathe Machine
Related Products
cnc machinery lathe machine
CK6160 cnc machinery lathe machine specification
| cnc machinery lathe machine | CK6160 | |
| Capability | Max. swing dia. over bed | 600mm |
| Max. swing dia. over cross slide | 400mm | |
| Max. cutting dia. | 600mm | |
| Max. processing length | 850mm/1500mm | |
| Spindle | Go-ball dia. of spindle | 130mm |
| Spindle taper | MT6# | |
| Spindle speed | 80-800/80-1200 rpm | |
| Spindle nose | A2-8/11 | |
| Main motor power(Variable frequency) | 11Kw | |
| Transducer | 15Kw | |
| X/Z axis | X/Z travel | 300/1550mm |
| X/Z mini setting unite | 0.001mm | |
| X/Z motor torque | 6/6N.m | |
| X/Z repeatability | ||
| X/Z rapid feeding speed | 5/10 m/min | |
| Tailstock | Tailstock sleeve dia. | 75mm |
| Tailstock sleeve strock | 140mm | |
| Tailstock taper | MT5# | |
| Tool holder | Type | 4-position electric |
| Tool bar size | 25*25mm | |
| Tool holder repeatability | 0.004 | |
| Dimension | 3600*1300*1680mm | |
| Net weight | 3100kg | |
CK6160 cnc machinery lathe machine standard accessories
plete coolant system for ready use
plete lubrication system for ready use
3. LED work light
4. 10" three jaw manual chuck
5. 4 tool electric tool carrier
6. manual tailstock
7.MPG
8. tool box and tools
CK6160 cnc machinery lathe machine optional accessories
1. automatic feeding device for long bar work piece
2. chip conveyor
3. hydraulic chuck, hydraulic station, rotaty cylinder ( solid type or hollowed type)
4. steady rest
5. fellow rest
6. 6 tool electrical tool carrier
CK6160 cnc machinery lathe machine packing and shipping
Before order, please kindly inform the following,
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings
3. Need cutters, clamping set or not
4.Customer service
Click " send " now and learn more about our products.
