large hole , cnc lathe machining

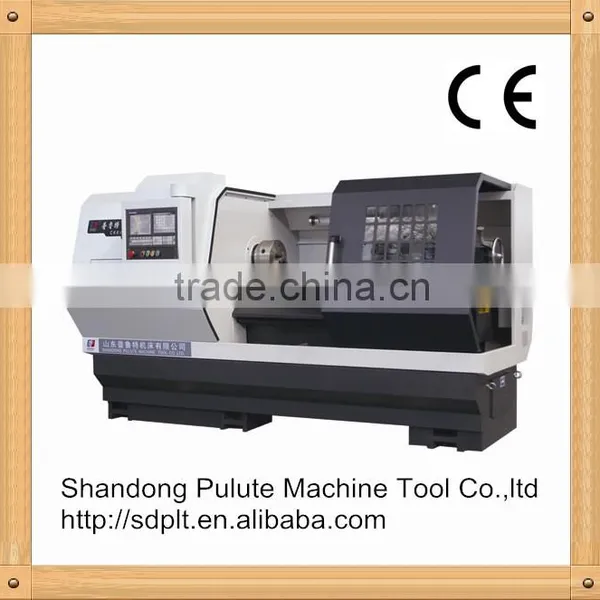

1. large bore 130mmm Chinese lathe CK6160 specification
| cnc lathe machining | CK6160 | |
| Capability | Max. swing dia. over bed | 600mm |
| Max. swing dia. over cross slide | 400mm | |
| Max. cutting dia. | 600mm | |
| Max. processing length | 850mm/1500mm | |
| Spindle | Go-ball dia. of spindle | 130mm |
| Spindle taper | MT6# | |
| Spindle speed | 80-800/80-1200 rpm | |
| Spindle nose | A2-8/11 | |
| Main motor power(Variable frequency) | 11Kw | |
| Transducer | 15Kw | |
| X/Z axis | X/Z travel | 300/1550mm |
| X/Z mini setting unite | 0.001mm | |
| X/Z motor torque | 6/6N.m | |
| X/Z repeatability | ||
| X/Z rapid feeding speed | 5/10 m/min | |
| Tailstock | Tailstock sleeve dia. | 75mm |
| Tailstock sleeve strock | 140mm | |
| Tailstock taper | MT5# | |
| Tool holder | Type | 4-position electric |
| Tool bar size | 25*25mm | |
| Tool holder repeatability | 0.004 | |
| Dimension | 3600*1300*1680mm | |
| Net weight | 3100kg | |
2.CK6160 CK6160 cnc lathe machining feature
a.High position accuracy to --spindle adopts high presition rolling bea ring to support, repeated position accuracy is high
b.High dynamic performance and high repeated position to 0.012mm--machine layer board / carriage adopts high presition ball screw in both horizontal and vertical direction.
c.High and long term stability--machine cast is excellent one piece resin sand cast of hardness over HRC45 DEGREES after HRC hardening ensures machine long term stability.
d.High powerful turning performance--high strength base widened carriage are designed considering vibration during working.
4.Warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea
agent
doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.We offer best agent price and distributer price.
5. CK6160 CK6160 cnc lathe machining standard accessories
electric 4-position tool turret.
10" manual chuck.
manual tailstock .
6. CK6160 CK6160 cnc lathe machining optional accessories
1.Three-jaw hydraulic chuck, hydraulic station, hydraulic rotary oil cylinder.
2.hydraulic tailstock.
3.6 tools or 8 tools electric tool post.
ntroller: Fanuc. Siemens, Mitsubishi, GSK,LNC.
7.Original Manufacture Producing Process
1Machine drawing → 2Wood model→3Casting→4Casting processing and assebling, machine parts assebling, electric assembling→5Metal sheet powder coating and assembling→6.Machine adjusting QC is from the begining to the end.
Befre order, please tell your work piece max. diameter, max. length, material or pass your work piece drawings.
Click " send " now and learn more about our products.
