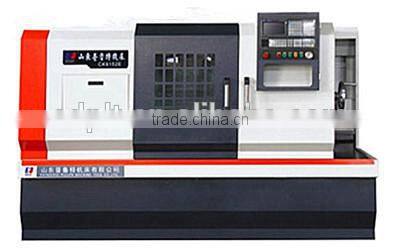

large hole torno mecanico
CK6160 large hole torno mecanico specification
large hole torno mecanico |
CK6160 | |
| Capability | Max. swing dia. over bed | 600mm |
| Max. swing dia. over cross slide | 400mm | |
| Max. cutting dia. | 600mm | |
| Max. processing length | 850mm/1500mm | |
| Spindle | Go-ball dia. of spindle | 130mm |
| Spindle taper | MT6# | |
| Spindle speed | 80-800/80-1200 rpm | |
| Spindle nose | A2-8/11 | |
| Main motor power(Variable frequency) | 11Kw | |
| Transducer | 15Kw | |
| X/Z axis | X/Z travel | 300/1550mm |
| X/Z mini setting unite | 0.001mm | |
| X/Z motor torque | 6/6N.m | |
| X/Z repeatability | ||
| X/Z rapid feeding speed | 5/10 m/min | |
| Tailstock | Tailstock sleeve dia. | 75mm |
| Tailstock sleeve strock | 140mm | |
| Tailstock taper | MT5# | |
| Tool holder | Type | 4-position electric |
| Tool bar size | 25*25mm | |
| Tool holder repeatability | 0.004 | |
| Dimension | 3600*1300*1680mm | |
| Net weight | 3100kg | |
CK6160 large hole torno mecanico standard accessories
plete coolant system for ready use
plete lubrication system for ready use
3. LED work light
4. 10" three jaw manual chuck
5. 4 tool electric tool carrier
6. manual tailstock

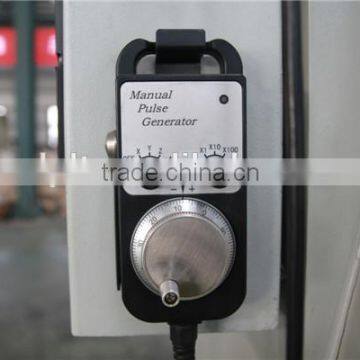

7.MPG
8. tool box and tools
CK6160 large hole torno mecanico optional accessories
1. automatic feeding device for long bar work piece
2. chip conveyor
3. hydraulic chuck, hydraulic station, rotaty cylinder ( solid type or hollowed type)
4. steady rest
5. fellow rest
6. 6 tool electrical tool carrier
CK6160 large hole torno mecanico packing and shipping
1.Engineers are available to do oversea machinery service. In some countries, we have oversea
agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3.Training in our factory and on-line are free of cost.
4.Warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.Best agent price and distributer price are offered.
Before order, please kindly inform the following,
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings
3. Need cutters, clamping set or not
4.Customer service
Click " send " now and learn more about our products.
