C0632A Universal Lathe Machine

C0632A Universal Lathe Machine thumbnail-1
C0632A Universal Lathe Machine thumbnail-2
C0632A Universal Lathe Machine thumbnail-3
C0632A Universal Lathe Machine photo-1
C0632A Universal Lathe Machine photo-2
C0632A Universal Lathe Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Shandong Pulute Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 330mm
Place of Origin Shandong, China
Brand Name PULUTE
Model Number C0632A
Voltage 380v
Power(W) 1.5 Kw
Dimension(L*W*H) 800*600*600mm
Weight 400KG
Certification CE, ISO9001, ISO14001
After-sales Service Provided Engineers available to service machinery overseas

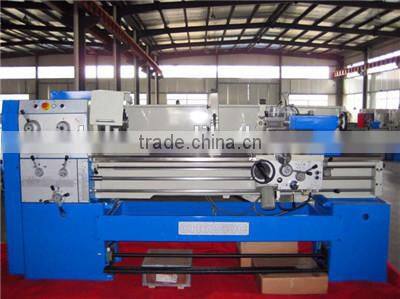

universal lathe machine

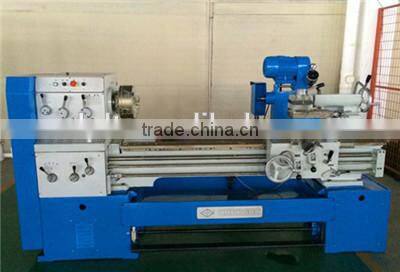

C0632A universal lathe machine

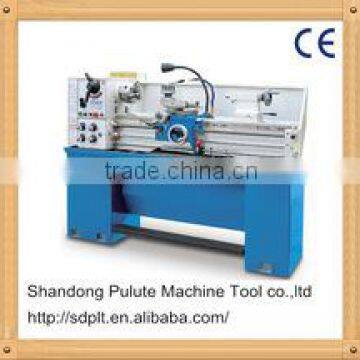

C0632A universal lathe machine

1. universal lathe machine C0632A features

   1. Hardened and ground headstock gears
   2. Gapped bedway
   3. Adjustable headstock bearing
   4. Oil-bath lubricated main drive and feed gear
   5. Cast iron bed, double v-guide, hard and ground
   6. Shift gear system to change feed direction
   7. Interlocking feature prevents simutaneous advance of leadscrew and feedshaft

2. universal lathe machine   specification C0632A

machine model
universal lathe machine   C0632A
Swing over bed 330mm
Swing over cross slide 198mm
Swing in gap diameter 476 mm
Swing in length 210 mm
Center height 166 mm
Spindle bore 38 mm
Spindle nose D1-4"
Threads imperial pitches 36 Nos.8-112 T.P.I.
Threads metric pitches 28 Nos.0.2-5mm pitch
main motor 1.5KW 3PH or 1PH


3.Standard accessories
1.the sleeve (Morse 5/3#),

2 fixed center: Morse 3#
3.3-jaw chuck

4.V type belt (A762 2 pieces)
5. Metric gear (m=1.25......8 pieces)

6. Kit and tools

7. The oilgun



4. Optional accessories
1.4-jaw chuck:200mm

2.face plate:320mm
3.steady rest

4.Follow rest

5. Back plate

6. An oil plate
7. The foot of the bed

8. The brake device
9. Cooling system

10. Quick change tool
11. Taper turning attachment

12 driving plate
13 chuck cover


Click SEND now and learn more about our products.

C0632A universal lathe machine
