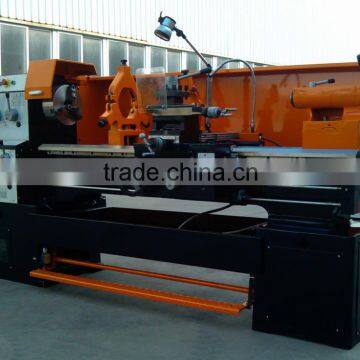

CH6240C Metal Spinning Lathe

Name: CH6240C Metal Spinning Lathe
Brand: PULUTE
SKU: 115203083
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Shandong Pulute Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 400MM

Place of Origin Shandong, China

Brand Name PULUTE

Model Number CH6240C

Voltage 380V

Power(W) 5.5KW

Dimension(L*W*H) 345*115*170cm

Weight 2650kg

Certification CE, ISO9001, ISO14001

After-sales Service Provided Engineers available to service machinery overseas

metal spinning lathe

1. CH6240C metal spinning lathe specification

capacity	metal spinning lathe	CH6240C
	Swing over bed	400mm
	Swing over cross slide	325mm
	Max.swing over gap	630 mm
	Effective length of gap	260 mm
	Center Distance	1000mm/1500/2000mm
	Bed Width	330 mm
head stock	Spindle hole	80 mm
	Spindle nose	ISO-C8 or D8
	Spindle taper	Metric 85 mm
	Spindle speed(Number)	(15steps)24-1600rpm
threads	Longitudinal feeds range	66kinds 0.072-4.038mm/rev
	Cross feeds range	66kinds 0.036-2.019mm/rev
	Metric threads range	66kinds 0.5-28mm
	Inch threads range	66kinds 1-56inch
	Module threads range	33kinds 0.5-3.5mπ
	Diametric threads range	33kinds 8-56D.P
carriage	Max. Travel of top slide	130 mm
	Max. Travel of cross slide	300 mm
	Max. Size of tool shank	25*25 mm-2
tailstock	Dia.of tailstock sleeve	65mm
	Taper of tailstock sleeve	MT5
	Max.travel of tailstock	120mm
motor	Main drive motor	5.5KW or 7.5KW
	Rapid traverse motor optional	250W
	Coolant pump motor	125W
Dimension	1000mm CH6236F	245115170cm
	1500mm CH6236F	288115170cm
	2000 mm CH6236F	345115170cm
weight	1000mm NW/GW	1700/2200kg
	1500mm NW/GW	1900/2400kg
	2000 mm NW/GW	2150/2650kg
