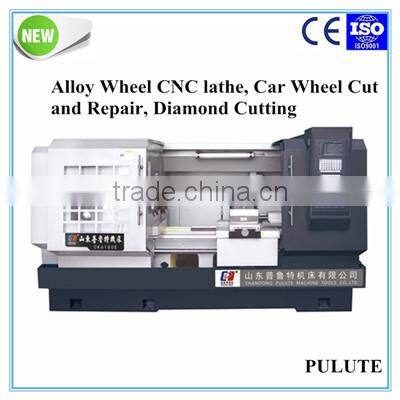

Help CenterCK6170 Alloy Wheel Straighten Machine
Related Products
alloy wheel straighten machine
max. swing over bed |
mm |
700 |
max. wheel diameter |
mm |
700 (28") |
chuck size |
mm |
600 (24") |
swing over cross slide |
mm |
450 |
spinlde bore |
mm |
83 |
spindle speed |
rpm |
150-2000 |
X travel |
mm |
350 |
X/Z position accuracy |
mm |
0.01/0.015 |
X/Z repeatability |
mm |
0.012/0.013 |
X/Z feed motor torque |
N.m |
6/10 |
X/Z fast feeding speed |
m/min |
8/10 |
main motor power |
kw |
7.5 |
tool size |
mm |
25*25 |
Function of AWR2840 CK6170 alloy wheel straighten machine
1. CNC lathe repairs and processes the car wheel automatically and precisely.
2. Digital probe measures the wheel surface, collets data, optimizes the program.
More wheel hub repair lathe available. If you need other models, please contact us.
Configuration of AWR2840 CK6170 alloy wheel straighten machine
1. Syntec 6TA NC system

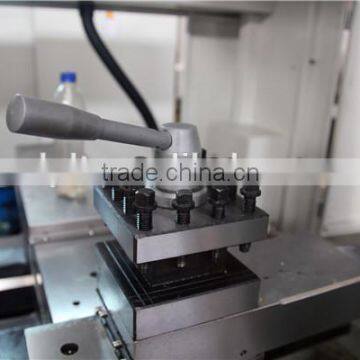

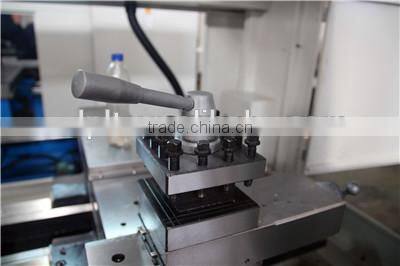

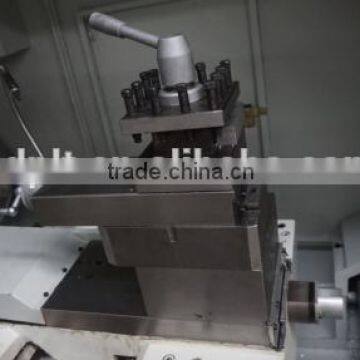

2. 4 position adjustable manual tool post
3. Repair 5-28 inch alloy wheel

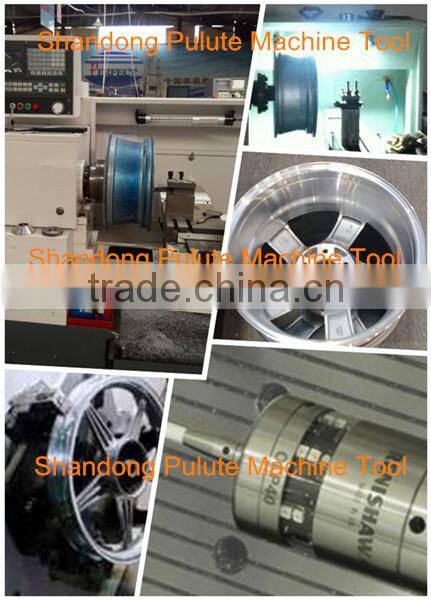

4. Detection Touch Probe ( Pioneer Sensing Probe)
5. stepless spindle speed 150-2000RPM

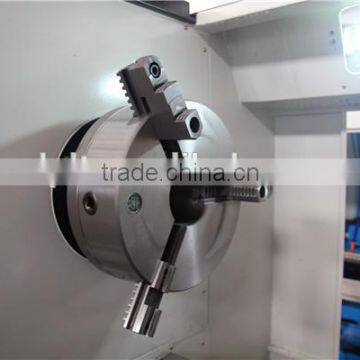

6. 12" (320mm) three-jaw self-centering manual chuck. Jaws could be removed through bults.
7. one set of lengthen unti-jaws could clamp max. 27" diameter car wheel.
8. CE, ISO9001, ISO14001 certificates, alibaba trade assurance
9. Automatic integrated lubrication system
10. complete coolant system
11. advanced LED lighting system
12. full enclose cover (Security Guard Door with opto-electronic switch)
13. Electric cabinet with phase rotation relay
14. The power switch has over-load and short circuit protection for machine.

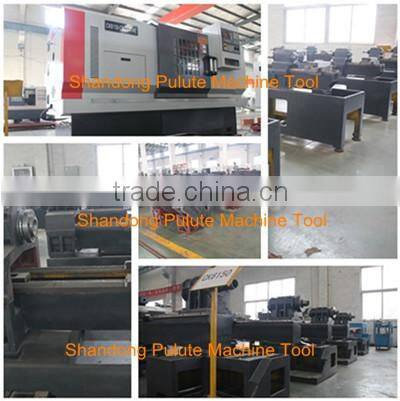

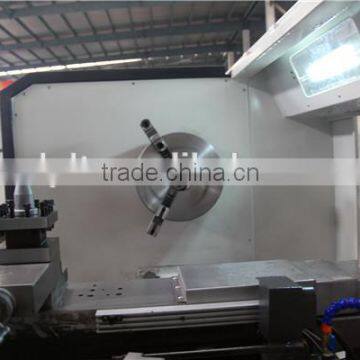

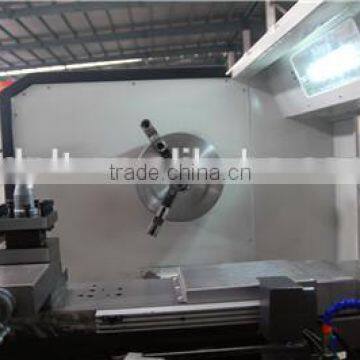

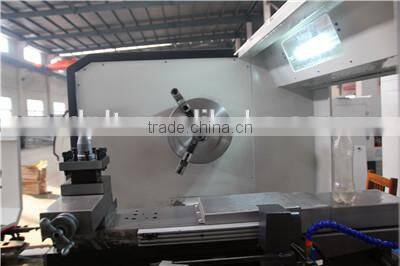

More pictures
1.Engineers are available to do oversea machinery service. In some countries, we have
oversea agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3.Training in our factory and on-line are free of cost.
4.Warranty is 12 months, small broken parts are free of cost to replace, spare parts are
delivered with machine for customer convenience.
5.Best agent price and distributer price are offered.
Please click the following SEND now. You will get more details.
Please talk with us on aliaba TM.
