TCK700 Antique Lathe

TCK700 Antique Lathe thumbnail-1
TCK700 Antique Lathe thumbnail-2
TCK700 Antique Lathe thumbnail-3
TCK700 Antique Lathe thumbnail-4
TCK700 Antique Lathe thumbnail-5
TCK700 Antique Lathe thumbnail-6
TCK700 Antique Lathe photo-1
TCK700 Antique Lathe photo-2
TCK700 Antique Lathe photo-3
TCK700 Antique Lathe photo-4
TCK700 Antique Lathe photo-5
TCK700 Antique Lathe photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
PULUTE
Contact Supplier Request Quote Chat Now
Shandong Pulute Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name PULUTE
Model Number TCK700
Voltage 380V
Rated Power 22 KW
Dimension(L*W*H) 3850x2300 x2250 mm
Weight 6000KG
Certification CE, ISO9001, ISO14001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

antique lathe

1.   TCK700 antique lathe specification

antique lathe specification
Max. swing over bed 700mm

Max. Turning diameter

 650mm

Max. Turing diameter over turret

 450mm

Max. Turning length

 1000mm

Distance between two centers

 1320mm

Hydraulic chuck

 15"

Main motor power servo type

 22kw

Spindle speed

 2200rpm

Thru-hole diameter of spindle

 106mm

Max. Diameter of the bar

 90mm
x/z travel 350/1120mm

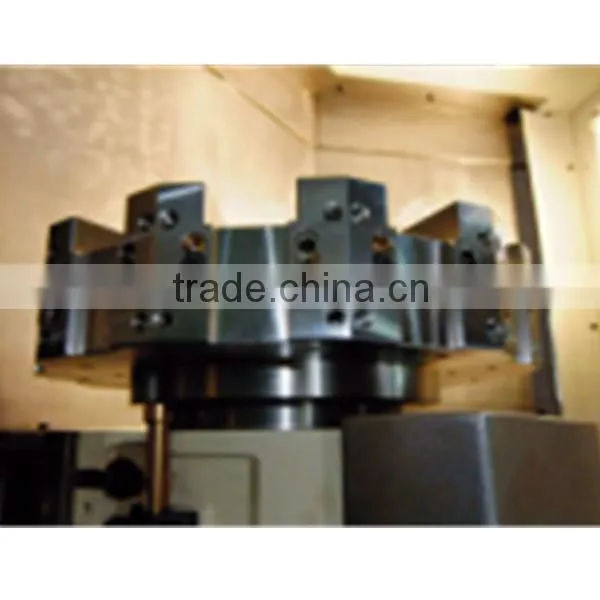

Turret

8 position hydrulic turret
Tools 4 tools gany type post

Hydraulic tail stock sleeve diameter

 100 mm

Hydraulic tail stock sleeve travel

 120 mm

Hydraulic tail stock travel

 1250mm

Hydraulic tail stock sleeve taper

 MT5#

Overrall dimention L*W*H

3850x2300 x2250 mm

 N.W.

6000 kg



2.  TCK700 antique lathe features

Machine features

Slant bed structure improves machine whole rigidity and anti-shake ability very well.

The high quality gray cast iron improves moving and static rigidity greatly.

The sand core in stand house absorbs vibration very well.

 Feeding system adopts servo motor, precision ball screw, high rigidity precision compound bearing

structure.

Those makes high accurate position and high transmission efficiency.

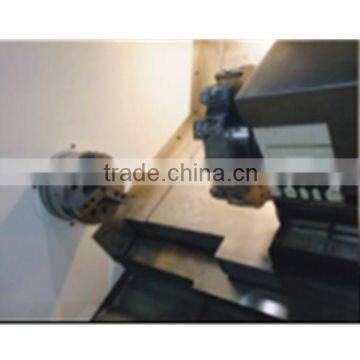

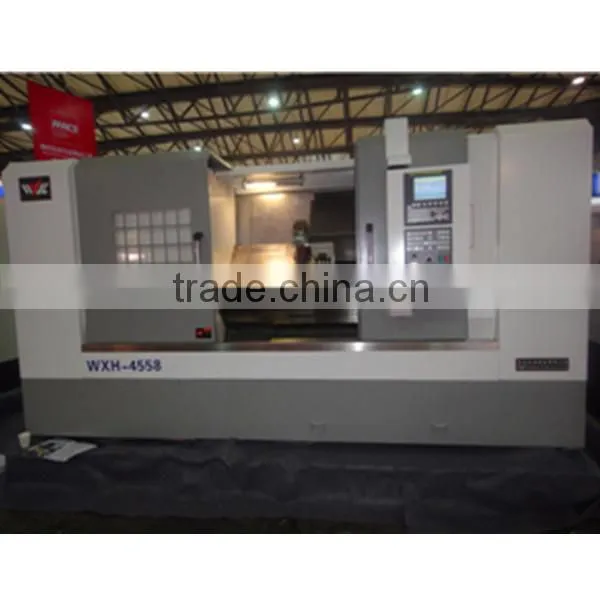

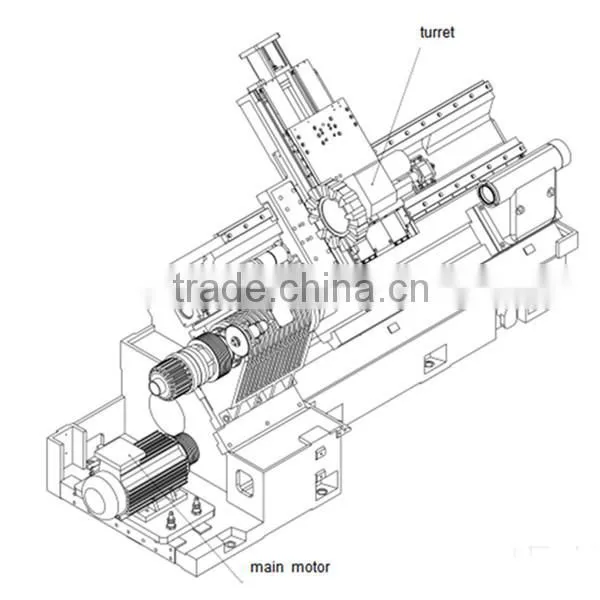

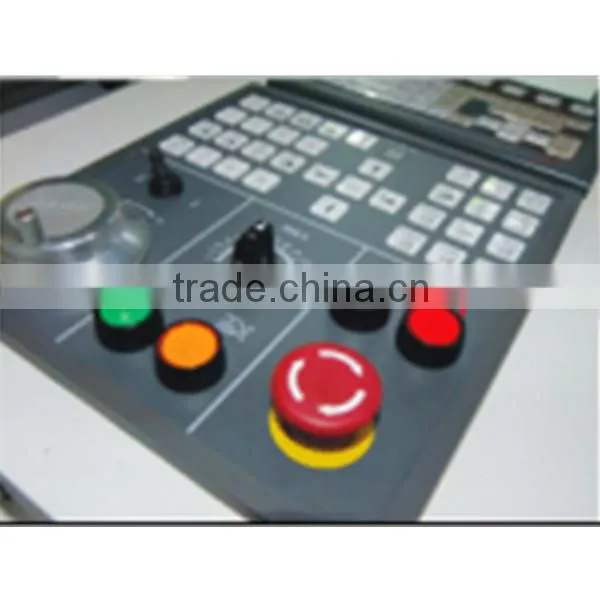

3.  TCK700 antique lathe pictures

TCK700 antique lathe

TCK700 antique latheTCK700 antique latheTCK700 antique lathe
