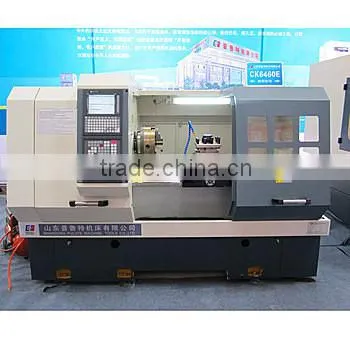

cnc lathe ck6166 cnc lather
1. cnc lathe ck6166 cnc lather specification
| Capability | Max. swing dia. over bed | 650mm |
| Max. swing dia. over cross slide | 400mm | |
| Max. processing length | 1000/1500/2000/3000mm | |
| Spindle | Go-ball dia. of spindle | 105mm |
| Spindle taper | 90 1:20 | |
| Spindle speed | 25-850 rpm | |
| Spindle nose | C11 | |
| X/Z | X/Z position accuracy | 0.025/0.03 |
| X/Z repeatability | 0.01/0.015 | |
| X/Z feed motor power | 1.5/1.88 kw | |
| X/Z feed motor torque | 7.5/10 N.w | |
| X/Z rapid feed speed | 6/10 m/min | |
| Tool holder | Type | 4-position electric turret |
| Tool holder X/Z travel | 500/1200-1650mm | |
| Tailstock | Tailstock sleeve dia. | 100mm |
| Tailstock sleeve strock | 250mm | |
| Tailstock taper | MT6# | |
| Dimension | 3200/3700//4300/5200*1820*1780 mm | |
| Net weight | 3900/4500//4500/5400kg |
2. cnc lathe ck6166 cnc lather features
higher stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
guide width 550mm
3. cnc lathe ck6166 cnc lather usage
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4. cnc lathe ck6166 cnc lather accessories
GSK980TDC or Siemens 808d NC system
11kw inventer main motor

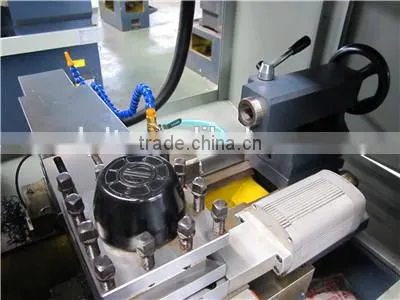

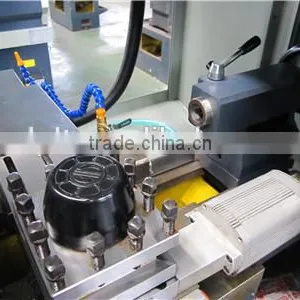

4 station electric turret
320mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
5. cnc lathe ck6166 cnc lather accessories
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
11/15 kw servo motor
15 kw inverter motor
12" domestic none thru-hole hydraulic chuck
12" domestic thru-hole hydraulic chuck
12" Taiwan none thru-hole hydraulic chuck
12" Taiwan thru-hole hydraulic chuck
Full enclosed cover
