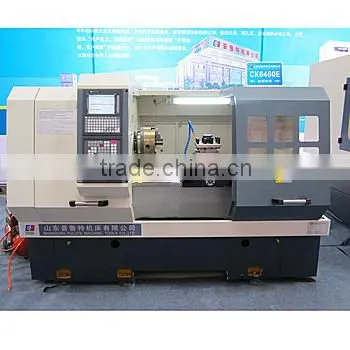

ck6166a cnc lathe takamaz
1. ck6166a cnc lathe takamaz specification
| Capability | Max. swing dia. over bed | 650mm |
| Max. swing dia. over cross slide | 400mm | |
| Max. processing length | 1000/1500/2000/3000mm | |
| Spindle | Go-ball dia. of spindle | 105mm |
| Spindle taper | 90 1:20 | |
| Spindle speed | 25-850 rpm | |
| Spindle nose | C11 | |
| X/Z | X/Z position accuracy | 0.025/0.03 |
| X/Z repeatability | 0.01/0.015 | |
| X/Z feed motor power | 1.5/1.88 kw | |
| X/Z feed motor torque | 7.5/10 N.w | |
| X/Z rapid feed speed | 6/10 m/min | |
| Tool holder | Type | 4-position electric turret |
| Tool holder X/Z travel | 500/1200-1650mm | |
| Tailstock | Tailstock sleeve dia. | 100mm |
| Tailstock sleeve strock | 250mm | |
| Tailstock taper | MT6# | |
| Dimension | 3200/3700//4300/5200*1820*1780 mm | |
| Net weight | 3900/4500//4500/5400kg |
2. ck6166a cnc lathe takamaz features
higher stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
guide width 550mm
3. ck6166a cnc lathe takamaz usage
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4. ck6166a cnc lathe takamaz standard accessories
GSK980TDC or Siemens 808d NC system
11kw inventer main motor

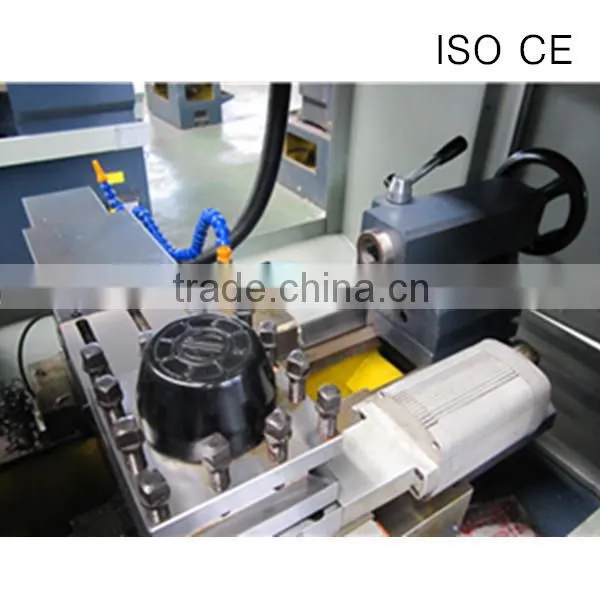

4 station electric turret
320mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
5. ck6166a cnc lathe takamaz optional accessories
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
11/15 kw servo motor
15 kw inverter motor
12" domestic none thru-hole hydraulic chuck
12" domestic thru-hole hydraulic chuck
12" Taiwan none thru-hole hydraulic chuck
12" Taiwan thru-hole hydraulic chuck
Full enclosed cover
To choose the most suitable and economic CNC lathe model, please kindly tell the
following info. in details
work piece material and usage, solid type or hollowed type ( pipe type), list all of outer diameters
and inner diameter, drawings is best to be sent to us too.
