cnc lathe ck6136 cnc metal spinning machine
- 4800 Set / Sets per Month
- Qingdao Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 360mm | Place of Origin: | Shandong, China |
Brand Name: | pulute | Model Number: | CK6136 | Voltage: | 380v |
Power(W): | 5.5kw | Dimension(L*W*H): | 2000*1200*1620mm | Weight: | 1560kg |
Certification: | CE ISO | After-sales Service Provided: | Overseas third-party support available |
Product Description
cnc lathe ck6136 cnc metal spinning machine
cnc lathe ck6136 cnc metal spinning machine specification
cnc lathe ck6136 cnc metal spinning machine | unite | CK6136 |
max. swing over bed | mm | 360mm |
max. swing over cross slide | mm | 180 |
max. turning length | mm | chuck 490/ collet580 |
spindle bore | mm | 48 |
max. diameter of the bar | mm | 41 |
spindle nose | A2-6 | |
spindle speed | rpm | 2000 |
work piece clamping type | manual chuck8" | |
spindle motor power | kw | 5.5 |
invertor power | kw | 7.5 |
x/z axis torque | N.m | 4/6 |
x/z axis rapid traverse | m/min | 8/10 |
tool post | 4 tools electric tool post | |
tool bar section | mm | 20*20 |
tailstock sleeve dia. | mm | 60 |
tailstock sleeve travel | mm | 100 |
tailstock taper | mm | MT4# |
machine dimension | mm | 2000*1200*1620 |
n.w | kg | 1560 |
2. cnc lathe ck6136 cnc metal spinning machine features
high rigidity pedestal and wider lay board are suitable for heavy cutting
four station electric turret
inverter stepless speed
3. cnc lathe ck6136 cnc metal spinning machine usage
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,
end face. It can also turn the single and multiple threads in metric , inch and other standard.
4. cnc lathe ck6136 cnc metal spinning machine standard accessories
GSK980TDC or Siemens 808D NC system
inverter motor 5.5kw

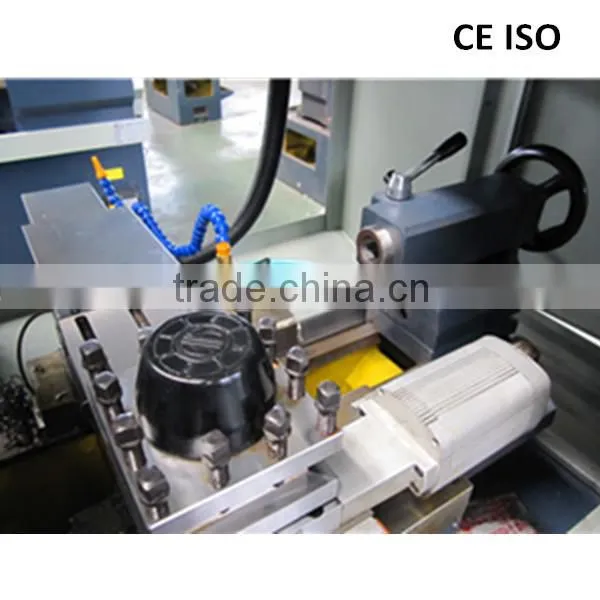

4 station electric turret
6" manual chuck
manual tail stock
integrated automatic lubrication system
full set coolant system
advanced LED lighten system
5. cnc lathe ck6136 cnc metal spinning machine optional accessories
Fanuc 0I mate TD or KND1000Ti
servo motor5.5 /7.5 kw
inverter motor 7.5 kw
6 station electric turret
8″Non-through hole hydraulic chuck
8″through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
steady rest
automatic feeding device
spring collet
Before order, please kindly inform the following
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings
3. Need cutters, clamping set or not
4.Customer service
Click " send " now and learn more about our products.
