Specifications
1.Reliable GPS Tracking for Trucks2.Tracking via mobile phone
3.tracking from PC
4.logger hoistory replay
An advanced bus tracking system from Track Your Truck lets you know where your vehicles are, when they will arrive for pickup or delivery, and even how fast they are traveling. With detailed reporting capabilities, you can provide outstanding customer service and manage a better business all around. Eelink offers GPS tracking for trucks and buses that paves the way for efficiency, profitability, safety and security.
- With Enterprise Data Services, you can have real-time tracking data flow to your in-house applications. Embed mapping of your vehicles on your website so customers can track their services online.
- Premier, enhanced map data by Google Enterprise Maps span most of the U.S. and the world, with easy-to-use features and a familiar setup.
- Our truck tracker systems include cellular and pure satellite. We’ll even mix and match technologies for an alternative solution that best fits your needs.
Reliable GPS Tracking for Trucks
Eelink GPS truck tracking systems are easy to set up and easy to use. They arrive tested, certified and activated, so that you can start tracking your vehicles immediately! Count on our team to help match your business with the right tracking solution, and to provide the real support you need should a problem arise. Give us a call, and we can discuss how vehicle tracking works and which options work best for you.
Call us today for bus and truck monitoring systems that help manage your business.
Environment for use
1,Limited working temperature:-20°C~80°C
2,Storage temperature:-45°C~90°C
3,Humidity:<95%
4,Atmospheric pressure:86kPa~106kPa
5,Make sure the terminal is installed in rainproof
and snow-proof places.
6.200MAh battery
Basic Specifications:
Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45 g
Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely
Main function
| Brand | Eelink |
| Model | TK116 |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS |
| Network | GSM |
| Band | 85090018001900 MHz |
| SIM Card Qty. | one SIM |
| Emergency Phone Number Qty. | 3 |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| SOS | Yes |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | Yes |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | -35~75'C |
| Working Humidity | 5%~95% |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
| Certification | CE |
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
GPS Truck tracking solutions

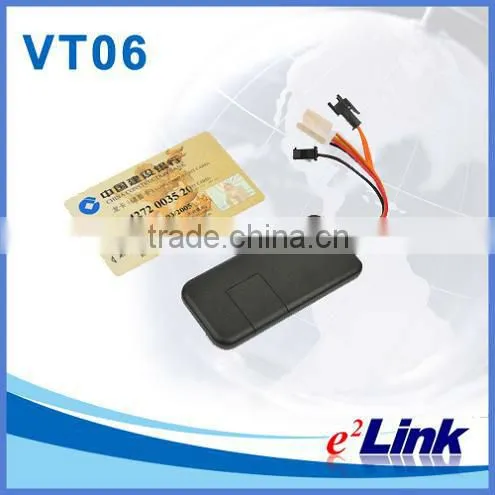

Detail picture
GPS TRACKING SYSTEM
PACKAGE
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
ACCESSORIES
