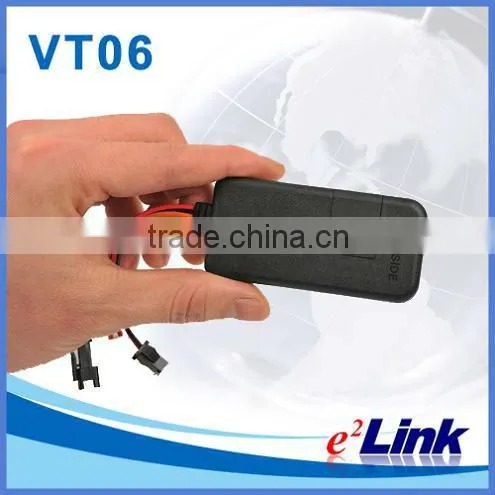

Mini Gps Tracker for Vehicle VT06NegotiableMOQ: 100 Pieces
-
GPS Tracking SystemNegotiableMOQ: 100 Pieces
-
Tracking System For Cars & TaxisNegotiableMOQ: 100 Pieces
-
GPS Tracking for Vehicles and FleetsNegotiableMOQ: 100 Pieces
Specifications
1.Monitor your products, equipment and vehicles2.Reduce wear and tear on your fleet
3.Get real-time alerts wherever you go
GPS asset tracking software is an effective way to closely monitor your valuable business assets, with real-time tracking and mapping capabilities that let you know where your employees, vehicles and inventory are at all times. Whether you are delivering consumer goods or transporting construction equipment, GPS asset tracking systems help you minimize loss, improve customer service and better manage your business operations. Eelink asset tracking systems and solutions are customized to fit your needs, with advanced features and options that are easy to set up and easy to use.
- The ability to closely monitor your products, equipment and vehicles helps minimize unauthorized and after-hours use of company assets.
- Reduce wear and tear on your fleet by keeping track of mileage, and monitor fuel consumption for lower energy use and costs.
- Get real-time alerts wherever you go, with mobile GPS mapping that allows you to track vehicles from your mobile phone.
Simple GPS Asset Tracking System and Services
Eelink offers reliable solutions for businesses in any industry. We can customize a GPS asset tracking solution that best fits your business needs and goals, whether you are tracking five vehicles or 500. Our systems come fully tested and activated, making setup and startup easy! You can start tracking your business assets right away knowing that your GPS asset tracking devices are proven to work efficiently and effectively. Give us a call and speak with a real person for help choosing which of our systems best fit your needs.
Environment for use
1,Limited working temperature:-20°C~80°C
2,Storage temperature:-45°C~90°C
3,Humidity:<95%
4,Atmospheric pressure:86kPa~106kPa
5,Make sure the terminal is installed in rainproof
and snow-proof places.
6.200MAh battery
Basic Specifications:
Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45 g
Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely
Main function
| Brand | Eelink |
| Model | TK116 |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS |
| Network | GSM |
| Band | 85090018001900 MHz |
| SIM Card Qty. | one SIM |
| Emergency Phone Number Qty. | 3 |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| SOS | Yes |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | Yes |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | -35~75'C |
| Working Humidity | 5%~95% |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
| Certification | CE |
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
GPS Assets Tracking solutions
Detail picture
GPS TRACKING SYSTEM
PACKAGE
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
ACCESSORIES
