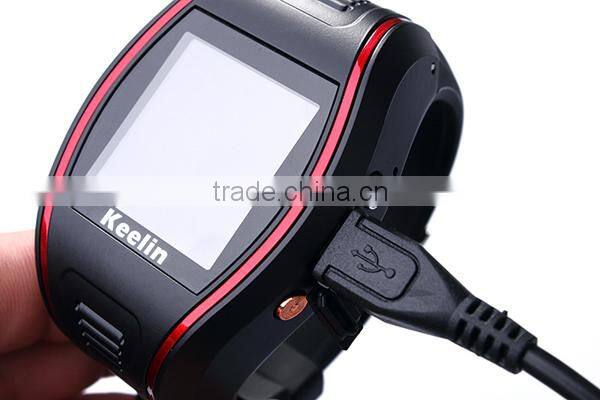

Child GPS tracking device K9+ with sos button and geo-fence alarm

Instructions for use

Power onPower off

Press and hold key 4 to power on and enter the main interface; press and hold key 4 again to power off..

 SOS one key for help

When power on, press and hold key 5, then the terminal will call the presetting numbers circularly and send SOS SMS at the same time.

 Call the numbers on SIM card

From idle mode, press key 3 to enter the main menu, next press the UP key or DOWN key to choose the phonebook, press key 3to enter.

Use the UP/DOWN key to choose the number, next press key 3 to enter the options.

Use the UP/DOWN key to choose “Call”, next press key 3 to make a call. Numbers must be stored on the SIM card.

 Call the numbers in call logs

From idle mode, press key 3 to enter the main menu, next press the UP key or DOWN key to choose the call center, press key 3to enter.

Use the UP/DOWN key to choose the number, next press key 3 to enter the options.

Use the UP/DOWN key to choose “Call”, next press key 3 to make a call.

 Call the manager numbers

When power on , press and hold the Key 1, key 2 or key 3 to call the corresponding presetting manager numbers.

 Answer the calls

When managers call the watch for more than 8 seconds, or others call the watch, the watch ring and show the incoming numbers on the screen, press key 3 to answer the call.

Key 5 can be pressed to reject the call.

When the call cannot be answered on time, the missed contacts will be displayed on the missed call screen.

 Check the missed calls

If calls missed, then the missed call prompt can be displayed on the missed call screen.

 Check SMS

You can enter the Messaging menu to check the SMS.

 Hand free

The watch will use hand-free automatically when making a call.

 Adjust the volume

When making a call, press key 1 to increase the volume and press key 2 to decrease the volume.

 Organizer

Including Calendar/World clock/File manager/Work mode/GPS logger, etc…

Enter the Organizer menu, use UP/DOWN key to choose the function and press key 3 to enter.

 User profiles

Including Gerneral/Silent profiles.

Enter the User Profiles menu, use UP/DOWN key to choose the profile and press key 3 to enter.

 Settings

Including Phone settings/Network settings/Restore factory settings.

Phone settings: Language/Flight mode.

Network settings: Network selection/GPRS transfer pref.

Enter the Settings menu, use UP/DOWN key to choose the function and press key 3 to enter.

 Positioning

If the watch has no presetting numbers, then press and hold key 1/2/3, the watch will position itself.

The watch displays: Positioning, then it will receive the position SMS.

(If no GPS signal, then the LBS positioning SMS will be received)

 Positioning using a call

The managers can call the watch for less than 8 seconds and then hang up, the watch will send the positioning SMS automatically without ringing.

If the managers call the watch for more than 8 seconds and the watch rings, they can make a normal call.

 Work mode

From idle mode, press key 1 to enter Work mode, next press UP/DOWN key to choose one mode, press key 3 to enter.

0: Tracker mode: GPS always on.

1: Saving mode: GPS on when the watch moving or be inquired position.

2: Sleep mode: GPS on only when the watch is inquired position.

3: Hibernate mode: GPS off

Set the Work mode::

#720#Work mode number#Password##

 Update time automatically

The watch will open the GPS automatically for 3 minutes after power on, it will enter the presetting Work mode after updating the time. (Under Hibernate mode, the watch will close the GPS and not update time.)

 GPS Data Interface

Press key 5 to enter the GPS data interface.

The screen will display the following data if there is GPS signal:

Current longitude, latitude, speed, altitude, satellite numbers, positioning logo:

N-GPS Sleeping

V-Searching the satellites

A-Already Positioning

 GPS logger

First set the work mode to tracker mode or saving mode.

Second press key 2 to enter the GPS logger menu, use UP/DOWN key to choose the speed and press key 3 to start GPS log.

Finally enter the GPS logger menu, use UP/DOWN key to choose the “off”, press key 3 to make sure to end the GPS logger.

Command: #777#Time#Password##,Time means sampling frequency(one sample/Time). Time=0 means cancel the GPS logger.

 GPS logger settings(Local Operations):

First set the work mode to tracker mode or saving mode.

Second press key 2 to enter the GPS logger menu, use UP/DOWN key to choose the speed and press key 3 to start GPS log.

Finally enter the GPS logger menu, use UP/DOWN key to choose the “off”, press key 3 to make sure to end the GPS logger.

 Read the GPS logger

Power off the watch and use data cable to download the *.plt file to PC from the memory of the watch.

If the PC has installed the “Google Earth”, then you can view the GPS logger using the “Google Earth” to open the *.plt file.

GPS Tracking System

1) Geo-fence Alarm

2)Add device with protocol you need

3)GPS tracking Statistics report
