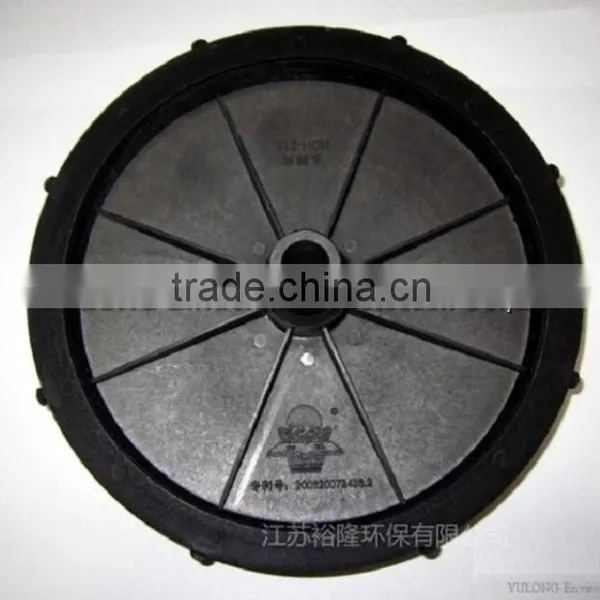

EPDM membrance disc air diffuser
Advantage:
1.our order have gained Alibaba trade assurance on-line shippment
2.The diaphragm is made from imported EPDM, which is anti-aging, anti-corrosion and has durable service life.
3.Stair-stepping seal structure can prevent the diaphragm loosing off.
4.The peripher of diaphragm is thickened to compensate the extension. The thickened part can resile freely by itself elasticity, which to protect the rubber diaphragm from tearing up by concentrated stress.
5.Double reflux valve design. The nonporous diaphragm center on the vent and the reflux value inside aerator, can prevent sewage seeping into the pipeline system.
6.Special once molding process forms fine pores on the diaphragm, which makes the air bubbles diffusing evenly with less resistance loss.

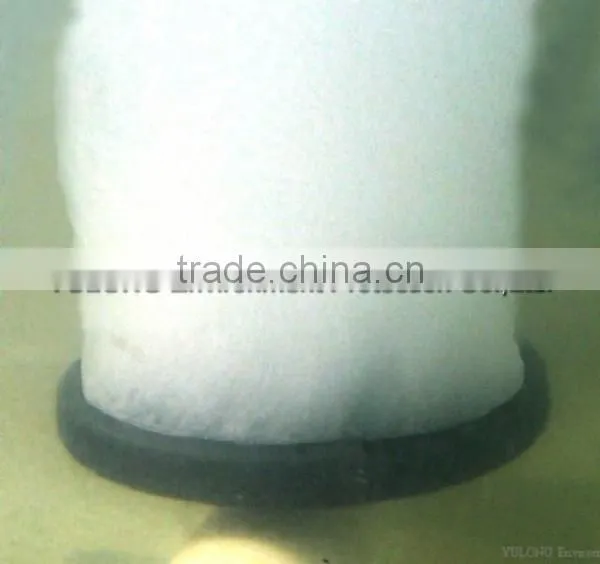

7.The diffusing air bubbles are fine and even, which enhances the oxygen utilization and oxygenation capacity.
8.The diaphragm has good self-cleaning and anti-clogging property.
9.Standard 3/4 inch screwed joint. Screwed plastic hard connection and rubber flexible connection are both applicable, which is interchangeable well.
10.HDH-series aerator can resist high temerature up to 100 ℃ and could work well in deep tank aeration with 10meters depth.
11.The patent No.200620072436.2

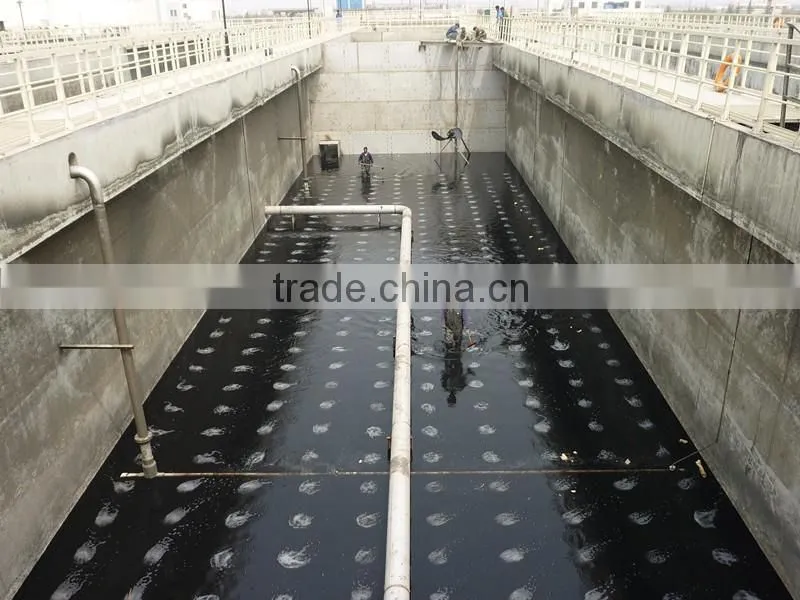

HDH-series microporpous diaphragm aerator could be applied to the aeration work of all kinds of sewage treatment.
Specification data:
| JiangSu YULONG Environment Protection Co., Ltd. | |||||
| Add: No.6 Huahui Rd., E.P.Industrial Park, Gaocheng, YiXing, JiangSu Province, China postcode:214214 | |||||
| Tel:+86-510-87838621 87895999 87838628 Fax:+86-510-87895522 | |||||
| Item | HDH-215 | HDH-260 | |||
| Diameter of Rubber Diaphragm(mm) | 215 | 260 | |||
| Aeration Capacity(m3/h) | 0.5~5 | 1~8 | |||
| Service Area(m2/piece) | 0.2~0.6 | 0.3~0.8 | |||
| Oxygen Utilization Ratio(%) | 22~40 | 30~50 | |||
| Oxygenation Capacity(kg O2/kw·h) | 0.13~0.40 | 0.20~0.50 | |||
| Theoretical Power Efficiency(kg O2/kw·h) | 4.5~6.5 | 6.0~8.0 | |||
| Resistance Loss(Pa) | <3000 | <3000 | |||
| Air Bubble Diameter(mm) | 1~3 | 1~3 | |||
| Connector Size | G3/4 inch Screwed Connection | ||||
| Note:the above data was tested in 4M depth clear water. | |||||
| Working condition | ||||
| Ambient Air Temperature(℃) | (-30.0~45.0) max:(90~100) | |||
| Contact fluid temperature(℃) | 4~50 | |||
| pH | 4~9 | |||
| Max.Working Depth(m) | 10 | |||
| Durability | 24h/day Non-stop Running ok | |||
| Main Spare Parts Material | ||||
| Rubber Diaphragm | EPDM | |||
| Connectors | EPDM | |||
| Clamping Ring | Strengthened PP | |||
| Support Plate | Strengthened PP | |||
| Refulx Valve | Strengthened PP+EPEM | |||
| Air Pipe | ABS/UPVC | |||
| Air Distributing Main Pipe | ABS/UPVC | |||
| Pipe Fitting | ABS/UPVC | |||
| Fastener of Main Pipe | 304 Stainless Stell | |||
Packing: 20 pieces per carton
Shipping: 7 days after order
