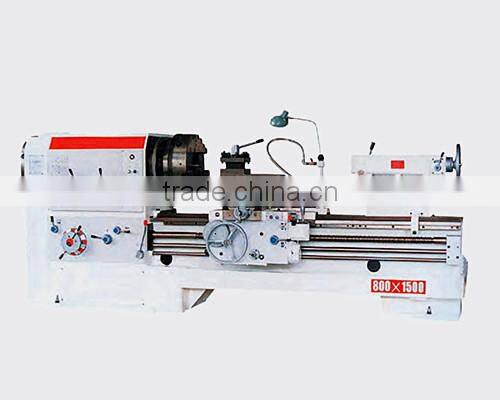

china pipe threading lathe machine Q1221
This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity,high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used, it is safe and reliable the reliability of the machine could be ensured, Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control.
china pipe threading lathe machine Q1221
china pipe threading lathe machine Q1221
| Nanme Content | CW6636 | CKW6646 | CKW6663 | Q1327 | Q1221 | ||
| Max.swing over bed | Φ1000mm | Φ1200mm | Φ1400mm | Φ800mm | Φ840mm | ||
| Max.swing over carriage | Φ640mm | Φ800mm | Φ1100mm | Φ520mm | Φ560mm | ||
| Spindle bore | Φ360mm(14") | Φ460mm(18") | Φ635mm(25") | Φ280mm | Φ210mm | ||
| Range of spindle speed | 6.3~315rpn | 6.3~315rpm | 5~250rpm | 7.7~230rpm | 45~572rpm | ||
| Chuck diameter (front&rear) | Φ1000mm | Φ1000mm | Φ1250mm | Φ500mm | Φ500mm | ||
| Min.clamping diameter of chuck | Φ240 | Φ260mm | Φ500 | Φ300 | Φ300 | ||
| Metric thread(pitch) | kind | range | (56)44,1~120mm | 2~6(4) | 1~15(28) | ||
| Whitworth | kind | range | 37,30~11/8teeth | 4~12(6) | 15-1(28) | ||
| Module threads | kind | range | 46,0.5~60mm | / | 0.5-7.5(21) | ||
| Diametrical thread | kind | range | 46,0.5~60D.P. | / | 28-2(20) | ||
| Max.machining length of taper the scale | 300mm | ||||||
| Turning taper | ±1:4 | ||||||
| Diameter of tailstock sleeve | Φ160mm | Φ100mm | Φ100mm | ||||
| Power of main motor | 22KW | 30KW | 15kw | 9/11kw | |||
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
