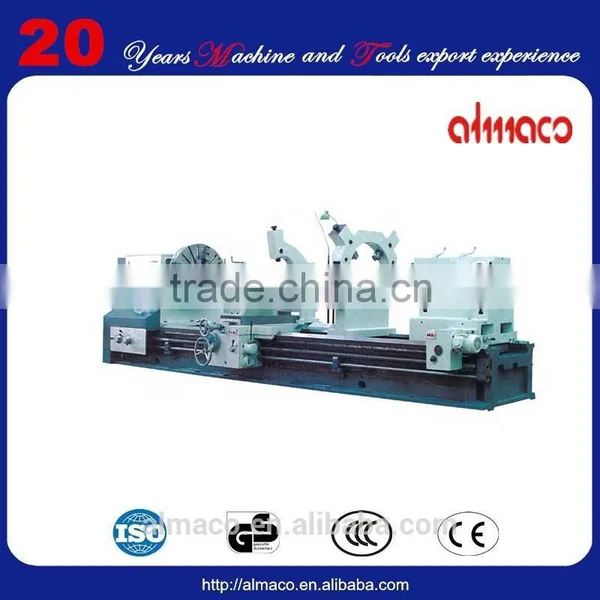

well heavy duty lathe CW61208
These lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads. The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools
1.Standard accessorids:
F1000mm 4-jaw chuck(CW61108,CW61128),F1250mm 4-jaw chuck(CW61148~CW61208).Steady rest:F200-F500,F300-F800(for CW61128~CW61208/6000mm)
2.Optional accessories:
Roll Support,bigger 4 jaw chuck

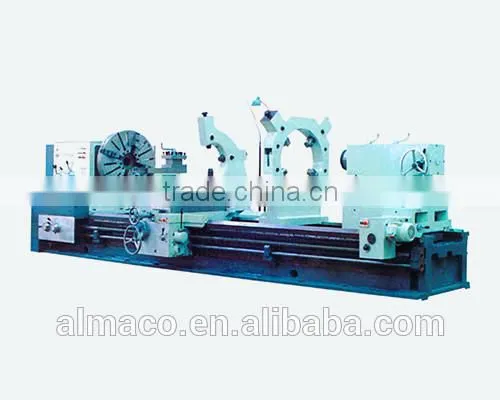

well heavy duty lathe CW61208
well heavy duty lathe CW61208
| 32532 | 32533 | 32534 | 32535 | 32536 | 32537 | |
| Model | CW61108 | CW61128 | CW61148 | CW61168 | CW61198 | CW61208 |
| Max swing over bed | 1080mm | 1280mm | 1480mm | 1680mm | 1980mm | 2080mm |
| Max swing over carriage | 600mm | 800mm | 1000mm | 1200mm | 1500mm | 1600mm |
| Max swing over gap | 1420mm | 1620mm | 1820mm | 2020mm | 2320mm | 2420mm |
| Weight of workpiece | 10tons | |||||
| Center distance | 2m,3m,4m,5m,6m,8m,10m,12m | |||||
| Gap length | 600m | |||||
| Bed width | 1100mm | |||||
| Main spindle hole | Φ130mm | |||||
| Spindle taper | Metric 140# | |||||
| Spindle speed | 3.15-315r/min or 2-200r/min or 2.5-250r/min./21 steps counter clockwide;12steps counter clockwide | |||||
| Metric thread | 44kinds 1-120mm | |||||
| Inch thread | 31kinds 1/4-24tpr | |||||
| Mould thread | 45kinds 0.5-60mm | |||||
| Diametric thread | 38kinds 1/2-56DP | |||||
| Longitudinal feeding range | 56kinds 0.1-12mm | |||||
| Cross feeding range | 56kind 0.1-12mm | |||||
| Rapid feeding (Long/Cross) | 1200mm/min,1800mm/min | |||||
| Tool section | 45*45mm | |||||
| Crossslide travsers | 860mm | |||||
| Toolpost travsers | 400mm | |||||
| Tailstock quill diameter | F260mm | |||||
| Tailstock quill taper | Metric 80# | |||||
| Quill traverse | 300mm | |||||
| Main motor | 30kw | |||||
| Coolant motor | 0.15kw | |||||
| Rapid traverse motor | 1.5kw | |||||
| Tailstock motor | 3kw | |||||
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
