Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > China Profect and Low Price Drilling Machine

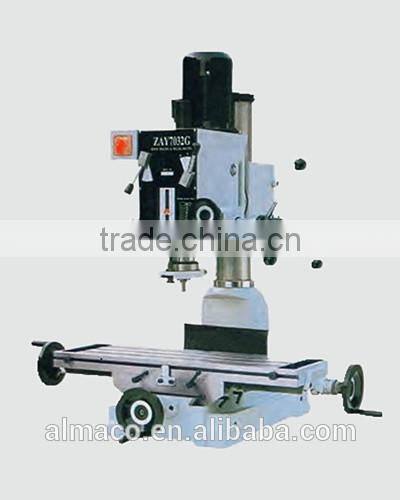

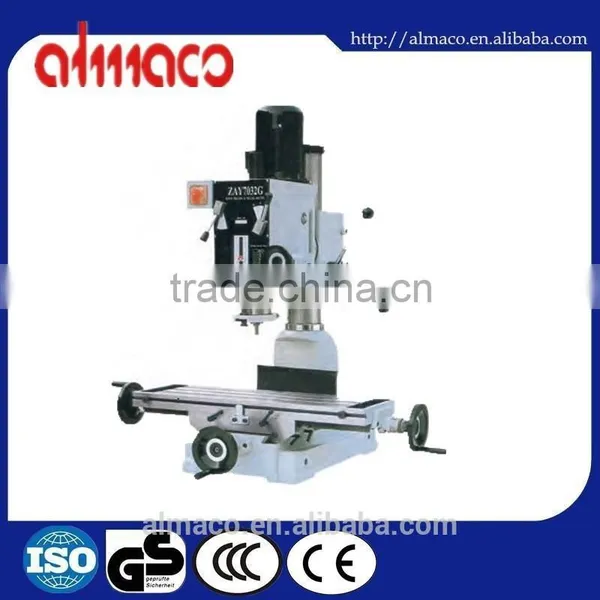

China Profect and Low Price Drilling Machine

Name: China Profect and Low Price Drilling Machine
Brand: ALMACO
SKU: 115155155
Availability: InStock

Almaco Machine Tool Co., Ltd.

China Profect and Low Price Drilling Machine thumbnail-1

China Profect and Low Price Drilling Machine photo-1

US$ 800 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

ALMACO

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai.china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name ALMACO

Model Number DMC7045

Type Vertical

CNC or Not Normal

Voltage 380V

Power(W) 1.5kw

Dimension(L*W*H) 880*770*1140mm

Weight 285/335kg

Certification CE;ISO

Warranty 1 year

Product show

drilling machine

Data

drilling machine DMC7045

odel		ZAY7045 ZAY7045G ZAY7045G	ZAY7040 ZAY7040G ZAY7040FG	ZAY7032 ZAY7032G ZAY7032FG	ZAY7020 ZAY7020G
Drilling capacity		45mm	40mm	32mm	20mm
Face milling capacity		80mm	80mm	63mm	63mm
End milling capacity		32mm	32mm	20mm	14mm,20mm
Distance from spindle nose to table		450mm, 680mm	450mm, 680mm,440mm	450mm, 680mm,440mm	382mm,350mm
Min. distance from spindle axis to column		193.5mm,272.5mm,260mm	193.5mm,272.5mm,260mm	193.5mm,272.5mm,260mm	202mm,175mm
Spindle travel		130mm	130mm	130mm	120mm,130mm
Spindle taper		M.T.4 or R8	M.T.4 or R8	M.T.3 or R8,M.T.4 or R8	M.T.3
Step of spindle		12,6	12,6	12,6	12,6
Range of spindle speed	50Hz	80-2080,80-1250r.p.m.	80-2080,80-1250r.p.m.	80-2080,80-1250r.p.m.	80-2080,80-1250r.p.m.
Range of spindle speed	60Hz	100-2500,95-1500r.p.m.	100-2500,95-1500r.p.m.	100-2500,95-1500r.p.m.	100-2500,95-1500r.p.m.
Swing diameter of headstock		405mm,680mm,	405mm,680mm	405mm,680mm	405mm,680mm
Swivel angle of headstock	horizontally	3600	3600	3600	3600
Swivel angle of headstock	perpendicularly	+900	+900	+900	+900
Size of table		800 x 240mm2, 700x 240mm2	800 x 240mm2, 700x 240mm2	800 x 240mm2, 700x 240mm2	585 x 190mm2
Forward and backward travel of table		175mm	175mm	175mm	150mm
Left and right travel of table		500mm, 400mm	500mm, 400mm	500mm, 400mm	380mm
Power		1.5kw (2Hp)	1.1kw (2Hp),1.1kw(0.75Hp)	0.75kw (1Hp)	0.75kw (1Hp),0.55kw (1Hp)
Voltage/Fequency		As custmers requirement	As custmers requirement	As custmers requirement	As custmers requirement
Overall height (Without stand)		1060mm; 1300mm;1020mm	1060mm; 1300mm;1020mm	1060mm; 1300mm;1020mm	1060mm; 1300mm
Net weight		285kg,320kg,325kg	283kg,318kg,323kg	280kg,315kg,323kg	270kg,300kg
Gross weight		335kg,370kg,375kg	333kg,368kg,373kg	330kg,365kg,370kg	330kg,350kg
		880 x 770 x 1140mm3	880 x 770 x 1140mm3	880 x 770 x 1140mm3	880 x 770 x 1140mm3
Packing size		880 x 832 x 1140mm3	1030 x 770 x 1140mm3	880 x 832 x 1140mm3
		1030 x 832 x 1140mm3	1030 x 832 x 1140mm3	1030 x 832 x 1140mm3
Loading amount (overall height)		36pcs/20container 18pcs/20container 28pcs/20container	36pcs/20container 18pcs/20container 28pcs/20container	36pcs/20container 18pcs/20container 28pcs/20container	36pcs/20container 18pcs/20container

Factory View

Company Information

Welcome to Almaco Machine Tool Co., Ltd

our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.

Packaging & Shipping

The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign

Engineer team

Our engineer team

*******************************************************************************************************

Our Services

1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.

2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.

5.Accessories replacement if our product itself has quality problems during one year after receiving.
