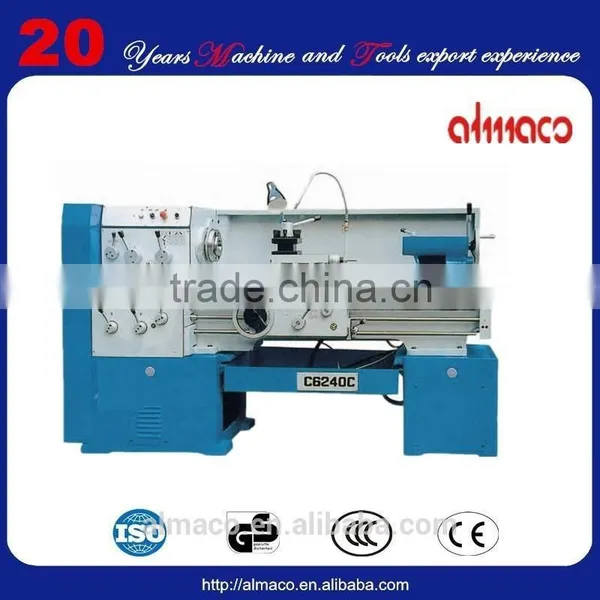

china good new gap lathe C6240C
1.Standard Accessories
2.3-jaw chuck
3.center¢er sleeve
4.Wrenches
5.Oil gun
Optional Accessories
1.Steady rest
2.Follow rest
3.4-jaw chuck
4.Face plate

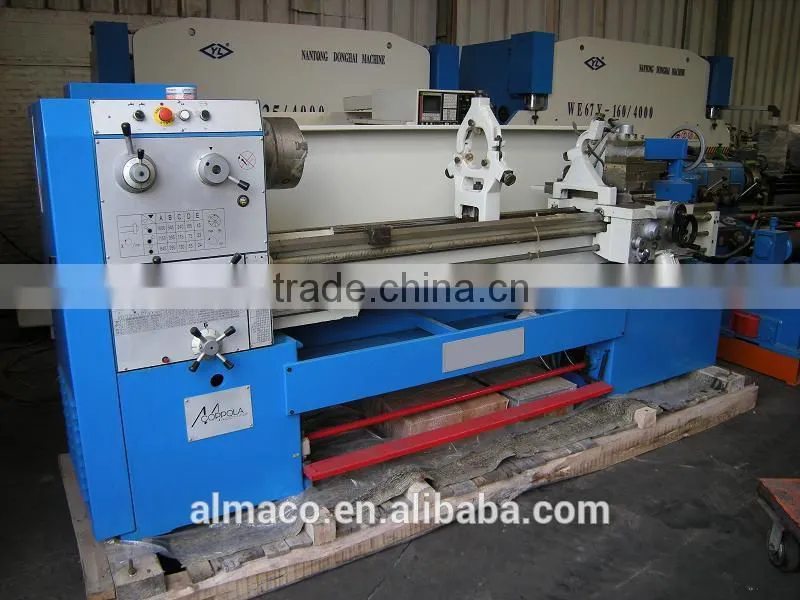

china good new gap lathe C6240C
| Item | C6240C | |
|
Capacity |
Max.swing over bed | 400 |
| Ma.swing over cross slide | 230 | |
| Max.swing over gap | 560 | |
| Center distance | 750.1000.1500mm | |
| Bed width | 360mm | |
| Spindle | Spindle hole | 52mm |
| Spindle nose | C6 | |
| Spindle taper | MT6 | |
| Spindle speeds(Number) | 40-1400RPM(9 Steps)1600rpm | |
| Feeds | Metric threads range(Kinds) | 0.25-14mm(19kinds) |
| Inch threads range(Kinds) | 2-40/inch | |
| Moundle threads range(Kinds) | 0.5-3.5mm(11kinds) | |
| Carriage | Cross slide travel | 180mm |
| Compound rest travel | 95m | |
| Cross-section size of toolshank | 20x20mm² | |
| Tailstock | Taper of tailstock sleeve | MT4 |
| Dia.of tailstock sleeve | 65MM | |
| Travel of tailstock sleeve | 140MM | |
| Main motor power | 4KW | |
| Packing size(LxWxH) | ||
| Center distance:750mm | 2220x1150x1590mm | |
1000mm |
2470x1150x1590mm | |
| 1500mm | 2970x1150x1590mm | |
| Net weight/Gross weight(Kgs) | ||
| Center distance:750mm | 1400/2050 | |
| 1000mm | 1500/2150 | |
| 1500mm | 1650/2300 | |
china good new gap lathe C6240C
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
