Portable Lathe
Portable Lathe(103mm spindle hole)LY6280Y
Precision ground
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Feature:
Precision ground
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapid traverse (optional)
Main spindle supported at 2 points with precision
taper roller bearings
STANDARD ACCESSORIES
3-jaw chuck 250mm
Driving plate
Center & center sleeve
Oil gun
Wrenches
Operation manual
OPTIONAL ACCESSORIES
Steady rest
Follower rest
4-jaw chuck 320mm

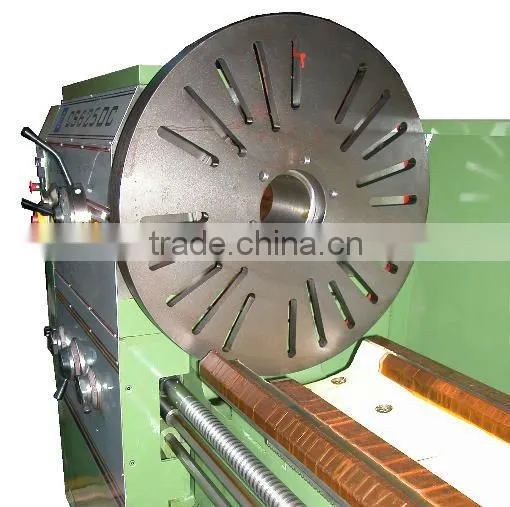

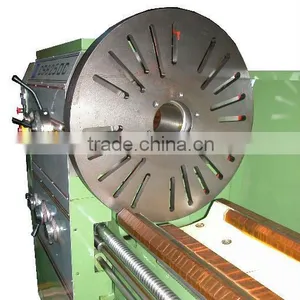

Face plate
Thread dial
Longitudinal automatic trip
Live center
Quick change toolpost
Taper copy ruler
4-position longitudinal antomatic trip
Portable Lathe
SPECIFICATIONS |
22606 |
22607 |
22608 |
|
LY6 1/2 60Y |
LY6 1/2 66Y |
LY6 1/2 80Y |
||
Swing over bed |
600 (24) |
660 (26) |
800 (32) |
|
CAPACITIES |
Swing over cross slide |
400mm |
460mm |
600mm |

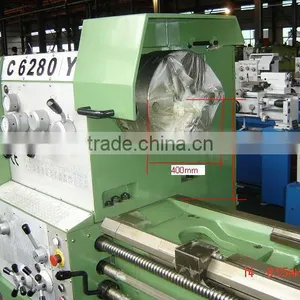

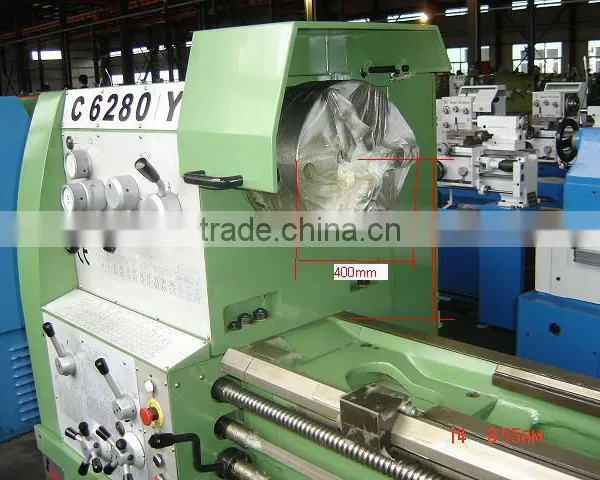

Swing in gap |
800mm (31 1/2) |
860mm (33 4/5) |
1000mm (39) |
|
Valid length of gap |
280mm (11) |
|||
Max Length of work piece |
1000mm (39 1/3) 1500mm (59) 2000mm (78 3/4) 3000mm (118) |
|||
Width of bedways |
400mm (16 1/4) |
|||
HEADSTOCK |
Spindle nose |
ISO-C11 or ISO-D11 |
||
Spindle bore |
Φ103mm (4) |
|||
Range of spindle speeds, Number |
9-1275rpm/18, 16-81rpm/6 |
|||
FEEDS |
Max. travel of compound rest |
110mm |
||
Max. travel of cross slide |
325mm |
|||
Longitudinal leadscrew pitch |
12mm or 2TPI |
|||
Section of tool |
32 x 32mm |
|||
Longitudinal feeds range |
72kinds 0.073-4.066mm/rev |
|||
Cross feeds range |
72kinds 0.036-2.033mm/rev |
|||
Metric threads range |
72kinds 0.5-112mm/rev |
|||
Inch threads range |
72kinds 56-1/4 t/inch |
|||
Module threads range |
36inds 0.5-7mm |
|||
Diametral threads range |
36kinds 56-4Dp |
|||
CARRIAGE |
Dia. of tailstock sleeve |
Φ90mm |
||
Morse taper of tailstock sleeve |
Morse No.6 |
|||
Travel of tailstock sleeve |
150mm |
|||
Cross adjustment range |
10mm |
|||
TAILSTOCK |
Power of main motor |
7.5kw 10kw |
||
Power of quick-travel motor |
250w |
|||
MOTOR |
Power of coolant pump |
90w |
||
Power of supply |
220V, 380V, 420V (50Hz, 60Hz) |
|||
Packing Size (L x W x H) |
1000mm |
2820 x 1300 x 2100mm |
||
1500mm |
3320 x 1300 x 2100mm |
|||
2000mm |
3820 x 1300 x 2100mm |
|||
3000mm |
4820 x 1300 x 2100mm |
|||
N.W / G.W |
1000mm |
2900/3500kg |
3000/3500kg |
3150/3750kg |
1500mm |
3150/3750kg |
3250/3850kg |
3400/4000kg |
|
2000mm |
3400/4050kg |
3500/4150kg |
3650/4300kg |
|
3000mm |
3800/4450kg |
3900/4550kg |
4050/4700kg |
|
Old model |
CY61/2 60 |
CY61/2 66 |
CY61/2 80 |
|
Portable Lathe
Packing &shipping
All of our goods will pass QUALITY INSPECTIONS before shipment.
Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
Special dimensions available according to request.
We have many certificates of our Products.
Accessories replacement if our product itself has quality problems during one year after receiving.
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 40 or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competi-tive prices and quick & thoughtful after-sale service to cooperate with you.
