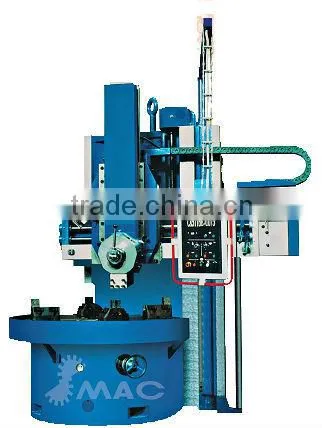

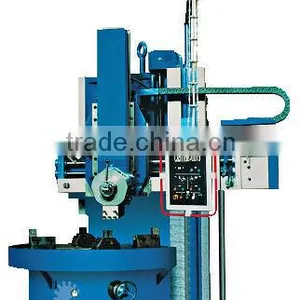

CNC vertical turret lathe
DESCRIPTION:
This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.
The table adopts thrust ball bearing with high accuracy for rolling guideway (CA5116E,CA5120E machine is also adopted slipping guideway). Spindle radial is performed NN30 type double row cylindrical rolling bearing. so it can improve the rotary procision and load capacity of
the table.
The rail head equipped with pentagonal turret,and the side heud is designed with square turret.
The two heads are all adopted the hydraulic balance.
The rail head (CA518E-CA5112E machine) is adopted rolling leadscrew bearing for transmis-sion in horizontal and vertical movement.
The electrical equipment of machine is controlled by PC. so it is high reliability.
Overall dimensions of machine is beautiful and it is delightful for people to use. It is easily for maintenaince and service.
The attachment of side head, digital control and turning taper can provided on special requirement.
Feature:
The table adopt high precision thrust ball rolling guideway and slide guideway in 1.6 metre of diameter.
The column cross rail adopt high strengthness and high wear-resistance grey cast iron.
Firction pairs of guideway in horizontal and vertical diretion adopt wear-resistance grey cast iron.
Ram guideway surface of rail, side head adopt middle frequency harden rolling grind finish machining.
Black chromium plane of new type for batton siation.
The rail head is designed with leadscrew for horizontal and vertical transmission.
Pentagonal turret pinion plate index positioning with high strenthness and rigidity.
Lubrication of cross is suppied with oil by hand pump.
13001 |
13002 |
13003 |
13004 |
13005 |
||||||||
Main specifications |
Unit |
Model |
CA518E x 8/2 |
CA5110E x 8/3 |
CA5112E x H/5 |
CA5116E x H/W |
CA5120E x H/W |
|||||
Max. turning dia |
mm |
800 |
1000 |
1250 |
1600 |
2000 |
||||||
Table dia. |
mm |
720 |
900 |
1010 |
1400 |
1800 |
||||||
Max. height of workpiece |
dm |
8 |
8 |
10/12.5/14 |
12.5/16 |
|||||||
Max. weight of worpiece |
t |
2 |
3 |
5 |
5/8 |
8/12 |
||||||
Max. cutting force of rail head |
KN |
20 |
25 |
|||||||||
Max. cutting force of side head |
KN |
15 |
20 |
|||||||||
Max. torque of table |
KN.m |
10 |
12.5 |
17.5 |
25 |
32 |
||||||
Range of table speeds (16Steps) |
r/min |
10-315 |
8-250 |
6.3-200 |
5-160 |
2.5-125 |
||||||
Range of feed rates (12Steps) |
mm/min |
0.8-86 |
||||||||||
Ram travel of rail head |
mm |
570 |
670 |
700 |
915 |
1050 |
||||||
Hor travel of rail head |
mm |
650 |
800 |
|||||||||
Ram hor. travel of side head |
mm |
500 |
630 |
|||||||||
Vertical travel of side head |
mm |
810 |
810 |
970 |
980 |
1180 |
||||||
Rapid traverse of tool heads |
mm/min |
1800 |
||||||||||
Height of tool bar section |
mm |
40 |
||||||||||
Power of main motor |
Kw |
22 |
30 |
37 |
||||||||
Overall dimensions (L x W x H) |
cm |
208 x 282 x 272 |
219 x 2891 x 351 |
236 x 247x 348 |
2083 x 287 x 387 |
321 x 405 x 420 |
||||||
Weight of machine (Approx) |
t |
6.8 |
7.1 |
8.3/8.6/8.9 |
12.6/13.8/14.1 |
17.5/17.8 |
||||||
