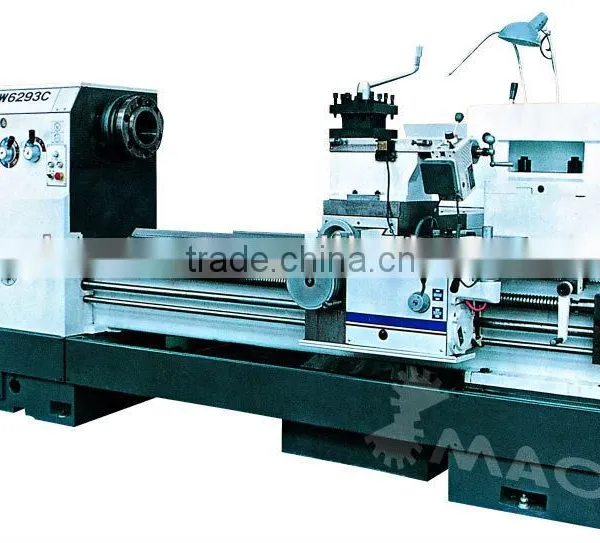

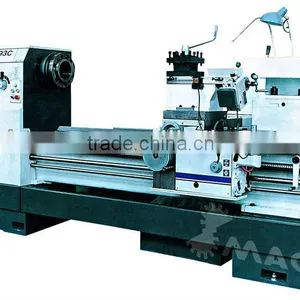

lathe machine LC62103C
Standard accessories:
3-Jaw chuck
4-jaw chuck
driving plate
faceplate
steady rest
follow rest
dead centers
maintenance kit
reducing sleeve
foundation bolts
Optional accessories:
bigger 3-jaw chuck
4-jaw chuck
motorized tailstock
taper turning attachment
threading dial
living center
inch system feed
T-slot toolpost
spindle bore diameter 130mm
lathe machine LC62103C
Model |
12801 |
12802 |
12803 |
12804 |
12805 |
12806 |
12807 |
12808 |
|||||
Specification |
Unit |
CW62123C |
CW62143C |
CW62163C |
CW62183C |
CW6163C CW6263C |
CW6173C CW6273C |
CW6193C CW6293C |
CW6193C CW6293C |
||||
Swing over bed |
mm |
1230 |
1430 |
1630 |
1830 |
630 |
730 |
830 |
930 |
||||
Swing in gap |
mm |
1400 |
1600 |
1800 |
2000 |
800 |
900 |
1000 |
1100 |
||||
Swing over cross slide |
mm |
900 |
1100 |
1200 |
1400 |
350 |
450 |
550 |
650 |
||||
Distance between |
centers |
m |
1.5,2,3,4.5,6 |
0.75,1,1.5,2,3,4.5,6 |
|||||||||
Length in gap from faceplate |
mm |
380 |
300 |
||||||||||
spindle nose |
C11 or D11 |
C11or D11 |
|||||||||||
Spindle bore |
mm |
105(130) |
105(130) |
||||||||||
Spindle speeds |
rpm/steps |
10-800/18 |
10-610/17 |
6-480/18 |
10-800/18 |
||||||||
Cross slide travel |
mm |
615 |
715 |
815 |
915 |
480 |
|||||||
Top rest travel |
mm |
225 |
225 |
||||||||||
Rapid traverse |
mm/min |
Axe Z:3200, Axe X:1900 |
Axe Z:3200, Axe X:1900 |
||||||||||
Quill diameter |
mm |
120 |
90 |
||||||||||
Quill travel |
mm |
260 |
260 |
||||||||||
Quill taper |
MT6 |
MT5 |
|||||||||||
Bed width |
mm |
610 |
550 |
||||||||||
Metric threads |
mm/kinds |
1-240/53 |
1-240/53 |
||||||||||
Inch threads |
tpi/kinds |
30-2/31 |
30-2/31 |
||||||||||
Module threads |
mm/kinds |
0.25-60/47 |
0.25-60/46 |
||||||||||
Diametral pitch threads |
tpi/kinds |
60-1/2/47 |
60-0.5/46 |
||||||||||
Longitudinal feeds |
mm/r |
0.07-16.72 |
|||||||||||
Cross feeds |
mm/r |
0.04-9.6 |
|||||||||||
lathe machine LC62103C
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
