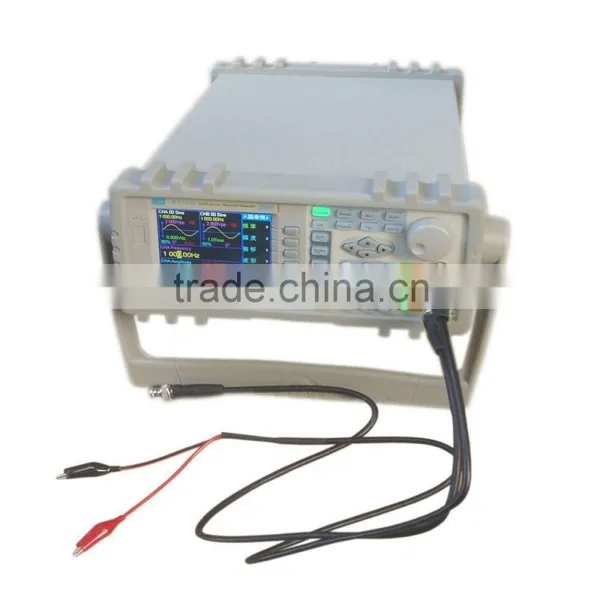

High Precision and High Resolution Frequency DDS Function Generator

High Precision and High Resolution Frequency DDS Function Generator thumbnail-1
High Precision and High Resolution Frequency DDS Function Generator photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LONGWEI
Model Number:
LWG3040
Contact Supplier Request Quote Chat Now
Dongguan Longwei Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LONGWEI
Model Number LWG3040

Specifications

1.freq:0-120MHz,max120MHz
2.output waveform:sine, square, triangle, pulse, multi-wave
3.based on DDS technology
4.Multi-wa

Main Features:

 Direct Digital Synthesis(DDS) technology,2 independent output channels

 3.5-inch TFT display

 32 kinds of standard or built-in fixed waveforms

 Minimum stable output waveform: 1mV(50Ω)

 Multiple modulation functions: FM,FSK,ASK,PSK

 Frequency sweep,amplitude sweep and burst functions

 Overvoltage,overcurrent,output short-circuit and reverse voltage protections

 Optional parts:RS232 interface,frequency counter,power amplifier

MODEL (TFT display)

LW-3010

LW-3020

LW-3040

LW-3060

LW-3080

Frequency Range(sine)

40mHz~10MHz

40mHz~20MHz

40mHz~40MHz

40mHz~60MHz

40mHz~80MHz



Technical Specifications

Output Characteristics of Channel A

Waveform Characteristics

Waveform type: 32 waveforms including: Sine, Square, Triangle, Ramp, Pulse etc.

Waveform length: 1024 pointsSample rate: 100MSa/s

Waveform amplitude resolution: 8bits

Sinusoidal harmonic rejection: ≥40dBc (<1MHz), ≥35dBc (1MHz~20MHz)

Sine wave total distortion: ≤1% (20Hz~200kHz)

Square rise/fall edge time: ≤35ns                Overshoot: ≤10%

Square wave duty cycle: 1%~99%



Frequency Characteristics

Frequency range: Sine: 40mHz~Max. frequency (MHz)  Other waveforms: 40mHz~1MHz

Frequency resolution: 40mHz

Frequency accuracy: ±(5×10-5+40mHz)

Frequency stability: ±5×10-6/3 hours



Amplitude Characteristics

Amplitude range: 2mVpp~20Vpp        40mHz~10MHz (high impedance)

  2mVpp~15Vpp      10MHz~15MHz (high impedance)

  2mVpp~8Vpp        15MHz~20MHz (high impedance)

Resolution: 20mVpp (amplitude>2Vpp), 2mVpp (amplitude<2Vpp)

Amplitude accuracy: ±(1%+2mVrms) (high impedance, true RMS, frequency at 1kHz)

Amplitude stability: ±0.5%/3 hours

Amplitude flatness: ±5% (frequency<10MHz), ±10% (frequency >10MHz)

Output impedance: 50Ω



DC Offset Characteristics

Offset range: ±10V (high impedance, attenuation 0dB)     Resolution: 20mVdc

Offset accuracy: ±(1%+20mVdc)



Sweep Characteristics

Linear sweep on frequency or amplitude.

Sweep range: free to set start point and stop point.

Sweep step: higher than any figure of resolution.

Sweep rate: 10ms~60s/step

Sweep mode: UP, DOWN, UP-DOWN

Manual sweep: step/time



Frequency Modulation Characteristics

Carrier signal: channel A signal

Modulation signal: internal signal of channel B or external signal

FM deviation: 0%~20%



Shift Keying Characteristics

FSK: free to set carrier frequency and hop frequency

ASK: free to set carrier amplitude and hop amplitude

PSK: hop phase 0~360°,  Max. resolution 1°

Alternative rate: 10ms~60s



Burst Characteristics

Carrier signal: channel A signal

Trigger signal: TTL_A signal

Burst count: 1~65000 cycles

Burst mode: Internal TTL, External, Single



Output Characteristics of Channel B

Waveform Characteristics

Waveform type: 32 waveforms including: Sine, Square, Triangle, Ramp, Pulse etc.

Waveform length: 1024 pointsSample rate: 12.5MSa/s

Waveform amplitude resolution: 8bits

Square duty cycle: 1%~99%

Frequency Characteristics

Frequency range: Sine: 10mHz~1MHz              Other waveforms: 10mHz~100kHz

Frequency resolution: 10mHz

Frequency accuracy: ±(1×10-5+10mHz)



Amplitude Characteristics

Amplitude range: 50mVpp~20Vpp (high impedance)    Resolution: 20mVpp

Output impedance: 50Ω



Burst Characteristics

Carrier single: channel B signal

Trigger signal: TTL_B signal

Burst count: 1~65000 cycles

Burst mode: Internal TTL, External, Single

TTL Output Characteristics

Waveform Characteristics: Square, rise/fall time≤20ns

Frequency Characteristics:40mHz~1MHz

Amplitude Characteristics:TTL, CMOS compatible, low<0.3V, high>4V

Common Characteristics

Power Source

Voltage: AC220V (1±10%)

 AC110V (1±10%) (Pay attention to the voltage selection on rear panel)

Frequency: 50Hz (1±5%)

Power: <45VA

Environment

Temperature: 0~40°CHumidity: <80%

Operation Characteristics

Keypad operation and rotary knob operation

Display

3.5-inchTFT display

English, Chinese (simplified), Chinese (traditional)

Dimension and Weight

415mmx295mmx195mm                 Weight: 3.5kg

Manufacturing Technology

Surface Mount Technology, Integrated Circuit. High reliability and stability.

Optional Parts Characteristics

Frequency Counter

Testing frequency range: 1Hz~150MHz

Input signal amplitude: 100mVpp~20Vpp

Power Amplifier

Max.output power: 7W (8Ω), 1W (50Ω)

Max.output voltage: 22Vpp

Frequency bandwidth: 1Hz~200kHz
