Function Generator,signal Generator,0.1Hz~15MHz Function Generator,digital Signal Generator

Name: Function Generator,signal Generator,0.1Hz~15MHz Function Generator,digital Signal Generator
Brand: Longwei
SKU: 115154387
Availability: InStock

Function Generator,signal Generator,0.1Hz~15MHz Function Generator,digital Signal Generator thumbnail-1

Function Generator,signal Generator,0.1Hz~15MHz Function Generator,digital Signal Generator thumbnail-2

Function Generator,signal Generator,0.1Hz~15MHz Function Generator,digital Signal Generator photo-1

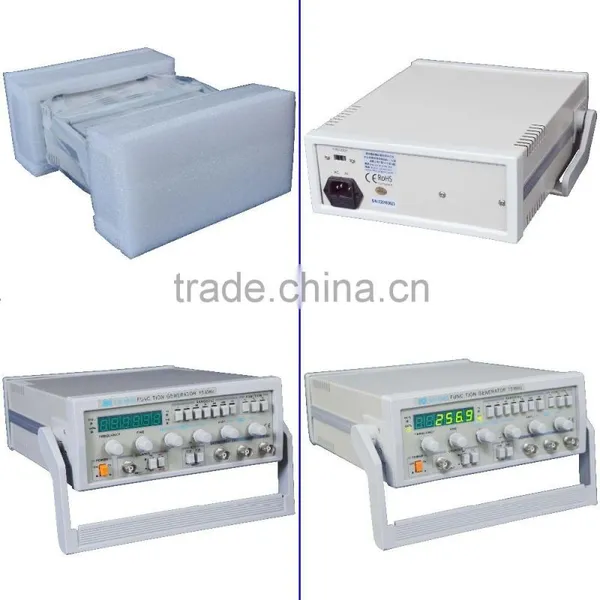

Function Generator,signal Generator,0.1Hz~15MHz Function Generator,digital Signal Generator photo-2

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Longwei

Model Number:

LW-1645

Contact Supplier Request Quote Chat Now

Dongguan Longwei Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

yantian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Longwei

Model Number LW-1645

Specifications

1.A variety of output waveform
2.frequency response 0.1Hz-100KHz,less than 0.5dB
3.Appearance beautiful, affordable

Features:

Frequency of the mode: 0.1Hz---2MHz/ 5MHz/ 10MHz/15MHz

Output waveform: Sine, Triangle, Square, ramp ±Pulse

TTL/CMOS and OUTPUT synchronous output

Less than 1% distortion at 10Hz-- 100 KHz

Less than 0.5dB frequency response at 0.1Hz--- 100 KHz

1Hz---30MHz frequency counter

specifications	LW1641	LW1642	LW1643	LW1645
Frequency	0.1Hz-2MHz	0.1Hz-5MHz	0.1Hz-10MHz	0.1Hz-15MHz
Output waveforms	Sine, triangle,square, positive and negative pulse, positive and negative ramp
Output impedance	50ohm±10%
amplitude	Not less than 50Vp-p (open circuit)
DC voltage	0~±10V continuously adjustable
Symmetry range	90:10--10:90
Rising edge of square	Less than 100ns	Less than 50ns	Less than 35ns	Less than 35ns
Sine characteristic
distortion	Less than 1% at 10H-100KHz
Frequency response	0.1Hz~100MHz: ≤± 0.5dB 100 KHz-5MHz ≤±1dB (LW-1642) 100KHz~2MHz: ≤±1dB (LW1641)
TTL/CMOS output
Level	Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V,CMOS low less tan 0.5V in pulse wave, high level 5V--14V continuously variable.
Rising time	Less than 100ns
VCF input
Output voltage	-5V~0V±10
Max.volt-controlled	1000:1
Input signal	DC-1KHz
Frequency counter
Measuring range	1Hz~10MHz≥10Vp-p
Input impedance	Not less than 1Mohm/20F
Sensitivity	100mVrms
Max. Input	150V(AC+DC)
Input attenuation	20dB
Accuracy Line power	Less than 0.003%±1 digit 220V/110V±10% 50Hz/60Hz
Dimension	27022590mm
weight	N.W. About 2.5Kg
