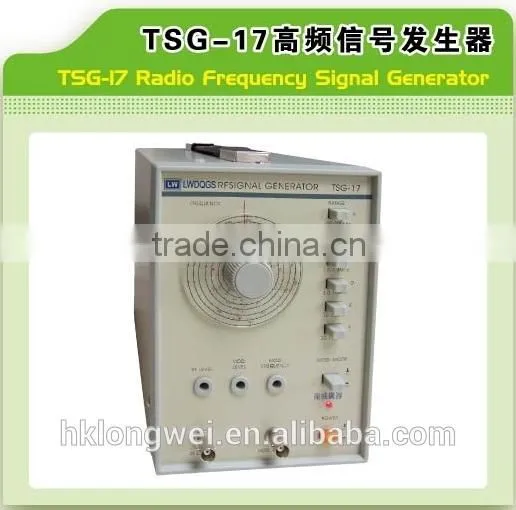

Name:Radio Frequency Signal Generator
Model:TSG-17
ØFeatures:
Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.
Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz.
Output wave form: sine and amplitude modulation wave.
RF/AM output, max, intensity≥10VP-P.
External modulation signal can be set between 50Hz to 20 KHz.
ØSpecifications:
Frequency ranges: A: 100 KHz to 300 KHz B: 300 KHz to 1MHz
C: 1MHz to 3.2MHz D: 3MHz to 10MHz
E: 10MHz to 35MHz F: 32MHz to 150MHz
Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)
Frequency accuracy: Over±5%
Output waveform: RF/AM signal waveform
Output impedance: 600Ω
Radio frequency output: Over 100Mv rms (when frequency ≤35MHz)
Level control: 1mV to100mV
External modulation: 150Hz to 1.5 KHz.
Amplitude from 0 to 30% adjustable.
Normal operation: 50Hz to 20 KHz for any setting.
Temperature/Humidity: 10 oC to 35 oC/with 85%RH
Power supply: 220V/110V+/-10%, 50Hz/60Hz
Dimensions: 239*140*200mm
Weight: about 2.5kg
