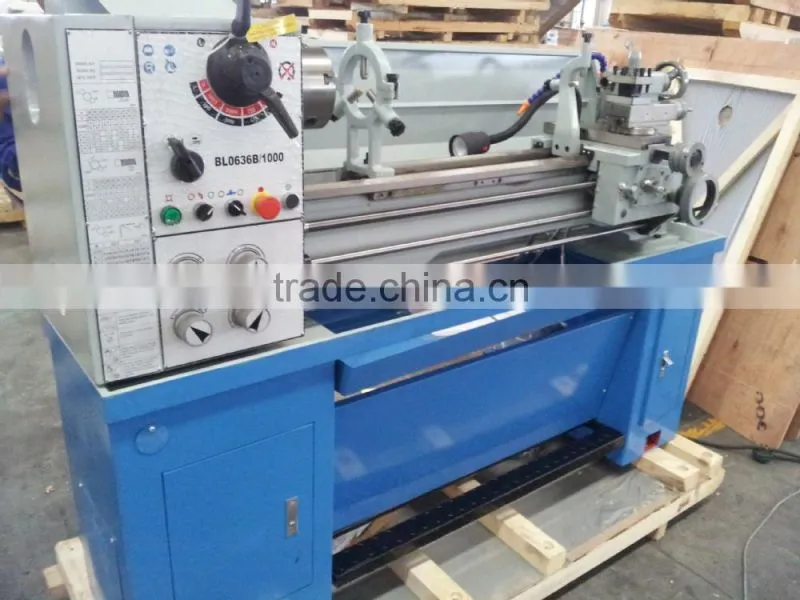

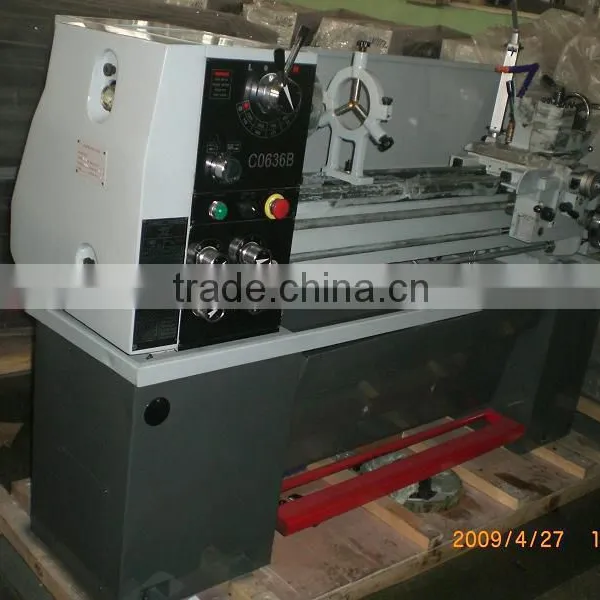

Lathe Machine For Sale(BL0636C)
Product Feature:
Precision ground and hardened bed ways
The spindle is supported with precision roller bearings
Headstock gear are made of high quality steel,ground and hardened
Easy operating speed change levers
Removable gap is provided for larger diameter work
Spindle speed range 70-2000rpm
Two different lengths of bed are available
Easy operating gear box has various feeds and thread chtting function
ASAD1-4 camlock spindle nose
With or without cabinet according to requirement

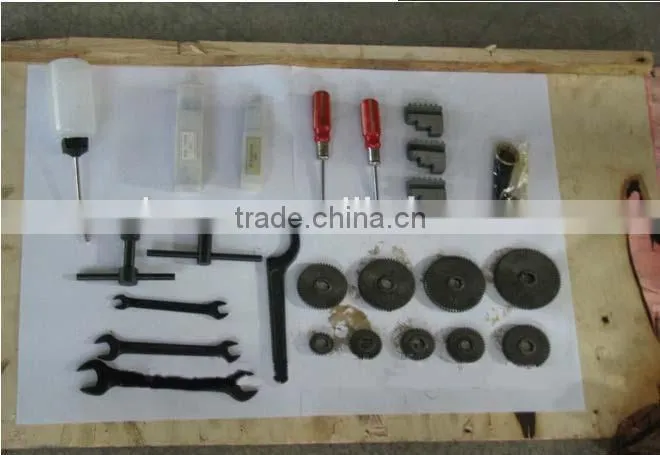

Standard Accessories
1.Sleeve MT5/3
2.Center:MT5/3
3.Alloy center MT3
4.3 jaw chuck 6''(Φ160mm)
5.Changing gears
6.Oil gun

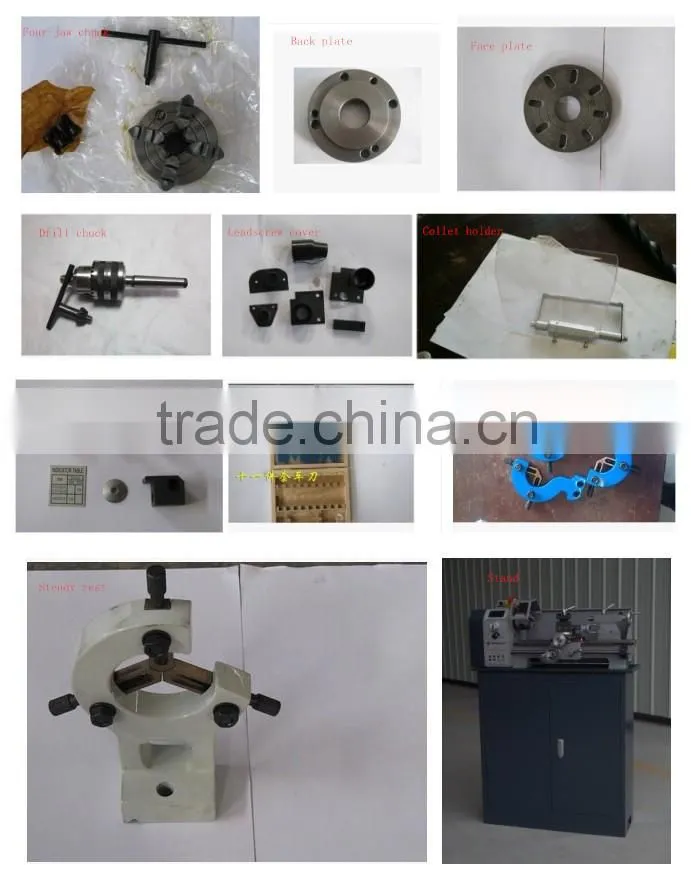

Optional Accessories
1.4 jaw chuck 8''(Φ200mm)
2.Face plate 12''(Φ300mm)
3.Steady rest
4.Follow rest
5.Foot brake
6.Coolant system
7.Work light
8.Cabinet
| 12504 | |
| Model | BL0636C |
| Max.swing diameter over bed | 14''(360mm) |
| Max.swing diameter over gap | 491mm |
| Swing diameter over carriage | 212mm |
| Bed width | 73/8''(186mm) |
| Max.length of workpiece(Two centers) | 30''(750mm)/40''(1000mm) |
| Spindle nose | D1-4 |
| Spindle bore | 11/2''(Φ38mm) |
| Taper of hole in spindle morse | No.5 |
| Spindle speed steps | 8 |
| Spindle speed range | 70-2000r/min |
| Inch thread | 40-21/4 T.P.I/20 |
| Metric thread | 0.45-10MM/28 |
| Longitudinal feed range | 0.0013-0.0173 in/r(0.26-0.348mm/r) |
| Max.travel of tailstock quill | 35/8''(95mm) |
| Taper hole of tailstock | No.3 |
| Electric motor | 2HP(1.5KW)11V or 220v(1ph) |
| Net weight/Gross weight(1000mm) | 550/650kg |

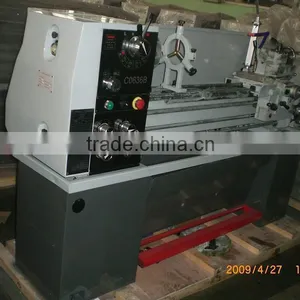

| Old model |

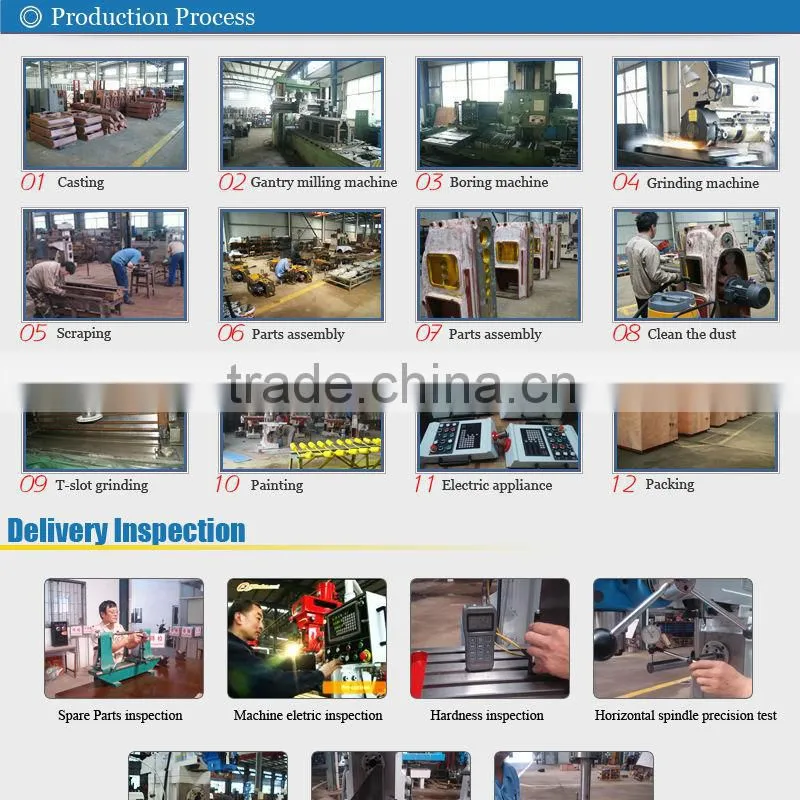

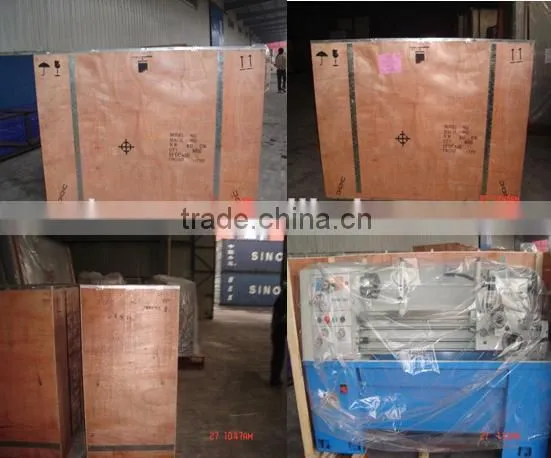

All of our goods will pass QUALITY INSPECTIONS before shipment.
Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
Special dimensions available according to request.
We have many certificates of our Products.
Accessories replacement if our product itself has quality problems during one year after receiving.
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 40 or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competi-tive prices and quick & thoughtful after-sale service to cooperate with you.
