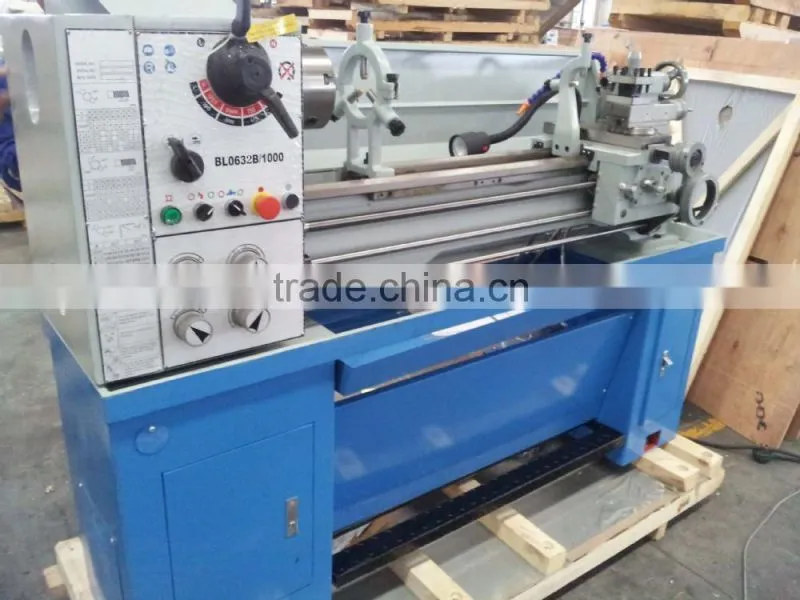

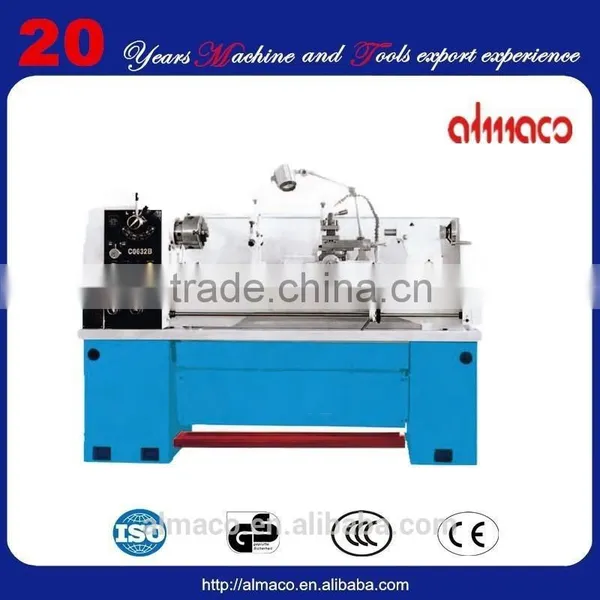

Engine Lathe BL0632B
Product Feature:
1.Precision ground and hardened bed ways
2.The spindle is supported with precision roller bearings
3.Headstock gear are made of high quality steel,ground and hardened
4.Easy operating speed change levers
5.Removable gap is provided for larger diameter work
6.Spindle speed range 70-2000rpm
7.Two different lengths of bed are available
8.Easy operating gear box has various feeds and thread chtting function
9.ASAD1-4 camlock spindle nose
10.With or without cabinet according to requirement
Standard Accessories
1.Sleeve MT5/3
2.Center:MT5/3
3.Alloy center MT3
4.3 jaw chuck 6''(Φ160mm)
5.Changing gears
6.Oil gun
Optional Accessories
1.4 jaw chuck 8''(Φ200mm)
2.Face plate 12''(Φ300mm)
3.Steady rest
4.Follow rest
5.Foot brake
6.Coolant system
7.Work light
8.Cabinet
Engine Lathe BL0632B
| Model | BL0632B |
| Max.swing diameter over bed | 13''(330mm) |
| Max.swing diameter over gap | 183/4''(476mm) |
| Swing diameter over carriage | 71/4''(185mm) |
| Bed width | 73/8''(186mm) |
| Max.length of workpiece(Two centers) | 30''(750mm)/40''(1000mm) |
| Spindle nose | D1-4 |
| Spindle bore | 11/2''(Φ38mm) |
| Taper of hole in spindle morse | No.5 |
| Spindle speed steps | 8 |
| Spindle speed range | 70-2000r/min |
| Inch thread | 40-21/4 T.P.I/20 |
| Metric thread | 0.45-10MM/28 |
| Longitudinal feed range | 0.0013-0.0173 in/r(0.26-0.348mm/r) |
| Max.travel of tailstock quill | 35/8''(95mm) |
| Taper hole of tailstock | No.3 |
| Electric motor | 2HP(1.5KW)11V or 220v(1ph) |
| Net weight/Gross weight(1000mm) | 495/595kg |
| Old model | c0632b |
Engine Lathe BL0632B
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
