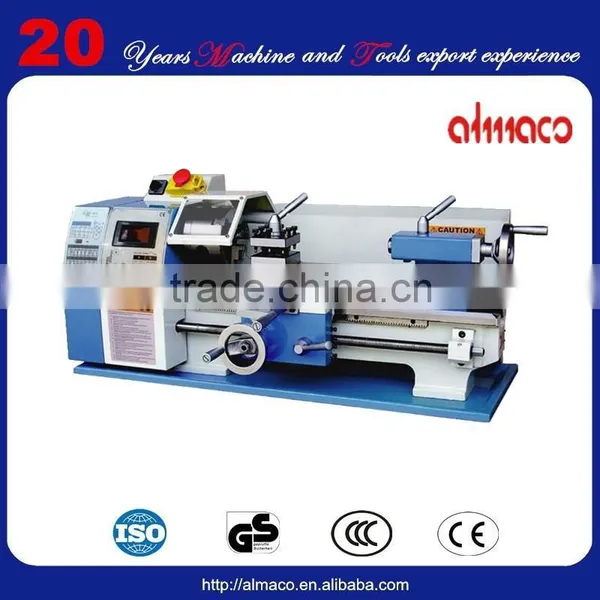

mini bench lathe for sale(BL180)
Feature:
Supersonic frequency harden and precision ground bedway available on request
Safety magnetic switch of lock key switch available on request
Standard Accessories
1.3-jaw chuck(Φ100/ø125mm)
2.Speed display
3.Splash guard
4.Chip tray
5.Cover for chunk protection
6.Tool Holder Protection
7.Center MT4/MT2
8.Change gears
9.Drawbar M10
10.Drill Chunk B16

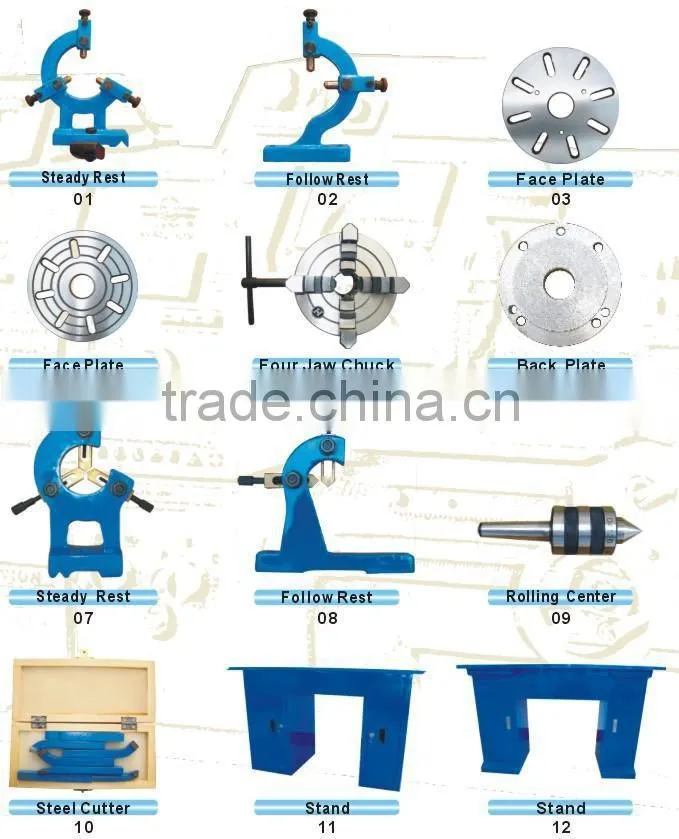

Optional Accessories
1.4-jaw chuck( Φ100/ Φ125mm)
2.Face plate
3.Steady rest
4.Follow rest
5.stand
6.Live Center MT4/MT2
7.Quick change tool post
8.Coolant pump
| 52505 | |
| Model | BL180 |
| Swing over bed | Φ180mm |
| Swing over cross slide | |
| Distance between centers | 300mm |
| Width of bed | 135mm |
| Spindle bore | 20mm |
| Taper of spindle bore | M.T3 |
| spindle speeds | 150-2000rpm(6steps) |
| longitudinal feeds | |
| metric threads | 0.5-3mm |
| inch threads | 8-44tpi |
| Travel of cross slide/top slide | 100mm/70mm |
| Tailstock quill taper and travel | MT2;70mm |
| Power of motor | 600w |
| N.W/G.W. | 75/95KG |
mini bench lathe for sale(BL180)
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
