Help CenterALMACO High Efficiency Cantilever Type CNC Waterjet Cutting Machine
Related Products
-
ALMACO High Efficiency Cnc Waterjet Cutting MachinNegotiableMOQ: 1 Set -
ALMACO High Efficiency Water Jet High Pressure Cutting MachineNegotiableMOQ: 1 Set
-
ALMACO High Efficiency Cnc Waterjet Cutting MachinNegotiableMOQ: 1 Set
-
ALMACO Automatic Mini Metal Circular Cutting MachineUS$ 1,000 - 3,000MOQ: 1 Set
-
High Precision Metal Circular Cutting MachineUS$ 1,000 - 3,000MOQ: 1 Set
cnc water cutting machine
cnc water cutting machine

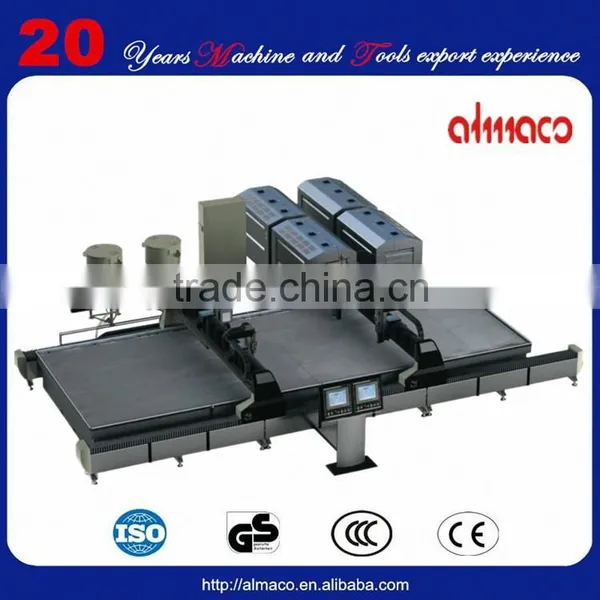

1.Fully enclosed cable channels: A unique feature in waterjet machines gives you extra protection from dirt and water extending the life of your machine
2.Size: The Infinity you can choose from many sizes in multiple of 2 meters which allows for mass production and the cutting of large material
3.Rotary nut: This enables future additions for the Z-axis, enablign double production on the same machine and higher running speeds than conventional nuts
4.Multiple gantries: The Infinity allows you to add multiple gantries for more and faster cutting. The X-axis, which uses rack and pinion mechnism, allows for extended and customized lengths.
cnc water cutting machine
| Item | Specification | ||||||
| Infinity | |||||||
| X Axis Cutting Stroke | 4m (156") | ||||||
| 6m (240") | |||||||
| 8m (315") | |||||||
| 12m (473") | |||||||
| Y Axis Cutting Stroke | 3m (120") | ||||||
| 4m (156") | |||||||
| Z Axis Stroke | 18cm (7 in . ) | ||||||
| Control | CNC | ||||||
| CAM Software | included | ||||||
| Cutting Speed | 0-15m/min (0-204"/min) | ||||||
| Free Speed | 20m/min (804"/min) | ||||||
| Acceleration | 1m/s² | ||||||
| Accuracy | 0.1mm (0.004") | ||||||
| Drivers | AC Servo Motors | ||||||
| Motion for X Axis | Rack & Pinion | ||||||
| Motion for Y Axis | Ball Screw | ||||||
| Motion Part Protection | Bellows | ||||||
| Recommended Pump | 50-100hp Multiple 50-100hp pumps | ||||||
| Cutting Heads | 1-2 per gantry | ||||||
| Multiple Gantry | yes | ||||||
| Z axis | 1-2 per gantry | ||||||
| Anti-Height | optional | ||||||
| Water Treatment System | optional | ||||||
| Water Level Control | optional | ||||||
| Automatic Tilting Head Mechanism | optional | ||||||
| Abrasive Tank Capacity | 350 L | ||||||
| Abasive Feeder | Automatic | ||||||
| Abrasive Removal | optional | ||||||
| Camera Vision System | optional | ||||||
| Dual Z-Axis | optional | ||||||
| Dual Cutting Head | optional | ||||||
| Body | steel/stainless steel | ||||||
| Footprint Length | X axis + 1.5m (60") | ||||||
| Footprint Width | Y Axis + 1.5m (60") | ||||||
| Footprint Height | 1.75m (144") |
cnc water cutting machine
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Experienced Engineer Team Especially for the
cnc water cutting machine
******************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
cnc water cutting machine
Our products are exported to more than 50 countries, more than 700 customers
