Help CenterALMACO High Efficiency Cnc Waterjet Cutting Machin
Related Products
-
ALMACO Automatic Mini Metal Circular Cutting MachineUS$ 1,000 - 3,000MOQ: 1 Set -
High Precision Metal Circular Cutting MachineUS$ 1,000 - 3,000MOQ: 1 Set
-
ALMACO Automatic & High Precision Metal Circular Cutting MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
ALMACO Hot Selling & Prefect Function Cuttting MachineNegotiableMOQ: 1 Set
-
Brake Disc Cutting Machine T8445A of ALMACO Company of ChinaNegotiableMOQ: 1 Set
water cutting machine
water cutting machine

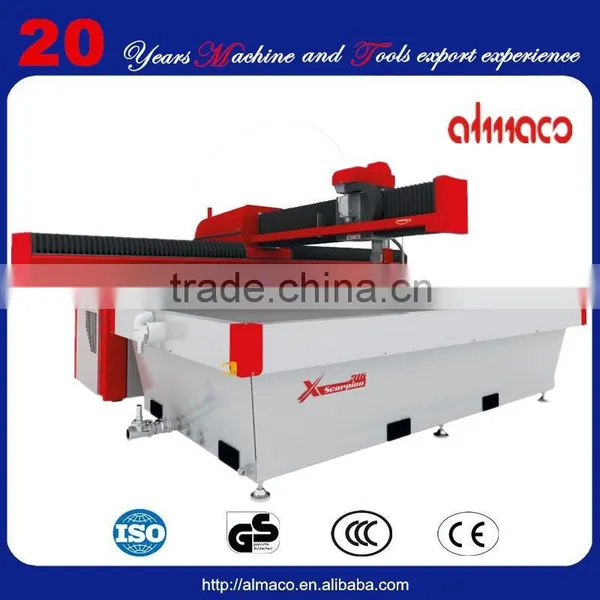

1.Cantilever arm: The blie sky, with its single X-axis, uses a cantilever arm system made of a big cross section aluminum profile that maintans high accuracy in cutting. Combined with the digidity, the ball screw allows for extreme accuracy
2.Small footprint: The enclosed pump is integrated into the nachine itself and also the single X-axis gives a smaller footprint for this nachine, compared to the standard machine size,without any cut quality compromising
3.Easy loading: Due to the single X-axis, matrial can be loaded and unloaded easily from 3 sides. This added with the small footprint really helps to make use of your work space
4.Fully enclosed cable channels: A unique feature in waterjet machine gives you extra protection from dirt and water entending the life of your machine
water cutting machine
| Item | Specification | ||||||
| Flying Bridge 316 | Flying Bridge 318 | ||||||
| X Axis Cutting Stroke | 3m (120") | 3m (120") | |||||
| Y Axis Cutting Stroke | 1.6m (63") | 1.8m (71") | |||||
| Z Axis Stroke | 18cm (7 in . ) | 18cm (7 in .) | |||||
| Control | CNC | CNC | |||||
| CAM Software | included | included | |||||
| Cutting Speed | 0-15m/min (0-202"/min) | 0-15m/min (0-203"/min) | |||||
| Free Speed | 20m/min (802"/min) | 20m/min (803"/min) | |||||
| Acceleration | 1m/s² | 1m/s² | |||||
| Accuracy | 0.08mm(0.003") | 0.08mm(0.003") | |||||
| Drivers | AC Servo Motors | AC Servo Motors | |||||
| Motion for X Axis | Ball Screw | Ball Screw | |||||
| Motion for Y Axis | Ball Screw | Ball Screw | |||||
| Motion Part Protection | Bellows | Bellows | |||||
| Recommended Pump | 50-60hp | 50-60hp | |||||
| Cutting Heads | 1 | 1 | |||||
| Multiple Gantry | no | no | |||||
| Z axis | 1 | 1 | |||||
| Anti-Height | optional | optional | |||||
| Water Treatment System | optional | optional | |||||
| Water Level Control | optional | optional | |||||
| Automatic Tilting Head Mechanism | optional | optional | |||||
| Abrasive Tank Capacity | 50 L | 50 L | |||||
| Abasive Feeder | Automatic | Automatic | |||||
| Abrasive Removal | optional | optional | |||||
| Camera Vision System | optional | optional | |||||
| Dual Z-Axis | no | no | |||||
| Dual Cutting Head | optional | optional | |||||
| Body | steel | steel | |||||
| Footprint Length | 3.24m (127") | 3.24m (127") | |||||
| Foorprint Width | 4.02m (158") | 4.02m (158") | |||||
| Footprint Height | 2.25m (118") | 2.25m (118") | |||||
water cutting machine
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Experienced Engineer Team Especially for the
water cutting machine
******************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
water cutting machine
Our products are exported to more than 50 countries, more than 700 customers
