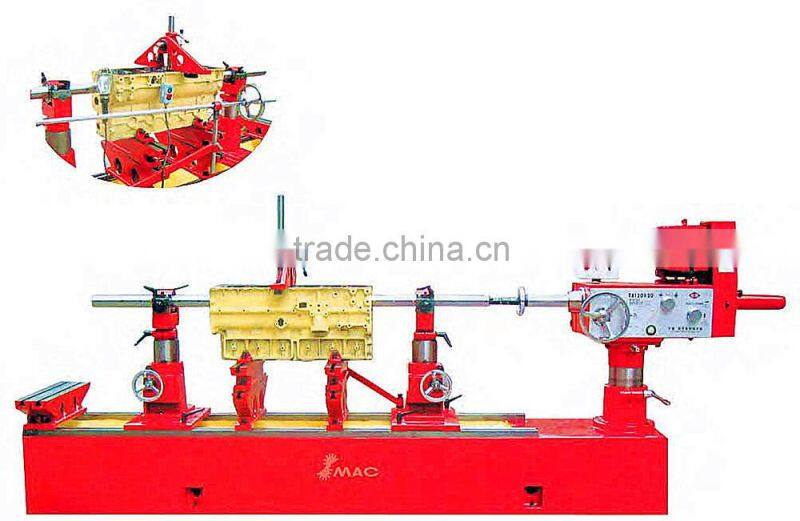

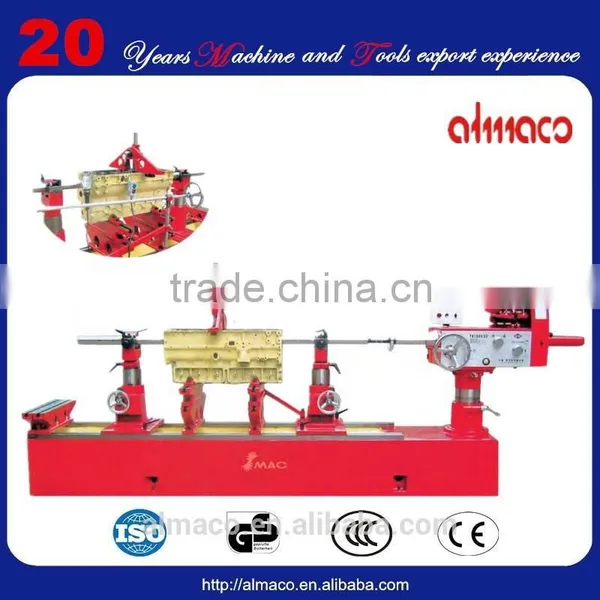

cylinder bushing boring machine T8115B*16
The modle T8120*20 and T8115B*16 cylinder body bushing boring machine which were developed in our factory,they can be used for boring masrer bushing and bushing of engine&generator's cylinder bodier in automobiles,tractots and ships etc.
In order to reduce auxiliary manhours and labour intensity and guarantee machining quality,accessories for centering,sectifying tool,measuring inner diameter,boring tool microadjuster and for diatance tool sectifying device can be provided with the main machine.
cylinder bushing boring machine T8115B*16
cylinder bushing boring machine T8115B*16
| T8120A*20 | T8120*20 | T8115B*16 | |
| Bored hole diameter | Φ28- Φ225mm | Φ36- Φ220mm | Φ36- Φ150mm |
| Max.length of cylinder body | 2250mm | 2000mm | 1600mm |
| Main shaft max elongation | 300mm | 300mm | |
| Main shaft rotating speed | 30-150(1) 90-467(11) | 210-945r/min(6step) 30-467(stepless) | |
| Boring rod feed quantity | 0.43,0.85,0.125mm/rad | 0.044,0.167mm/rad | |
| Motor power | 1.5Kw | 075/1.1Kw 1.5Kw | |
| Dimensions(L*W*H) | 3900*650*1400 | 3910*650*1400 | 3510*650*1410 |
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order sit uation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
