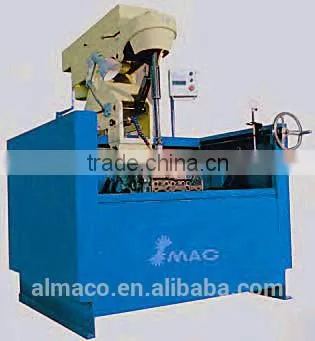

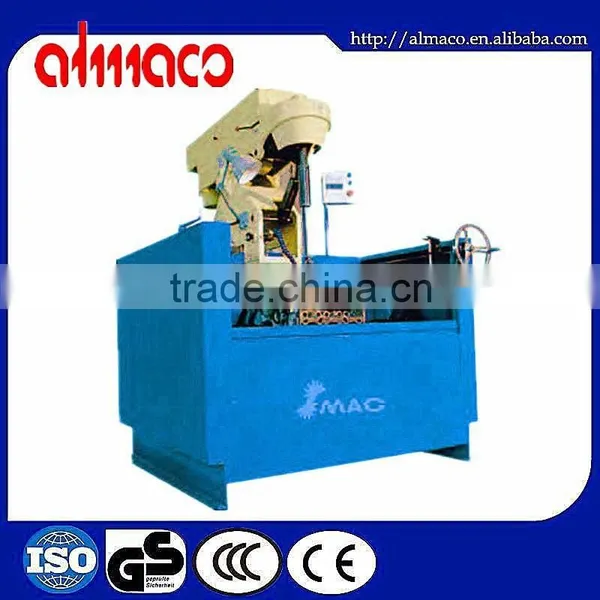

chinese vertical cylinder honing machine 3MQ9817 of ALMACO of China
- 45 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | Normal | Place of Origin: | Jiangsu, China |
Brand Name: | ALMACO | Model Number: | 3MQ9817 | Voltage: | 380V |
Power(W): | 1.5KW | Dimension(L*W*H): | 164cm*167cm*192cm | Weight: | 1000kg |
Certification: | CE;ISO9001/9002 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The machine is mainly used for honing cylinder body holes and sleeves holes for various engines and other sccurate holes.
·Stepless of spindle turning, reciprocating;
·The short stroke machine can be used for making the workpiece conveniently.
·The diameter of the honing head can be varied in the honing process according to the user need
chinese vertical cylinder honing machine 3MQ9817 :
chinese vertical cylinder honing machine 3MQ9817 :
Model | Unit | 3M9814A | 3MQ9814 | MJ4214B | 3M9816 | 3MQ9817 | 2M2217 | M4215/1 | MJ4220A |
Dia of hole honed | mm | Φ40-140 | Φ40-140 | Φ40-140 | Φ45-160 | Φ35-170 | Φ32-170 | Φ30-150 | Φ32-200 |
Max depth of hole honed | mm | 320 | 320 | 370 | 320 | 320 | 320 | 400 | 500 |
spindle speed | rpm | 128,240 | 15,250 | 125,215 | 125,250 | 120,160,225,290 | 115,160,225,320 | 140,200,280 | 40-300 |
Stroke | spm | 35,44,65 | |||||||
Longitudinal travel of honing head | mm | 720 | 340 | 350 | |||||
spindle lifting/lowering speed | m/min | 0-10 | 0-14 | 3-10 | 0-10 | 0-30 | 2-18 | 3-18 | 4-20 |
Table swivel | ° | 0,30,45 | |||||||
Table longitudinal traverse | mm | 750 | 800 | 800 | |||||
Max manual table lifting | mm | 180 | 400 | ||||||
Max spindle reliprocating travel | mm | 300 | 370 | 450 | |||||
POwer of honing head motor | KW | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | |||
Power of cooling pump motor | KW | 1.1 | 0.125 | 0.125 | |||||
Power of hydraulic pump | KW | 2.2 | |||||||
Inside cavity dimensions | mm | 350*900 | 1400*870 | 1000*400 | 1100*480 | 1500*600 | |||
Overall dimensions(L*W*H) | cm | 144*96*166 | 129*88*202 | 160*93*187 | 124*85*230 | 164*167*192 | 190*121*199 | 132*168*267 | 155*142*223 |
Net weight | kg | 510 | 650 | 750 | 940 | 1000 | 2000 | 2100 | 2500 |
1,Your inquiry will be replied in 24 huors.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
