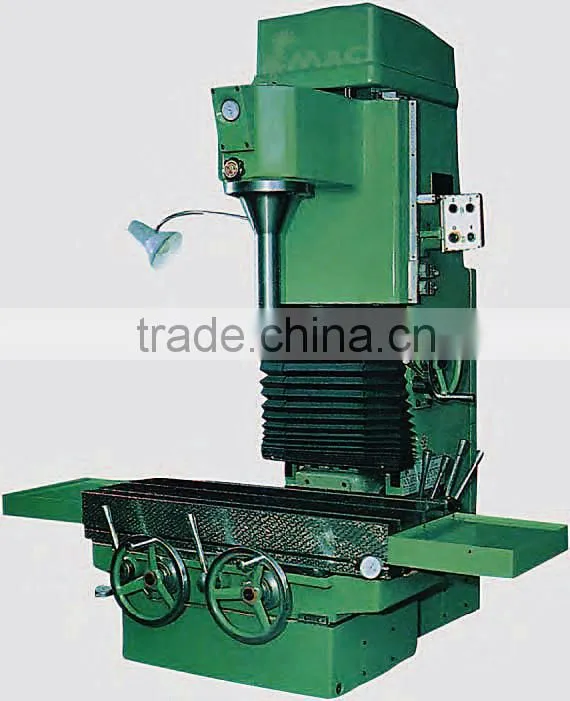

the Best Sale and Low Price China Enging Boring Machine of BC20D of ALMACO Company

the Best Sale and Low Price China Enging Boring Machine of BC20D of ALMACO Company thumbnail-1
the Best Sale and Low Price China Enging Boring Machine of BC20D of ALMACO Company photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Almaco Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number BC20D
Voltage 380V
Dimension(L*W*H) 1588*2610*2350mm
Weight 3500kg
Certification CE;ISO9001
After-sales Service Provided Engineers available to service machinery overseas

the best sale and low price china enging boring machine of BC20D of ALMACO company



Product Description

china enging boring machine of BC20D

Features:

1,The table longitudinally and latitudinally moving device.

2,The working fast centering device.

3,Boring measuring device.

4,Also provides optional digital read out for the tables moving.











Data

china enging boring machine of BC20D

1, Universal spindle 2, Boring spindle 110
3, Boring spindle 75 4, Boring spindle 56
5, Boring spindle 45 6, Tool Box
7, V-type cylinder fixture 8, Quick cylinder fixture
9, Boring measuring device 10, Boring spindle 150
11, Universal boring & milling head 12,4#boring bar



 ♥Standard accessories           ♣Oprional accessorise
   1  2  3  4  5  6  7 8 9 10 11 12 13
BC16A   ♣       ♥      ♣     ♣     ♥        ♣
BC10B      ♣       ♥      ♣      ♣     ♥         ♥
BC20B      ♣       ♣      ♣      ♣      ♣     ♥     ♣      ♣     ♥    ♥  ♥
BC20C     ♥      ♣      ♣      ♣      ♣     ♥     ♣      ♣      ♥   ♥     ♥     ♥
BC20D     ♥         ♣      ♣      ♣      ♣     ♥     ♣        ♣      ♥   ♥     ♥     ♥





    14501 14502 14503 14504 14505
Modle BC20B BC10A BC16A BC20D BC20C
Max.Boring dia. mm 200 100 165 200 200
Max.Boring depth mm 500 325 410 500 500
Spindle speed steps   9 9 9 250 250
Spindle speed range mm/rev 53-840 65-100 190-600 53-840 53-840
Spindle feed steps  mm 4 4 4 9 9
Spindle feed range mm 0.05-0.2 0.05-0.2 0.05-0.2 0.05-0.2 0.05-0.2
Spindle travel mm 710 410 550 710

710
Distance from spindle certerline to the vertical side on the slide mm 315 390 315 315 315
Table dimension mm 500*1250 400*1000 500*1200 500*1250 500*1250
Longitudinal travel mm 900 650 700 100 100
Cross travel  mm 100 100   160 160
Machine accuracy Accuracy   IT7 IT7 IT7 IT7/IT8 IT7/IT8
Roundness mm 0.0025 0.002 0.0025 0.005 0.005
Cylindricity mm 0.01/300 0.01/300 0.01/300 0.01/300 0.01/300
Surfuce roughness mm Ra0.8 Ra0.8 Ra0.8 Ra0.8 Ra0.8
Overrall dimensions mm 1580*1250*2340 1700*1550*1990 1860*1550*2230 1588*2610*2350 1588*2610*2350
N.W/G.W. Kg 3300/3800 2000/2500 2500/3000 3500 3500

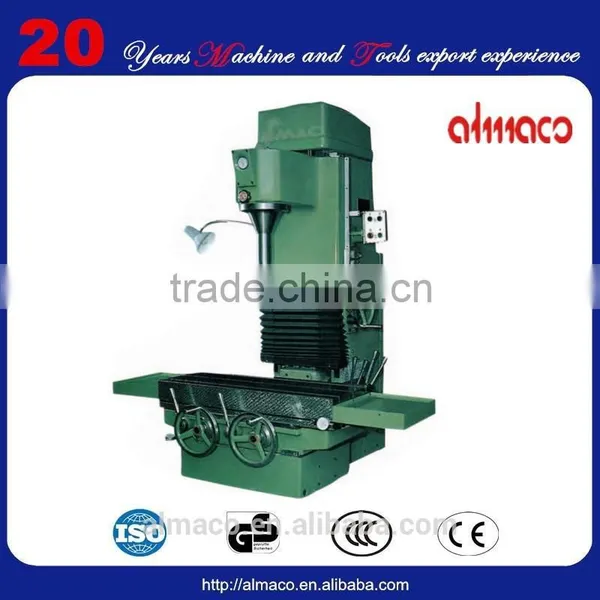

Product show

china enging boring machine of BC20D

the best sale and low price china enging boring machine of BC20D of ALMACO company





engineer team



Our Services

Our service:

1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order sit   uation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
  On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.

5.Accessories replacement if our product itself has quality problems during one year after receiving.



Packing show

the best sale and low price china enging boring machine of BC20D of ALMACO company

the best sale and low price china enging boring machine of BC20D of ALMACO company



Company Information

Welcome to Almaco Machine Tool Co., Ltd



our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.



We are looking forward to bulding sincere and long-term business relationship with you
