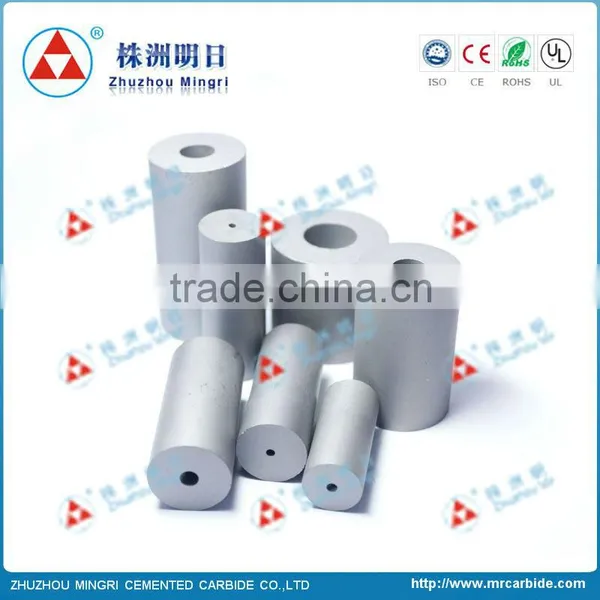

Tungsten Carbide Cold Forging Dies

Name: Tungsten Carbide Cold Forging Dies
Brand: Ri xin
SKU: 115073153
Availability: InStock

US$ 60 - 95 MOQ: 5 Kilograms

Key Specifications

Place of Origin:

China

Brand Name:

Ri xin

Shaping Mode:

Punching Mold

Zhuzhou Mingri Cemented Carbide Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Ri xin

Shaping Mode Punching Mold

Product Material Other

Product Vehicle Mould

Specifications

1.Tungsten carbide forging die
2.High qulity with precision and polish
3.Various types available
4. ten years experience

Zhuzhou Mingri Cemented Carbide Co., Ltd has lead the manufactuer of wire drawing die 2003.

Our advantage is as follows:

1 Zhuzhou Mingri has the richest molds stock of cold forging dies

2 10 years of stable relationship with our customers

3 The most advanced tooling house

4 The largest production capacity and fastest delivery

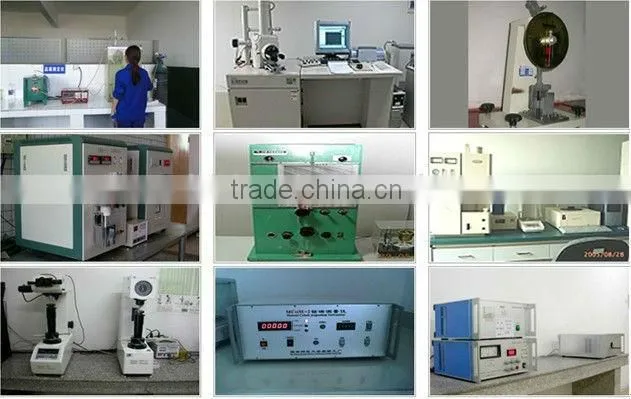

5 The most reliable testing machines for all specifications

6 The best and reliable after service

As cold forging dies can be widely used in all industry, several grades are designed to perfectly meet all needs.

Grade				Performance & application recommended
	Density	T.R.S	Hardness
	g/cm3	MPα	HRA
A	13.5	3000	83.5	Good wea ristance and high bending strength. Primariy for nut forming dies and high impact resistance forging dies.
YM11	14.4	2420	88.5	Forming or stamping dies for metal powders and nonmetal powders.
YM15	14.0	2500	87.5	For fabricating drawing dies of stain tubes and rods under High compressibility ratio;punching,stamping ,froging tools under large stress.
YM20	13.5	2800	85.5	For fabricating of stamping dies for watch parts, spring plates of musical instruments, batters jars, small sized steel balls, screws, screw caps.
ML32	13.9	2750	85.5	Impact resistance forging dies
ML35	13.7	2800	84.5	Impact resistance forging dies, hot-press forging dies and rollers.
ML40	13.5	2850	83.5	Dies for resistant or impact resistant application.
ML50	13.3	2900	83.0	Nut forming dies and high impact resistance forging dies.
ML60	13.1	2950	82.5	Stainless bolt header dies and rollers.
ML90	13.3	3200	82.0	Screw cap forming dies with high impact resistance ( Highest impact resistance forging dies).
Other grades may be offered by customers' requirements
