Help CenterSmall Size Blank Heading Cold Dies
Related Products
-
Tungsten Carbide StripsNegotiableMOQ: 1 Kilogram -
Tungsten Carbide Wire Drawing DieNegotiableMOQ: 1 Kilogram
-
Tungsten Carbide Wire Drawing Dies With High QualityNegotiableMOQ: 10 Kilograms
-
High Quality Tungsten Carbide Coal Drilling BitsUS$ 45 - 85MOQ: 5 Kilograms
-
Tungsten Carbide Wire Drawing DiesUS$ 55 - 70MOQ: 5 Kilograms
Specifications
small size blank heading cold dies1.Tungsten carbide forging die
2 .precision and polish
3.fast delivery

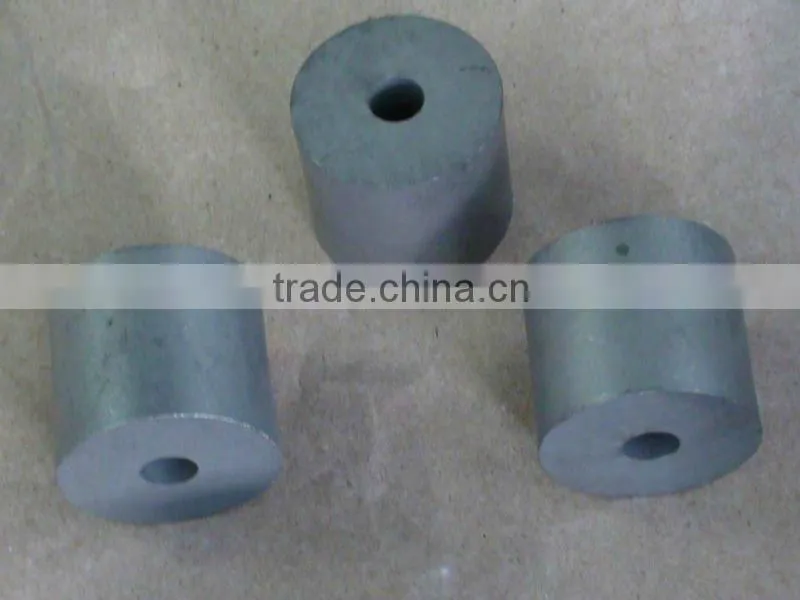

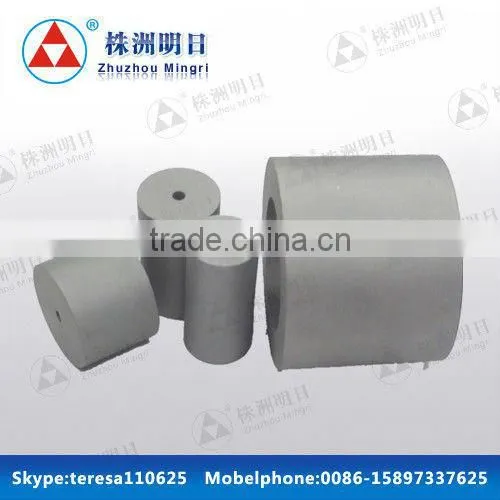

small size blank heading cold dies

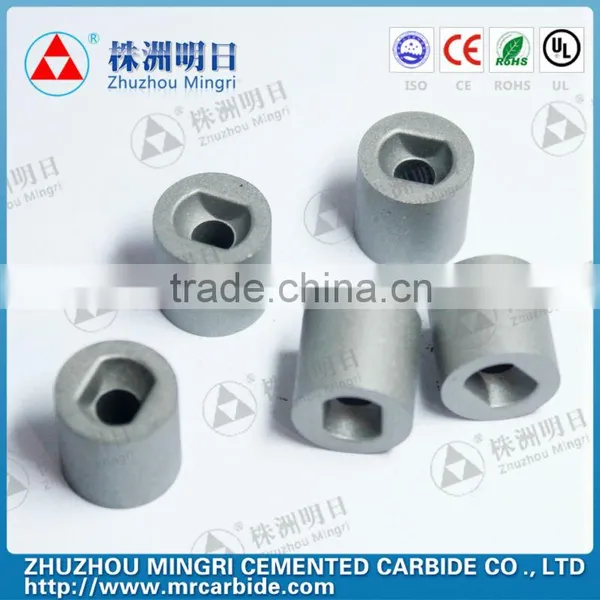

Tungsten carbide cold heading die for cold punching and heading of screws and nuts. High impact resistance .Toughness ,wear resistance,and quality consistency.You are encouraged to use our professional carbide grades for cold heading &punching die nibs. Power metallurgical Compacting dies and other industries.For stable performance and high-cost-effectiveness.They have been proved to be ideal in making
non-ferrous metal , ferrous metal and their alloys.
we can offer different size by customer's design
| TYPE | fundamental dimensions | ||
| d | D | L | |
| BD0101015 | 10 | 1 | 15 |
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211015 | 10 | 2.1 | 15 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291215 | 12 | 2.9 | 15 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| BD0341225 | 12 | 3.4 | 25 |
| BD0341435 | 14 | 3.4 | 35 |
| BD0341637 | 16 | 3.4 | 37 |
| BD0391420 | 14 | 3.9 | 20 |
| BD0391625 | 16 | 3.9 | 25 |
| BD0391630 | 16 | 3.9 | 30 |
| BD0392255 | 22 | 3.9 | 55 |
| BD0431425 | 14 | 4.3 | 25 |
| BD0431640 | 16 | 4.3 | 40 |
| BD0432230 | 22 | 4.3 | 30 |
| BD0471615 | 16 | 4.7 | 15 |
| BD0471840 | 18 | 4.7 | 40 |
| BD0472225 | 22 | 4.7 | 25 |
| BD0642242 | 22 | 6.4 | 42 |
| BD0722255 | 22 | 7.2 | 55 |
| Grade | Performance & application recommended | ||||||||||
| Density | T.R.S | Hardness | |||||||||
| g/cm3 | MPα | HRA | |||||||||
| A | 13.5 | 3000 | 83.5 | Good wea ristance and high bending strength. Primariy for nut forming dies and high impact resistance forging dies. | |||||||
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |||||||
| YM15 | 14.0 | 2500 | 87.5 |
For fabricating drawing dies of stain tubes and rods under High compressibility ratio;punching, stamping ,froging tools under large stress. |
|||||||
| YM20 | 13.5 | 2800 | 85.5 |
For fabricating of stamping dies for watch parts, spring plates of musical instruments, batters jars, small sized steel balls, screws, screw caps. |
|||||||
| ML32 | 13.9 | 2750 | 85.5 | Impact resistance forging dies | |||||||
| ML35 | 13.7 | 2800 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |||||||
| ML40 | 13.5 | 2850 | 83.5 | Dies for resistant or impact resistant application. | |||||||
| ML50 | 13.3 | 2900 | 83.0 | Nut forming dies and high impact resistance forging dies. | |||||||
| ML60 | 13.1 | 2950 | 82.5 | Stainless bolt header dies and rollers. | |||||||
| ML90 | 13.3 | 3200 | 82.0 | Screw cap forming dies with high impact resistance ( Highest impact resistance forging dies). | |||||||
| Other grades may be offered by customers' requirements | |||||||||||
Grade and appliacation
grade |
Equal to |
Density |
TRS (N/mm2) |
Harness |
USE |
YG11C |
K40 |
14.35 |
2200 |
87.6 |
Forming or stamping dies for metal powders and nonmetal powders. |
YG15 |
K40 |
14.0 |
2300 |
86.5 |
For fabricating drawing dies of steel tubes and rods under high compressibility ratio;punchingstampingforging tools under large stress. |
YG15C |
K40 |
14.0 |
2500 |
85 |
|
YG18C |
K40 |
13.7 |
2700 |
84.5 |
Impact resistance forging dies,hot-press forging dies and rollers. |
YG20 |
K40 |
13.5 |
2400 |
4 |
For various dies made by cold forging,cold stamping and hot forging. |
|
YG20C
|
K40 |
13.4 |
2600 |
81-82 |
Dies for wear resistant or impact resistant application |
Tight Packing

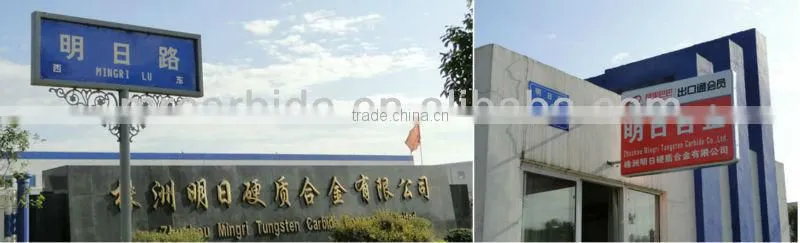

we are manufacturer, not just trade
welcome to visit our factory ,
address No:88 Mingri Road,Liyu Industrail Area,Tianyuan District,Zhuzhou City,Hunan Province,China.
Main Products
Certification and reputation
We are Zhuzhou Mingri Cemented Carbide Co,.Ltd fouce on producing high quality cemented carbide products for 13 years.
our products have good reputation all over the world
please feel free to contact with me Vicky (Jade guo).
Tel:+86 15773304321
Skype ID:jade.yu919
