Help CenterCarbide Drawing Dies,sintered Carbide Wire Drawing Dies
Related Products
-
Small Size Blank Heading Cold DiesUS$ 57 - 80MOQ: 2 Kilograms -
Tungsten Carbide StripsNegotiableMOQ: 1 Kilogram
-
Tungsten Carbide Wire Drawing DieNegotiableMOQ: 1 Kilogram
-
Tungsten Carbide Wire Drawing Dies With High QualityNegotiableMOQ: 10 Kilograms
-
High Quality Tungsten Carbide Coal Drilling BitsUS$ 45 - 85MOQ: 5 Kilograms
Specifications
carbide drawing dies1. High wear &corrosion &abrasive resistance.
2.Advanced equipment

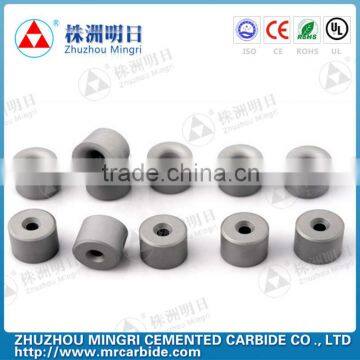

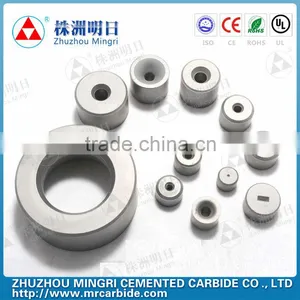

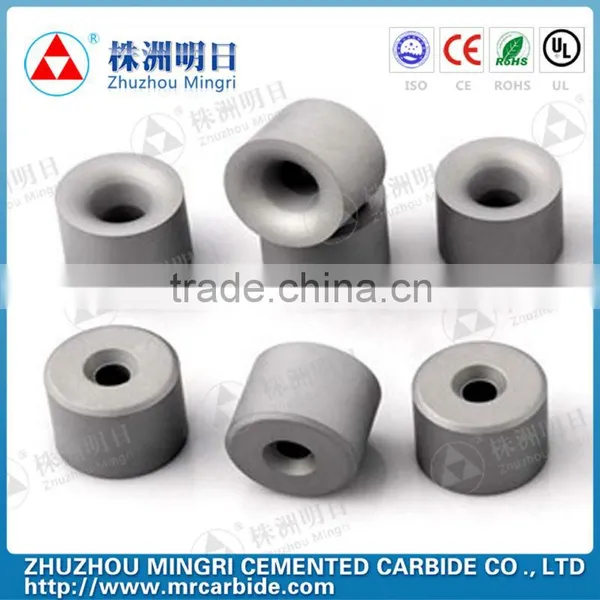

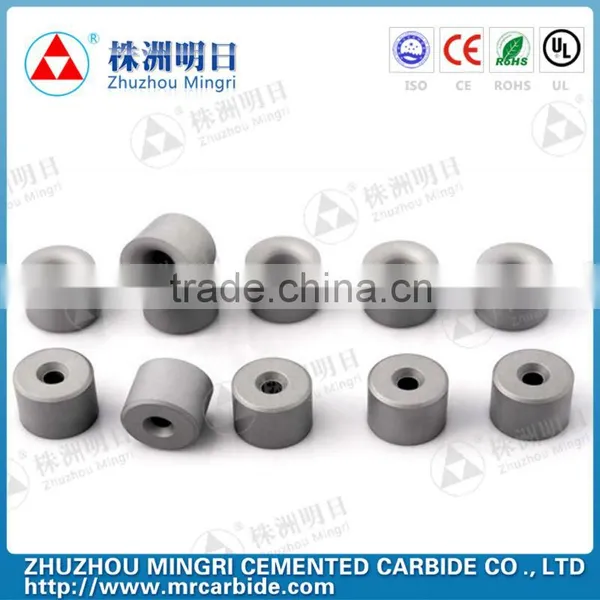

carbide drawing die,sintered carbide wire drawing dies
1. High wear &corrosion &abrasive resistance.
2.Advanced equipment
3.ISO9001:2008,ISO9001:14001
1.Carbide :
YG3X YG6X YG6A YG3 YG6 YG8 YG11 YG15 YG18 YG20
When usig the carbidedrawig dies , please choose the grade . It is very important because each grade has its properties for different applications.
2. types :
1. Dies for drawing metal wires
2. Dies for rods.
3. Dies for tubes.
4. Dies for plugs.
5.No-standard drawing dies
6.finished and semi-finished available.
| Carbide grade for drawing dies | ||||
| Grade | Density | T.R.S MPa | Hardness HRA | Performance & application recommended |
| YM11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YM15 | 14 | 2800 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| YM20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| ML32 | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| ML35 | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| ML40 | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| ML50 | 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies. |
| ML60 | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
| TYPE | fundamental dimensions | ||
| d | D | L | |
| BD0101015 | 10 | 1 | 15 |
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211015 | 10 | 2.1 | 15 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291215 | 12 | 2.9 | 15 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| BD0341225 | 12 | 3.4 | 25 |
| BD0341435 | 14 | 3.4 | 35 |
| BD0341637 | 16 | 3.4 | 37 |
| BD0391420 | 14 | 3.9 | 20 |
| BD0391625 | 16 | 3.9 | 25 |
| BD0391630 | 16 | 3.9 | 30 |
| BD0392255 | 22 | 3.9 | 55 |
| BD0431425 | 14 | 4.3 | 25 |
| BD0431640 | 16 | 4.3 | 40 |
| BD0432230 | 22 | 4.3 | 30 |
| BD0471615 | 16 | 4.7 | 15 |
| BD0471840 | 18 | 4.7 | 40 |
| BD0472225 | 22 | 4.7 | 25 |
| BD0642242 | 22 | 6.4 | 42 |
| BD0722255 | 22 | 7.2 | 55 |
Located in Liyu Industrial Area, Zhuzhou City, Tianyuan District, Hunan Province, Zhuzhou Mingri Cemented Carbide Co., Ltd was established in May of 2001 with the investment of RMB 40 million. We own up-to-date production line, advanced equipment, lots of technicians. We have passed ISO 9001:2008,ISO9001:14001 . And we have been always trying our best to provide our customers with high quality, best price and satisfactory services.

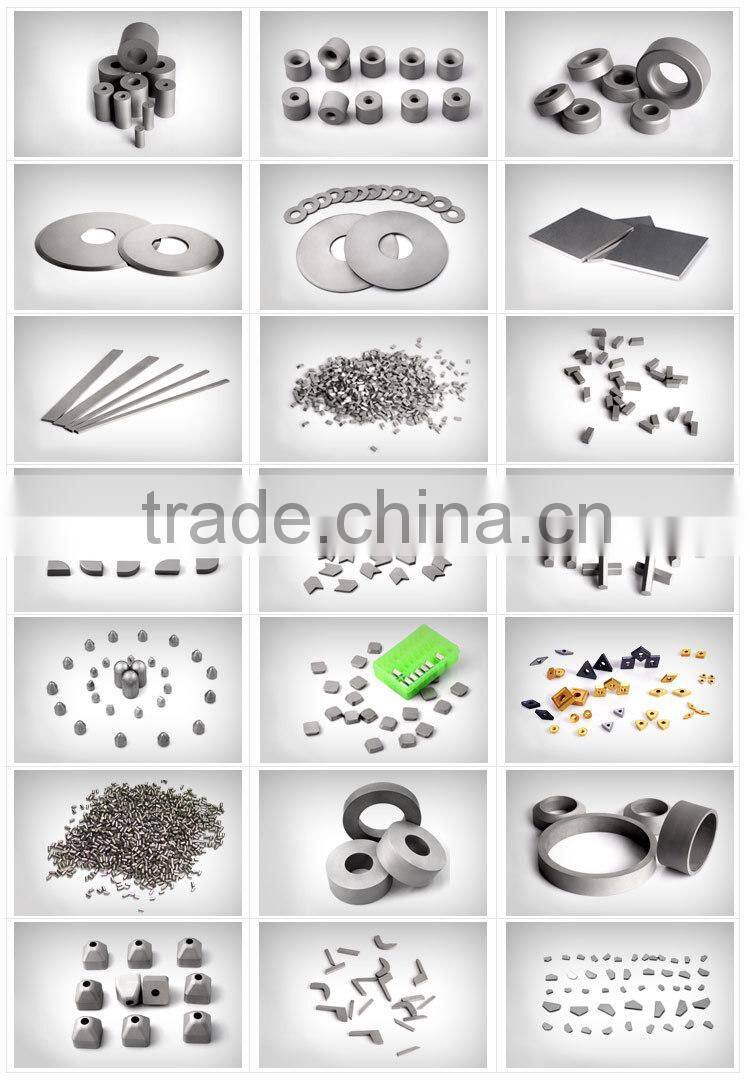

We specialize in series of tungsten carbide products, such as cold forging die cores, brazed tips, disc cutters, plates and boards, saw tips, round rods, rock drilling bits and buttons, milling tools, geological exploration drill tools and so on. Our products are exported to UK, European, Japan, Taiwan and South-east Asia etc.
