Brief introduction

Electromagnetic vibrating feeder is one kind of linear direction feeding equipment. It highly praised for its feature of smooth vibrating, reliable in operation, long service life and suitable for feeding.And it's widely used in the powder production line specially linked with raymond mill and wet pan mill.

Working Principle

When the power is on, the electric current passes the electric coils, which creates a magnetic field. The magnetic force changes into vibrating force, which forces the transmission trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the transmission trough body, which causes the forward motion and transmission of the materials. Through control the electrical input to adjust the feeding fast or slow.

Features

(1) Small cubage, light weight, simple structure, easily fixed, no movement assembly, no lubrication, maintain easily;

(2)Electromagnetic vibrating feeder uses up less electric energy because of the engine vibrating resonance principle and double plastid works at the low critical nearly resonance;
(3) The feeding size is higher accuracy because it can change and start or off material flow instantaneously.

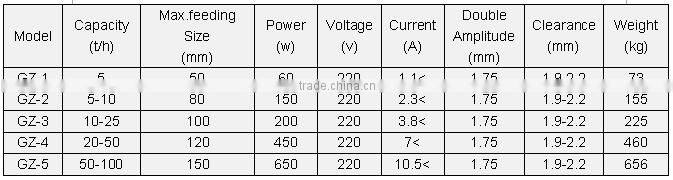

Main technical data

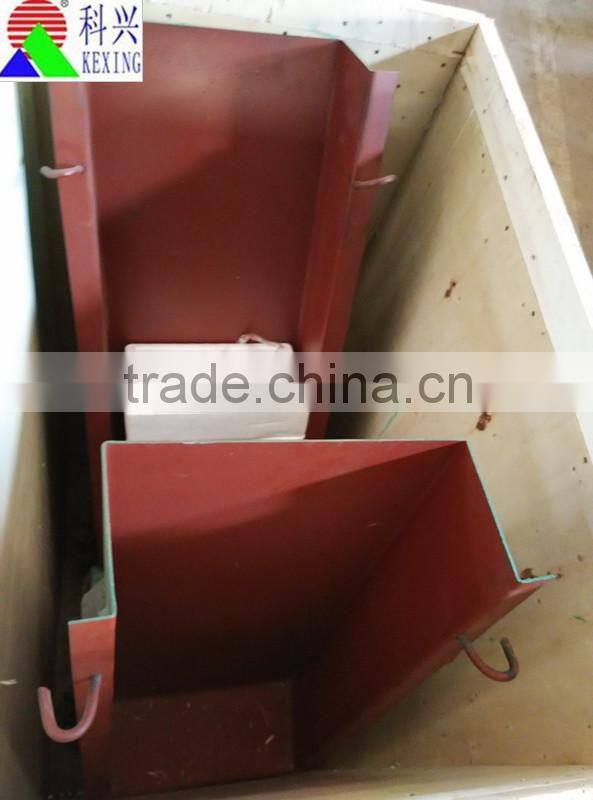

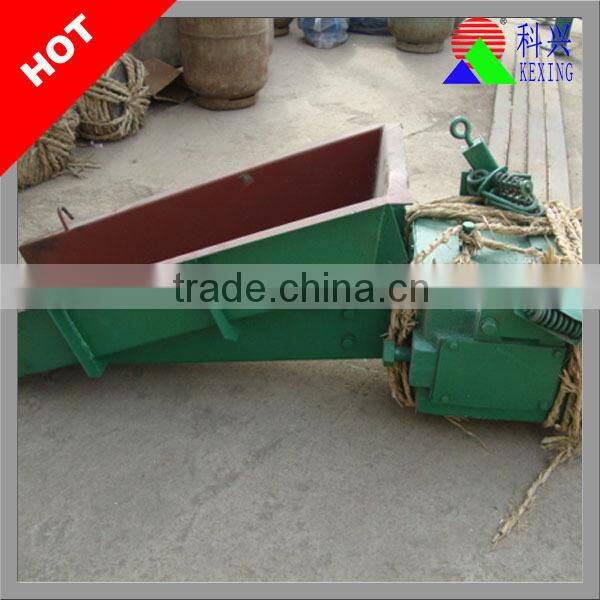

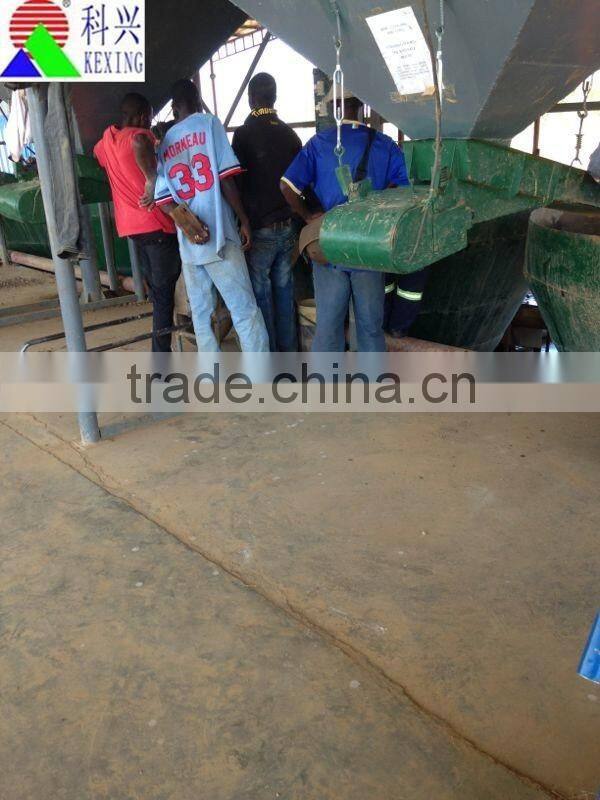

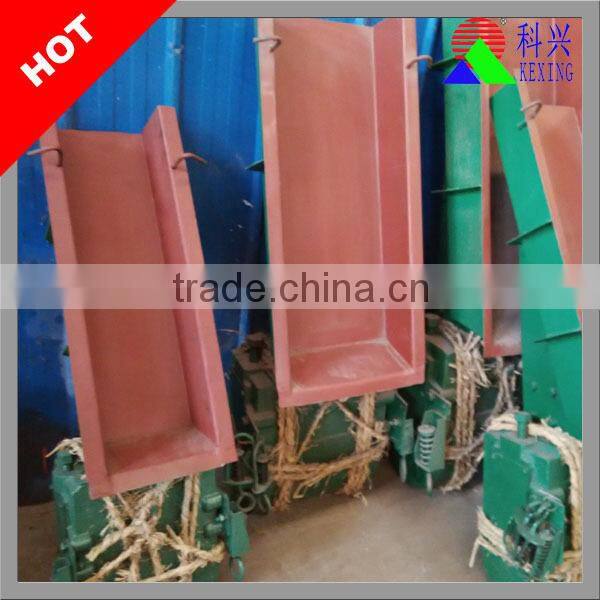

More electromagnetic vibrating feeder photos

Our Services

Pre-sale
   (1) According to customer's special requirements, design and manufacture of products;
   (2) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the  best processes and programs.

Sale

  (1) product acceptance;
  (2) to help customers develop construction programs.

After-sale

  (1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation;
  (2) equipment installation;
  (3) complete sets of equipment installed.

Why Choose Us?
1. The machine in Kexing is actually good quality with preferential price.
                * Good quality management system;
                * Careful producing process and standard technical;
                * Large output and high efficiency in the processing of production.
2. The professional and customer-oriented services.
              * We are manufacturer and our factory is located in Zhengzhou and we have many agents in many countries;
              * Our professional can help you address import issues, commodity visiting and many details for the goods.
