Specifications
High Effective Fine Rock Crusher Supplier1.uniform particle-type
2.large capacity
3.long life hammerhead
4.small matchin

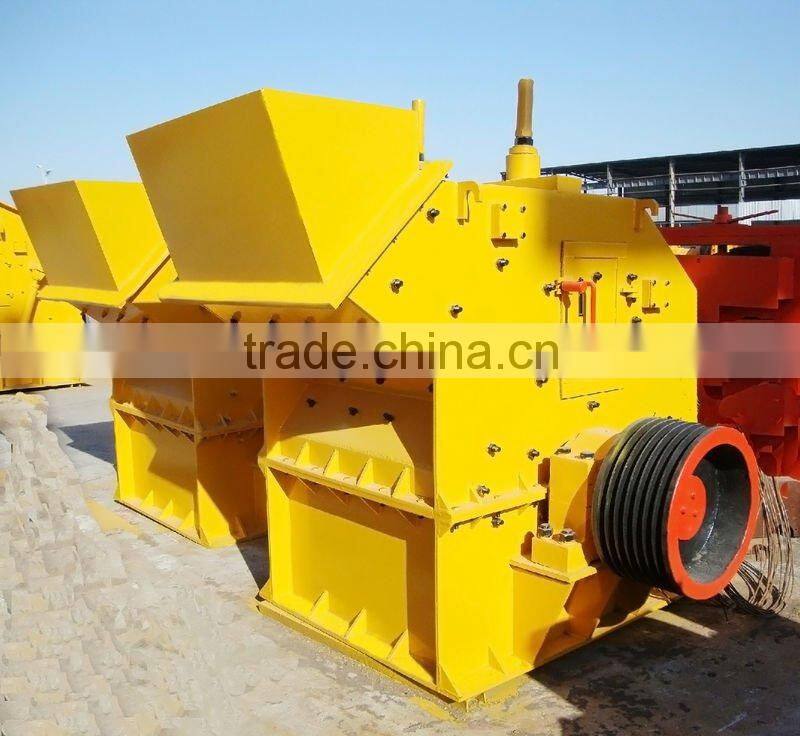

High Effective Fine Rock Crusher Supplier
PCX type highefficiency fine crusher absorb advanced technology in china and abroad, combine with the specific working conditions of relevant industry, develop a new generation of counter-attack high-efficiency fine crusher.
Application of fine crusher:
Counterattack high-performance fine crusher used for fine crushing a variety of medium hardness solid materials.
In industry field, fine crusher can crush limestone, gypsum, clinker, mixed materials, may also be used crushing calcium phosphateminor, dolomite, perlite ore and so on. Can be widely used in building materials, fertilizers, mining and industrial sectors, such as refractories. Counter-attack high-efficiency fine crusher are the new generation of energy-saving chronology.
The main features of fine crusher:
(1). Small feed-out granularity
(2). Uniform particle-type uniform
(3). Large capacity
(4). Long life hammerhead
(5). Small matching power
(6). Change 3 grade crushing to 2 grade crushing
(7). Process simplification
(8). Simple structure
(9). Easy maintenance
(10). Smooth running characteristics
Main Technical Parameters of the fine crusher
Type | feedin mouth size (mm) | Max feed-in (mm) | Feed-out size(mm) | Feed-out Grate slit width adjustment (mm) | Capacity(t/h) | Power | ||
Cement clinker | Limestone | Glass sand | ||||||
800×400 | 400×185 | 120 | ≤5 | 5-20 | 20-30 | 30-45 | 35-45 | 22-37 |
800×600 | 500×250 | 180 | ≤5 | 5-20 | 35-40 | 40-55 | 45-55 | 37-45 |
800×800 | 550×330 | 180 | ≤5 | 5-20 | 35-45 | 60-65 | 55-65 | 37-45 |
1010×1010 | 1000×350 | 180 | ≤5 | 5-20 | 45-55 | 60-75 | 65-75 | 45-55 |
1200×1000 | 1200×400 | 180 | ≤5 | 5-20 | 80-110 | 80-100 | 80-100 | 90-110 |
1200×1200 | 1200×450 | 180 | ≤5 | 5-20 | 100-110 | 90-100 | 90-120 | 110-132 |
1400×1400 | 1500×500 | 190 | ≤5 | 5-20 | 100-150 | 100-150 | 120-150 | 160 |
1600×1600 | 1600×550 | 190 | ≤5 | 5-20 | 170-210 | 190-250 | 190-250 | 250 |
1800×1800 | 1800×800 | 190 | ≤5 | 5-20 | 250-270 | 280-310 | 280-310 | 280 |
