Specifications
New Type Granite hard Crusher1.low production cost
2.stable performance
3.firm structure
4.high output

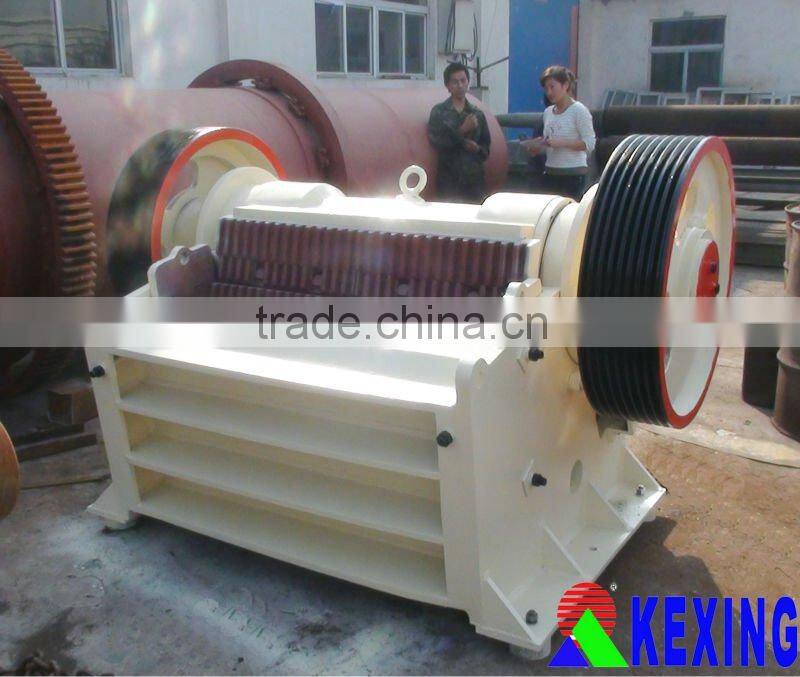

New Type Granite hard Crusher
Granite Crusher Application:
Granite Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The granite crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.
New Type Granite hard Crusher
Working Principle of Granite Crusher :
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
New Type Granite hard Crusher
Technical Data of Granite Crusher :
Model | feed inlet Dimension | Max. Feeding Size (mm) | Capacity (t/h) | Discharge Size (mm) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
PE-150×250 | 150×250 | 125 | 1-5 | 10-40 | 5.5 | 875×758×850 | 0.81 |
PE-150×750 | 150×750 | 125 | 5-16 | 10-40 | 15 | 1200×1530×1060 | 3.8 |
PE-250×400 | 250×400 | 210 | 5-20 | 20-60 | 15 | 1450×1315×1296 | 2.8 |
PE-400×600 | 400×600 | 340 | 16-65 | 40-100 | 30 | 1565×1732×1586 | 6.5 |
PE-500×750 | 500×750 | 425 | 45-100 | 50-100 | 55 | 1890×1918×1870 | 10.1 |
PE-600×900 | 600×900 | 500 | 50-120 | 65-160 | 55-75 | 2305×1840×2298 | 15.5 |
PE-750×1060 | 750×1060 | 630 | 52-180 | 80-140 | 110 | 2450×2472×2840 | 28 |
PE-900×1200 | 900×1200 | 750 | 140-260 | 95-165 | 110 | 3335×3182×3025 | 50 |
PE-1000×1200 | 1000×1200 | 850 | 315-342 | 195-265 | 110 | 3435×3182×3025 | 57 |
PE-1200×1500 | 1200×1500 | 1020 | 400-800 | 150-300 | 160 | 4200×3732×3843 | 100.9 |
PE-250×750 | 250×750 | 210 | 15-30 | 25-60 | 22 | 1667×1545×1020 | 4.9 |
PE-250×1000 | 250×1000 | 210 | 16-52 | 25-60 | 30-37 | 1530×1992×1380 | 6.5 |
PE-250×1200 | 250×1200 | 210 | 20-60 | 25-60 | 37 | 1900×2192×1430 | 7.7 |
PE-300×1300 | 300×1300 | 250 | 20-90 | 25-105 | 75 | 2720×1950×1600 | 11 |
Notice: Any change of granite crusher technical data will not be advised additionally.
