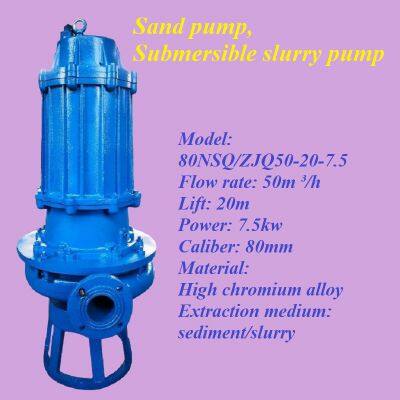

Sand Pump, Submersible Slurry Pump

Sand pump, submersible slurry pump

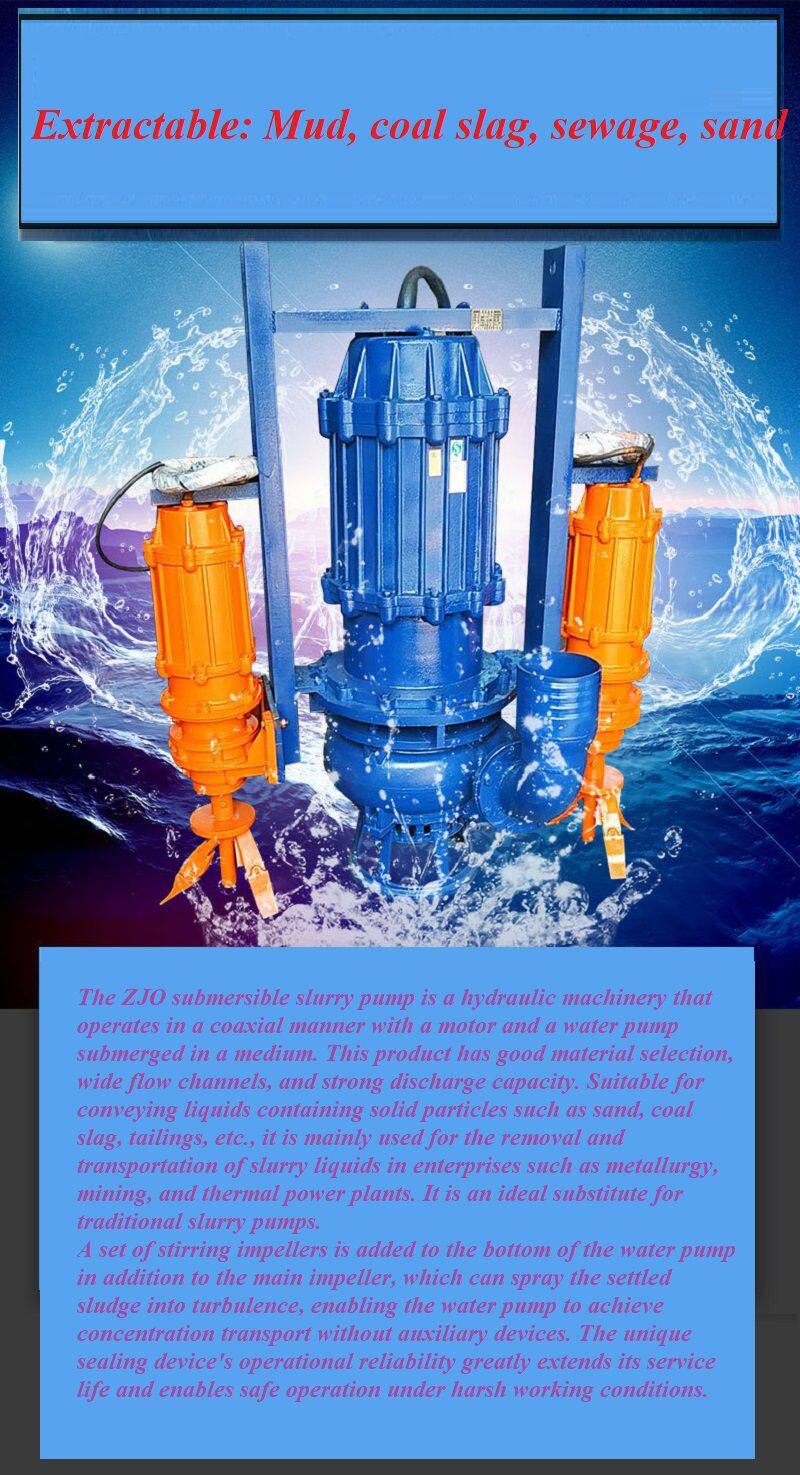

Extractable: Mud, coal slag, sewage, sand,

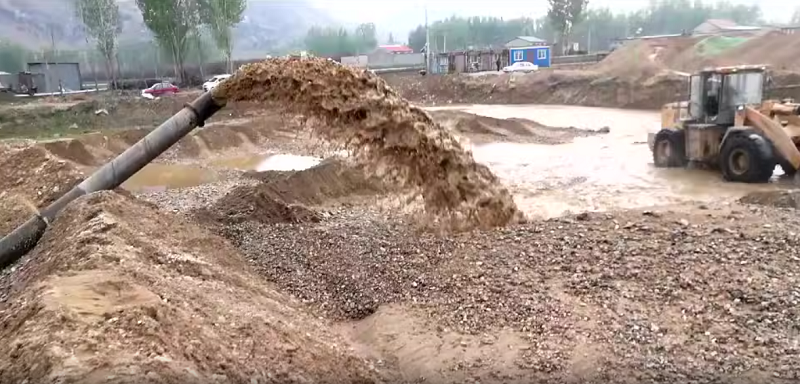

Widely used for sand pumping and sewage discharge, river sand pumping, various types of sewage discharge, factory wastewater, easily solving sewage problems.

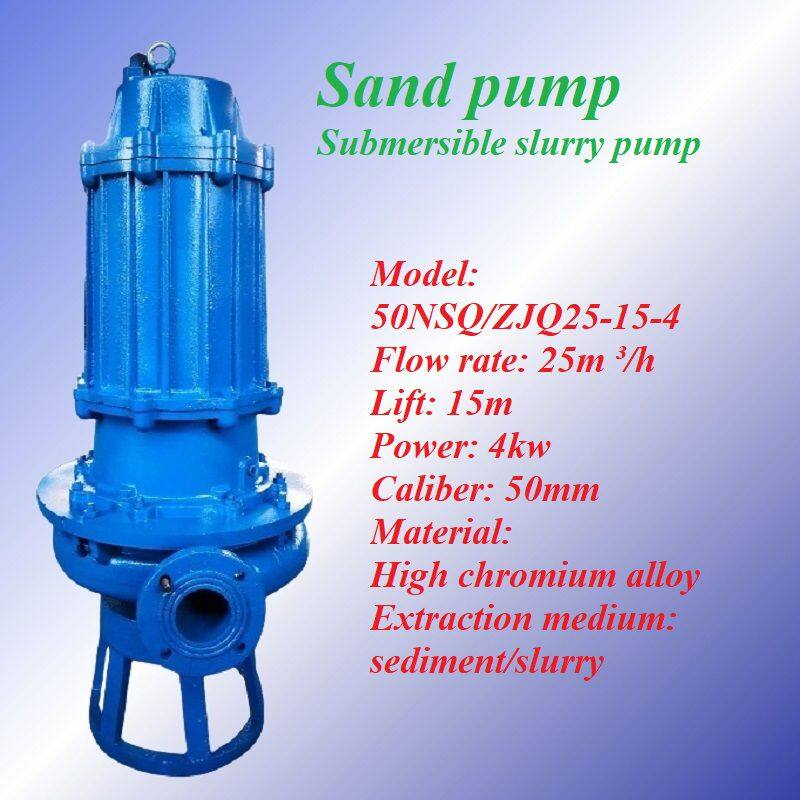

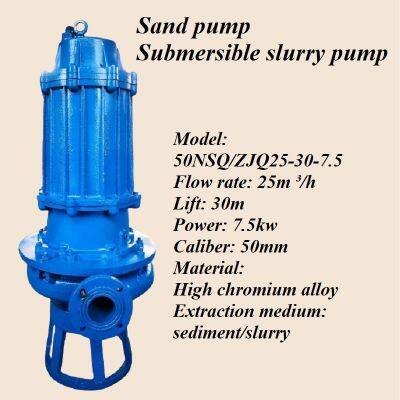

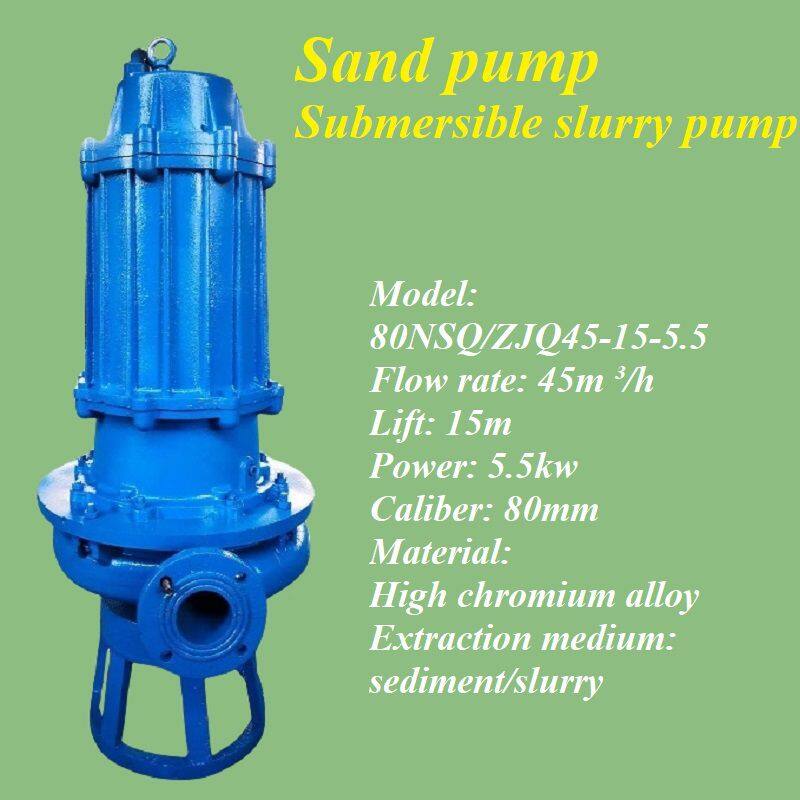

Flow rate: 25/40/50m ³/h,

Head, 14/15/20/30m,

Power: 4/5.5/7.5 kW,

Caliber: 50/80mm,

Material: High chromium alloy,

Extraction medium: sediment/slurry.

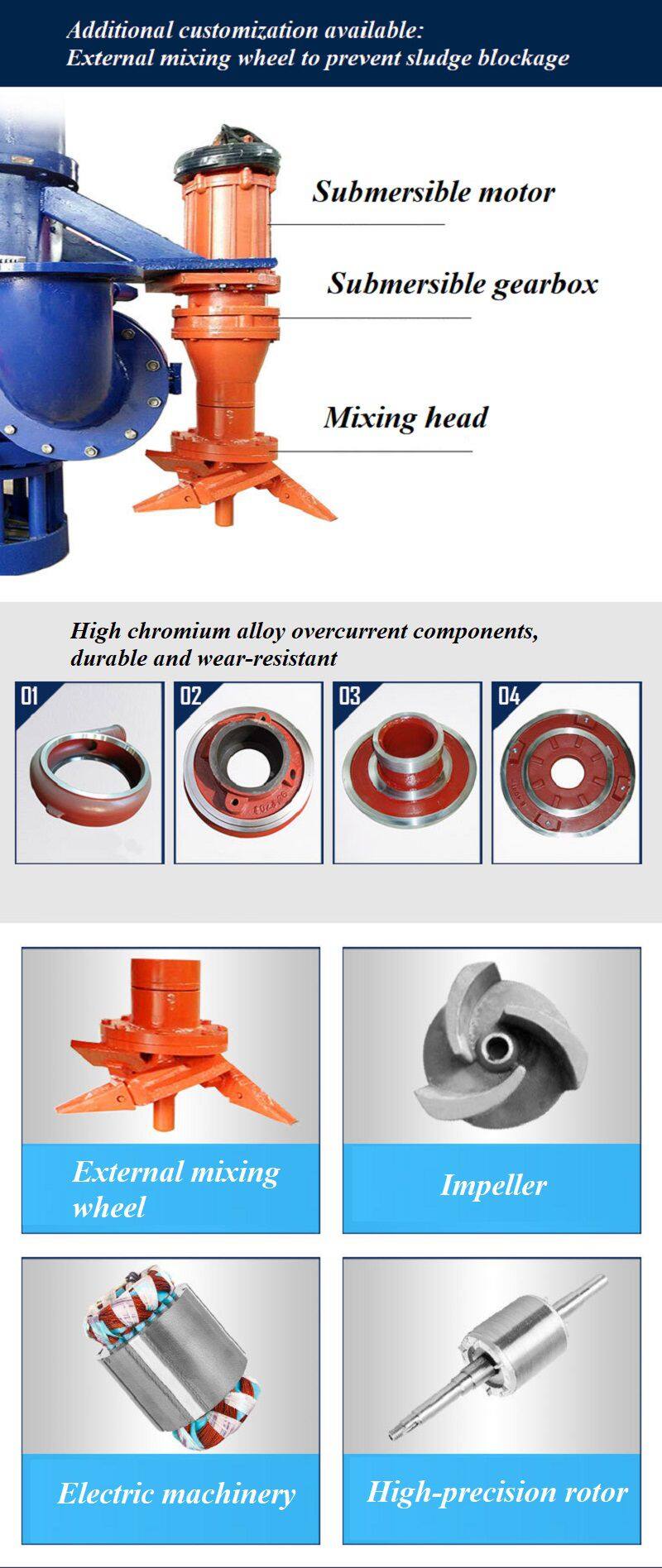

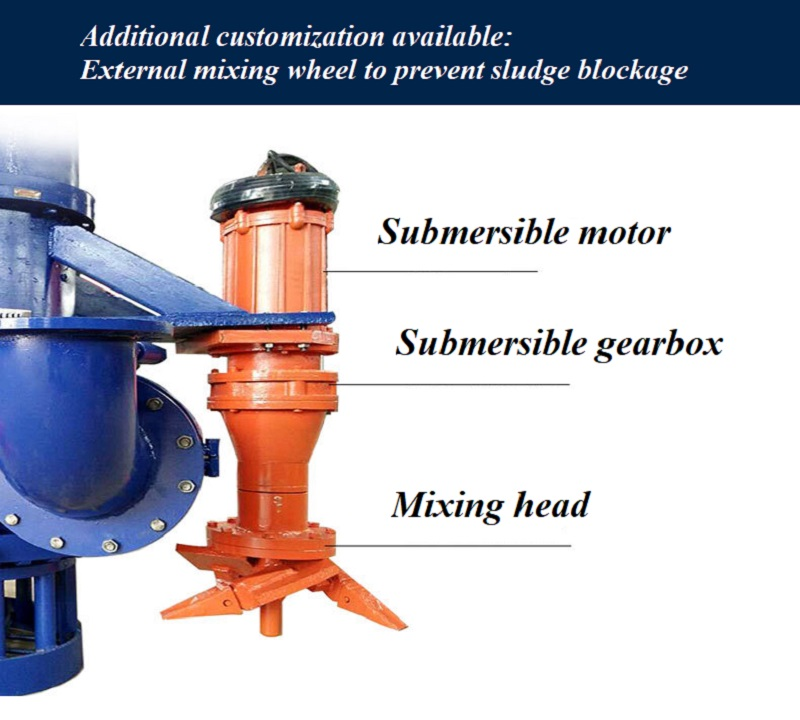

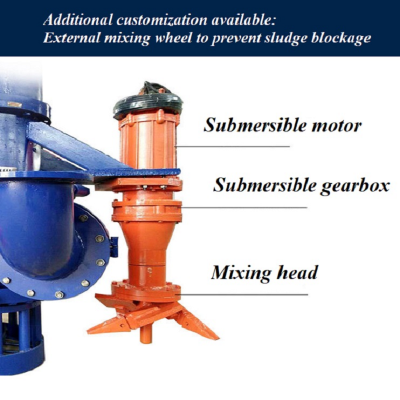

Additional customization available: external mixing wheel to prevent sludge blockage.

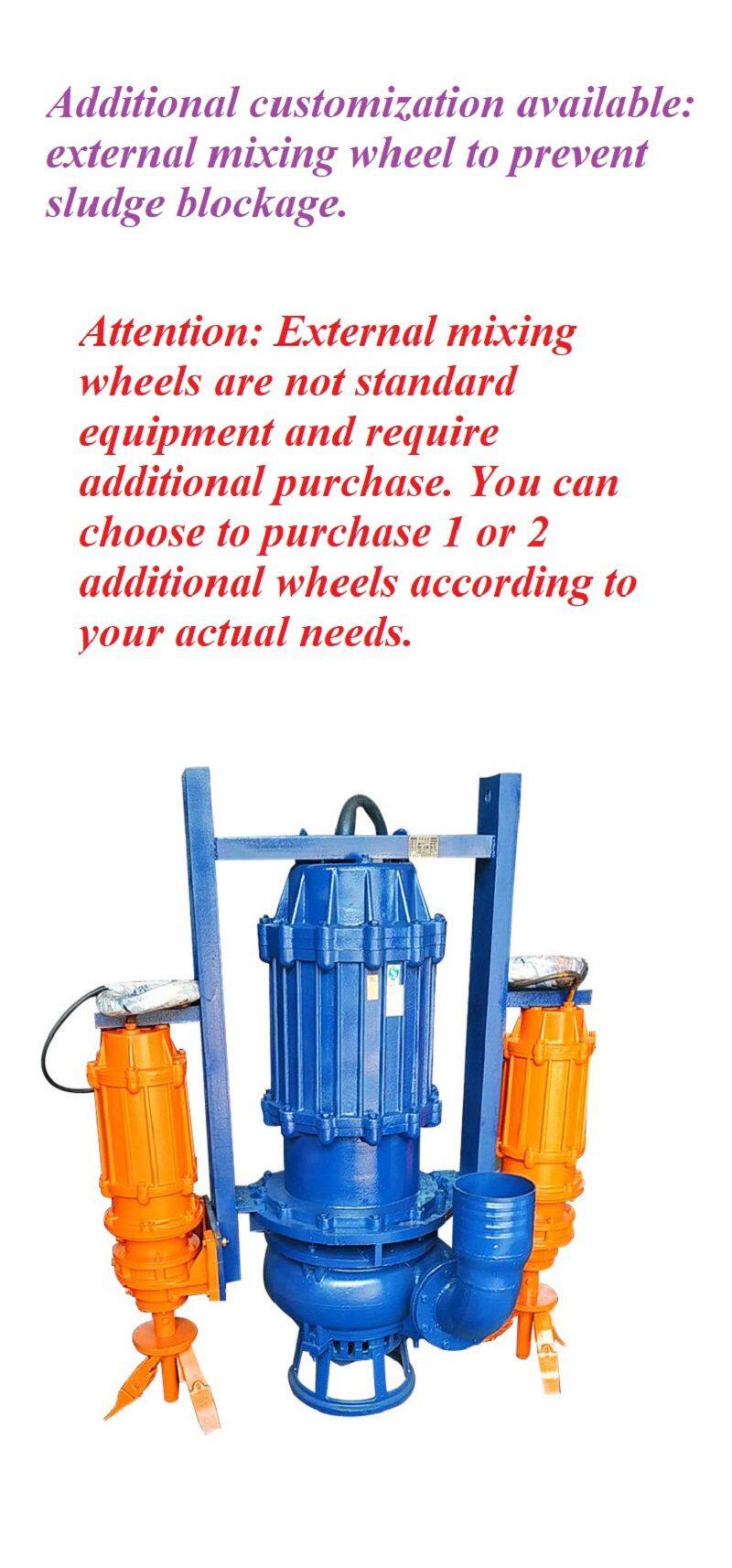

Attention: External mixing wheels are not standard equipment and require additional purchase. You can choose to purchase 1 or 2 additional wheels according to your actual needs.

Product Overview

The ZJO submersible slurry pump is a hydraulic machinery that operates in a coaxial manner with a motor and a water pump submerged in a medium. This product has good material selection, wide flow channels, and strong discharge capacity. Suitable for conveying liquids containing solid particles such as sand, coal slag, tailings, etc., it is mainly used for the removal and transportation of slurry liquids in enterprises such as metallurgy, mining, and thermal power plants. It is an ideal substitute for traditional slurry pumps.

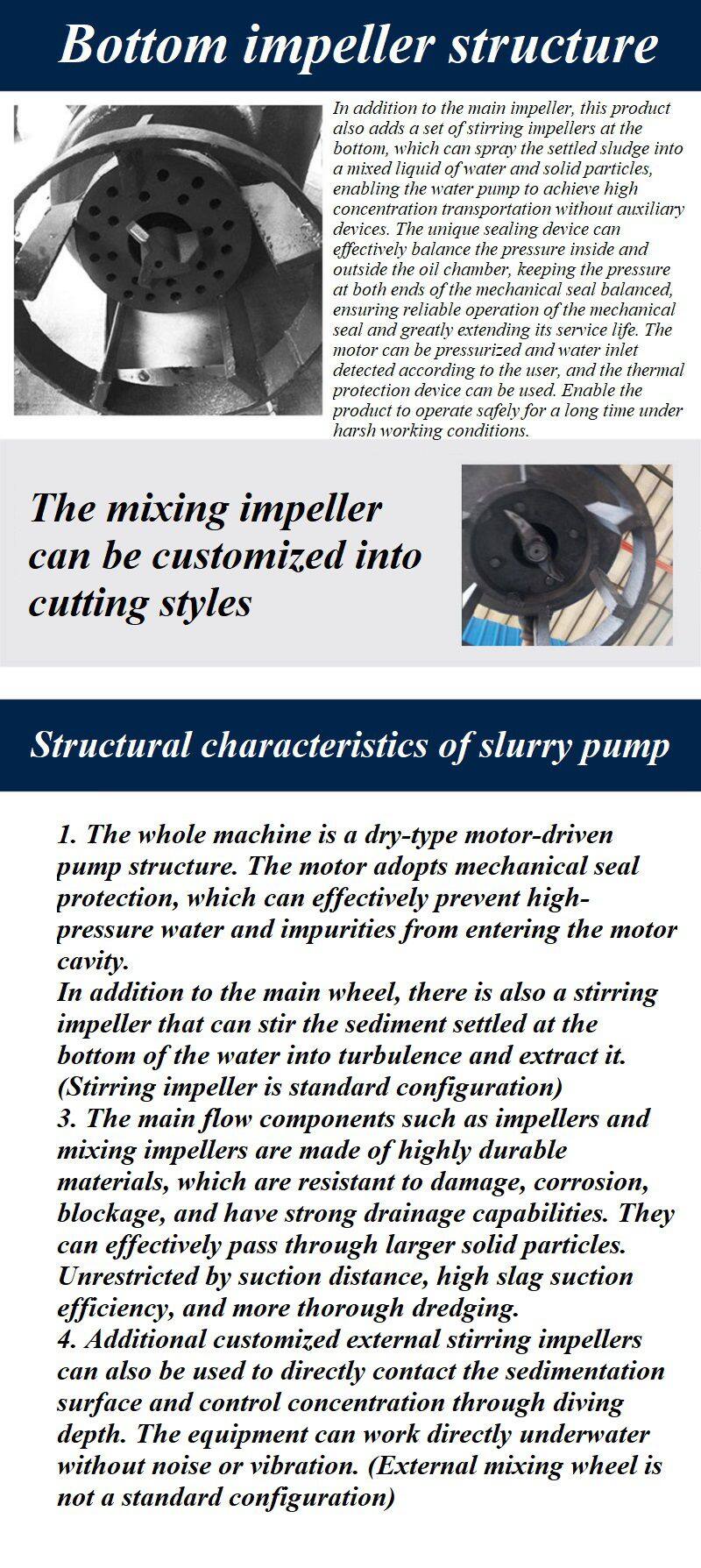

A set of stirring impellers is added to the bottom of the water pump in addition to the main impeller, which can spray the settled sludge into turbulence, enabling the water pump to achieve concentration transport without auxiliary devices. The unique sealing device's operational reliability greatly extends its service life and enables safe operation under harsh working conditions.
