Specifications
2012 New Type Limestone Graded Crusher1.Compact Structure, Extremely rugged
2.Long Operatin Life
3.ISO9001:2000 & CE

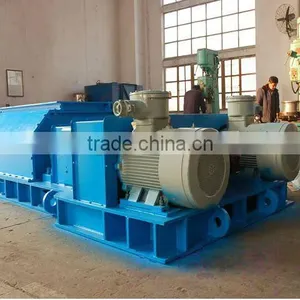

2012 New Type Limestone Graded Crusher
Graded Crusher is a new kind of graded crusher, it is different from traditional toothed rooler crusher which crushematerials by impact and squashing, it uses the combined action of cutting and stretching to crush things. As adopting the slow speed and speial shape, it has few exceed crushing.
2012 New Type Limestone Graded Crusher
Features of Limestone Graded Crusher:
FP seriers mightiness graded crusher has the features of intensity crushing, big processing capacity and has automatic control device which can be easily took into central control. The max. feeding size of the raw material is 600mm, sometimes can be feed the material with 800mm. The output size is 30mm,50mm, 80, 100mm, etc.
If the system is adopted to eliminate iron and wood and effective measures, Without pre-screening the raw coal and can be directly broken hand-selected,
This simplifies processing plant reduces the plant height, decreasing the coal preparation plant, the investment of power plant construction and production costs.
The product is mainly used in the intermediate crush of mine, electricity, metallurgy, and chemical engineering industry.
2012 New Type Limestone Graded Crusher
Main Technical Parameter
Technical Parameter of FP50AS Coal Crusher | |
|
Model Items |
FP50AS |
Distance of roll center (mm) |
500 |
Feed Opening Size (mm) |
670×1130 |
Crushing strength (mpa) |
≤160 |
Feeding size (mm) |
≤200 |
Discharging size (mm) |
40-50 |
Capacity (t/h) |
60 ~90 |
Motor power (kw) |
45~55 |
Motor Voltage (v) |
380/660 |
Dimension L*W*H (mm) |
2268×2832×1060 |
Weight (t) |
8.6 |
CIF Hai Phone Port Price (USD) |
$61,639.00 |
