Motorized linear stage

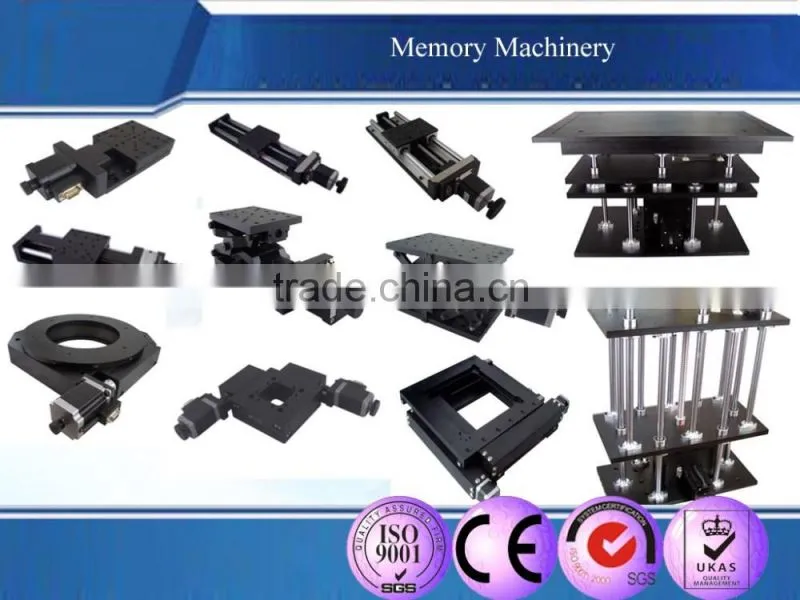

Motorized Linear Moving Stages (Most Popular Type)
Model Number |
03DP50 |
03DP100 |
03DP150 |
03DP200 |
03DP300 |
03DP400 |
03DP500 |
||||||
Travel Range |
50mm |
100mm |
150mm |
200mm |
300mm |
400mm |
500mm |
||||||
Bearing |
High Precise Ball Screw with 4mm leading |
High Precise Ball Screw with 5mm leading |
|||||||||||
Travel Guide |
Square rail and sliding blocks |
||||||||||||
Stepper Motor |
1.8° 2-phase STP-57D3016 stepper motor (servo optional) |
||||||||||||
Material- Finish |
Aluminum Alloy Black-Anodized |
||||||||||||
Max Load Capacity |
30kg horizontal/ 15kg vertical |
40kg horizontal/ 15kg vertical |
50kg horizontal/ 15kg vertical |
||||||||||
Weight |
4.0kg |
5.5kg |
5.9kg |
6.3kg |
7.0kg |
12.0kg |
15.0kg |
||||||
Resolution |
20μm/pulse, non-ms driver 1μm /pulse, 20ms driver |
20μm /pulse, non-ms driver 1.25μm /pulse, 20ms driver |
|||||||||||
Max Speed |
40mm/sec |
50mm/sec |
|||||||||||
Repeatability |
5μm |
||||||||||||
Absolute Accuracy |
8μm |
||||||||||||
Straightness |
5μm |
6μm |
8μm |
||||||||||
Degree of Parallelization |
10μm |
15μm |
20μm |
||||||||||
Pitching |
25” |
50” |
60” |
||||||||||
Yawing |
20” |
25” |
30” |
||||||||||
